- VT600A (VENTURE 600) 8CW1 1997
TRACK DRIVE 2

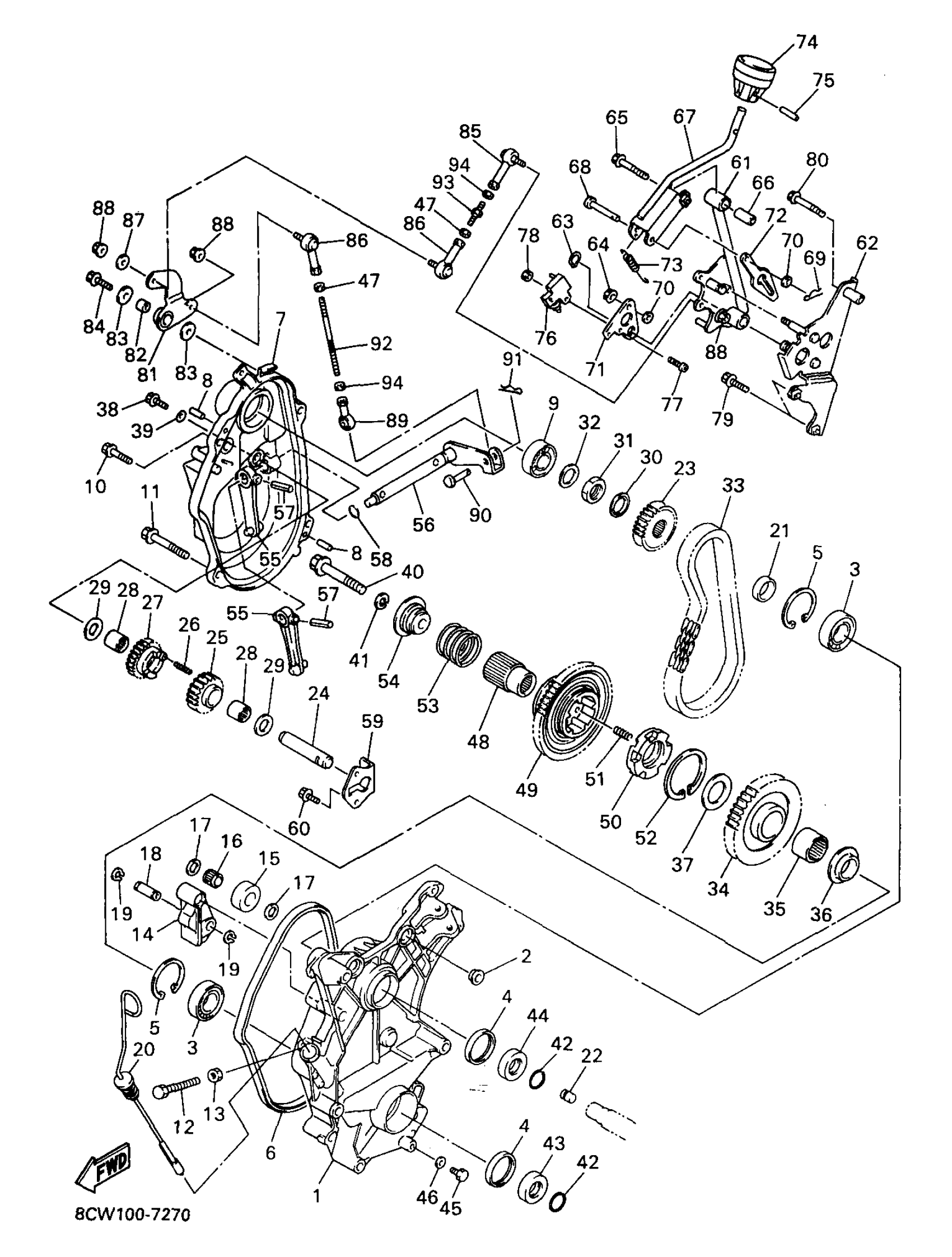

Yamaha VT600A (VENTURE 600) 8CW1 1997 TRACK DRIVE 2 Diagram
#
1
HOUSING, CHAIN
8CR-47541-01-00
$393.99
2
NUT(8CJ)
90179-10679-00
Unavailable
3
BEARING (80N)
93306-20570-00
Unavailable
4
OIL SEAL (36R)
93102-35318-00
$25.99
5
CIRCLIP(26H)
99009-52500-00
$12.49
6
RING, HOUSING/GASKET
8CR-47558-02-00
$16.49
7
. CAP, HOUSING
8CW-47543-02-00
Unavailable
8
PIN, DOWEL (168)
93606-20044-00
$3.55
9
BEARING(4ED)
93306-20468-00
$43.99
10
BOLT, FLANGE(6TA)
95817-08030-00
$8.49
11
BOLT, FLANGE
95817-10060-00
$7.49
12
BOLT, HEXAGON (8F3)
90101-10357-00
Unavailable
13
NUT(6TD)
95337-10600-00
$9.49
14
HOLDER
8CR-47613-00-00
Unavailable
15
WHEEL
8CR-47612-00-00
Unavailable
16
BRG,CYL-CAL ROLLER 11G KY
93315-21227-00
Unavailable
17
WASHER, PLATE (5N6)
90201-127E1-00
Unavailable
18
PIN(8CJ)
90249-12227-00
Unavailable
19
CIRCLIP(10Y)
99009-12400-00
Unavailable
20
LEVEL, OIL
8CR-47546-00-00
Unavailable
21
COLLAR
90387-2508D-00
Unavailable
22
PLUG, OIL
82M-17699-00-00
Unavailable
23
SPROCKET, CHAIN DRIVE (20T)
89J-17682-00-00
Unavailable
23
SPROCKET, CHAIN DRIVE (21T)
89J-17682-10-00
Unavailable
23
SPROCKET, CHAIN DRIVE
89J-17682-20-00
Unavailable
23
SPROCKET, CHAIN DRIVE
89J-17682-30-00
Unavailable
23
SPROCKET, CHAIN DRIVE (18T)
89J-17682-80-00
Unavailable
23
SPROCKET, CHAIN DRIVE (19T)
89J-17682-91-00
Unavailable
24
SHAFT, 1
8CW-1761A-00-00
Unavailable
25
SPROCKET, DRIVE
8CW-17692-00-00
Unavailable
26
SPRING COMPRESSION278185450000
90501-06022-00
Unavailable
27
REVERSE GEAR SUB-ASSY 1 (RGEAR
8CW-W1714-00-00
Unavailable
28
BEARING, CYLINDRICAL(8DA)
93317-21578-00
Unavailable
29
WASHER PLATE (3L6)
90201-16245-00
Unavailable
30
WASHER 810475810000
90208-22001-00
Unavailable
31
NUT (821-47579-00)
90170-22094-00
Unavailable
32
WASHER, PLATE(1KE)
90201-207J5-00
Unavailable
33
CHAIN (68L)
94860-02068-00
Unavailable
33
CHAIN (70L)
94860-02070-00
Unavailable
34
. SPROCKET, CHAIN DRIVEN (39T)
8CW-47587-90-00
Unavailable
35
BEARING, CYLINDRICAL(8DA)
93317-33179-00
Unavailable
36
COLLAR(8DA)
90387-2008G-00
Unavailable
37
WASHER, PLATE(8DA)
90201-320S3-00
Unavailable
38
BOLT, FLANGE
95817-06016-00
Unavailable
39
WASHER, SEAL (7G5)
90210-06006-00
Unavailable
40
BOLT, FLANGE(7LU)
95817-10070-00
Unavailable
41
WASHER(6TA)
92907-10100-00
Unavailable
42
O-RING (169)
93210-25071-00
Unavailable
43
COLLAR(8CJ)
90387-2508C-00
Unavailable
44
COLLAR
90387-2511J-00
Unavailable
45
BOLT(8BC)
97007-08014-00
Unavailable
46
WASHER, SEAL(8AB)
90210-08017-00
Unavailable
47
NUT (2H9)
90170-06228-00
Unavailable
48
JOURNAL 1
8CW-47571-00-00
Unavailable
49
GEAR, REVERSE WHEEL 1
8CW-17243-00-00
Unavailable
50
DOG, TRANSMISSION SHIFT
8CW-17492-00-00
Unavailable
51
SPRING, COMPRESSION(8DA)
90501-066J5-00
Unavailable
52
CIRCLIP(8DA)
93440-39175-00
Unavailable
53
. SPRING, COMPRESSION
90501-326J6-00
Unavailable
54
COLLAR
8CW-47564-01-00
Unavailable
55
FORK, SHIFT 1
8ER-18511-00-00
Unavailable
56
. SHAFT
8CW-18197-00-00
Unavailable
57
PIN, SPRING(8DA)
91609-50022-00
Unavailable
58
O-RING (328)
93210-12131-00
Unavailable
59
PLATE
8CW-47591-00-00
Unavailable
60
BOLT, FLANGE
95817-06016-00
Unavailable
61
. ARM, SHIFT
8CW-18112-01-00
Unavailable
62
GUIDE, PLATE STOPPER
8CW-18161-01-00
Unavailable
63
CIRCLIP(10Y)
99009-12400-00
Unavailable
64
NUT,SELF-LOCKING
95607-06200-00
Unavailable
65
BOLT, FLANGE
95817-06035-00
Unavailable
66
. COLLAR
90387-06605-00
Unavailable
67
LEVER, SHIFT 4
8CW-18152-01-00
Unavailable
68
PIN, CLEVIS (2F9)
91701-06035-00
Unavailable
69
CLIP (156-83525-00)
90468-10050-00
Unavailable
70
WASHER(6TA)
92907-06200-00
Unavailable
71
PLATE, SHIFT ARM
8CW-1811A-00-00
Unavailable
72
. GUIDE, SHIFT RETURN SPRING
8CW-18153-00-00
Unavailable
73
SPRING, TENSION (36X)
90506-14343-00
Unavailable
74
KNOB, SHIFT LEVER
8CL-18174-00-00
Unavailable
75
PIN,SPRING (648)
91690-40022-00
Unavailable
76
SWITCH
J51-82817-00-00
Unavailable
77
. SCREW, BIND
98907-04016-00
Unavailable
78
NUT, U (7LY)
95617-04100-00
Unavailable
79
BOLT, FLANGE
95817-06025-00
Unavailable
80
BOLT, FLANGE
95817-06040-00
Unavailable
81
LEVER
8CW-18198-00-00
Unavailable
82
COLLAR
90387-06197-00
Unavailable
83
WASHER, PLATE(36Y)
90201-063J2-00
Unavailable
84
BOLT, FLANGE
95817-06025-00
Unavailable
85
JOINT, UNIVERSAL 2
J45-23845-00-00
Unavailable
86
JOINT 2
88T-18157-00-00
Unavailable
87
WASHER, PLATE (8K2)
90201-06778-00
Unavailable
88
NUT,SELF-LOCKING
95607-06200-00
Unavailable
89
JOINT 1
8CW-18156-00-00
Unavailable
90
PIN, COTTER (1W2)
91701-06022-00
Unavailable
91
CLIP (156-83525-00)
90468-10050-00
Unavailable
92
JOINT, ROD 1
88T-18116-01-00
Unavailable
93
ROD, SHIFT
26H-18115-00-00
Unavailable
94
NUT, HEXAGON
95314-06600-00
Unavailable
