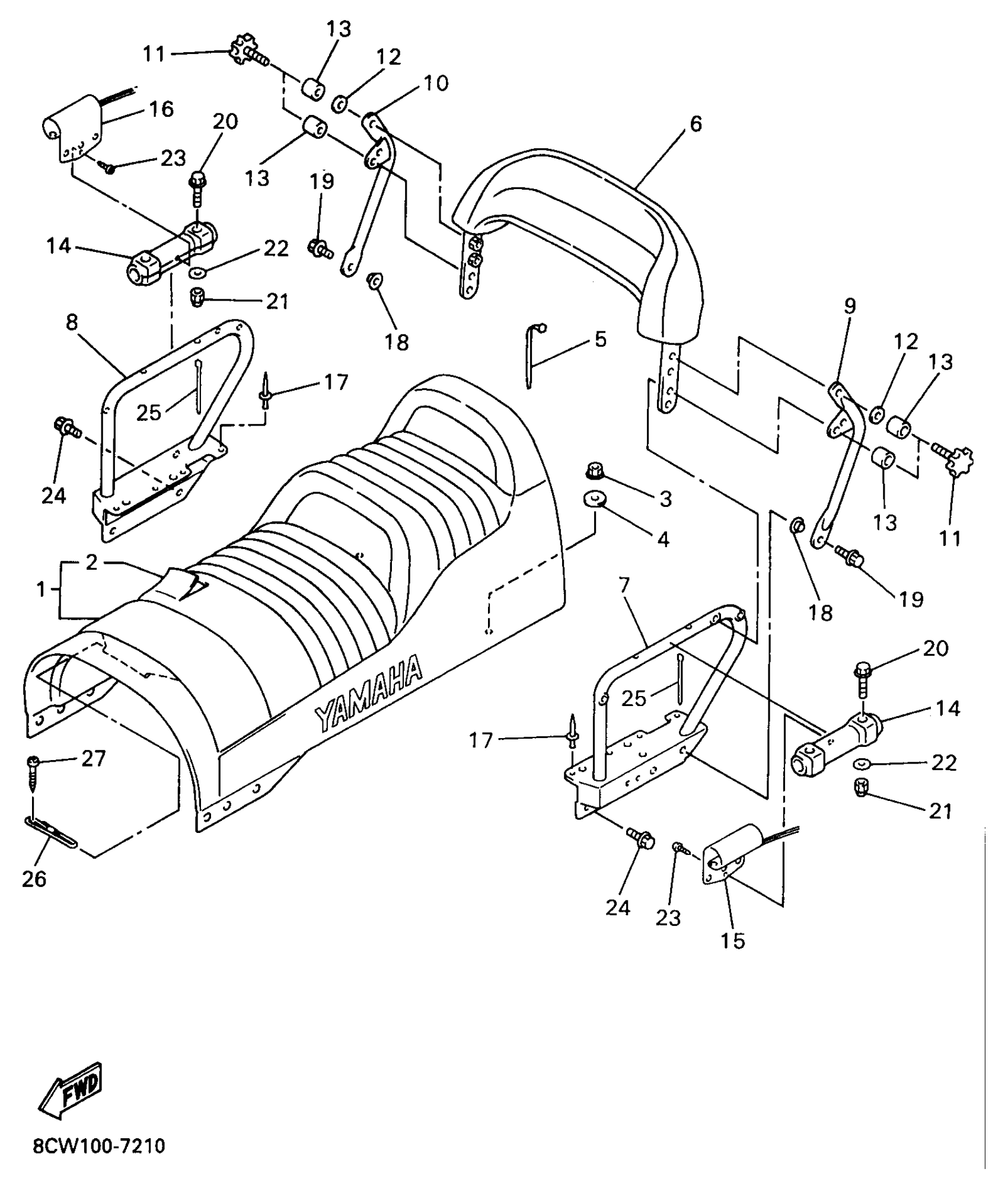

Yamaha VT600A (VENTURE 600) 8CW1 1997 SEAT Diagram
#
1
DOUBLE SEAT ASSY
8CW-24730-01-00
Unavailable
1
DOUBLE SEAT ASSEMBLY
8CY-24730-00-00
Unavailable
2
COVER, SEAT
8CW-2470F-00-00
Unavailable
2
COVER, SEAT
8CY-2470F-00-00
Unavailable
3
NUT, NYLON
95717-08300-00
$2.70
4
WASHER, PLATE (4W3)
90201-086A3-00
$8.49
5
CLAMP(4FM)
90464-15195-00
$4.41
6
. SEAT BACK ASSEMBLY
8CW-24790-00-00
Unavailable
7
. BRACKET, ASSIST GRIP 1
8CW-2474H-00-00
Unavailable
8
. BRACKET, ASSIST GRIP 2
8CW-2474J-00-00
Unavailable
9
BRACKET, SEAT BACK
8CW-24797-00-00
Unavailable
10
BRACKET, SEAT
8CW-2479L-00-00
Unavailable
11
BODY, SEAT LOCK
8CW-2479H-00-00
Unavailable
12
WASHER, PLATE (8M2)
90201-083A8-00
$2.02
13
DAMPER, SEAT
8CW-24737-00-00
$13.49
14
. ASSIST, GRIP
8CW-2474A-00-00
Unavailable
15
ASSIST GRIP WARMER ASSY 1
8CW-2474B-00-00
Unavailable
16
. ASSIST GRIP WARMER ASSY 2
8CW-2474C-00-00
Unavailable
17
RIVET, BLIND(8CH)
90267-47187-00
Unavailable
18
COLLAR
90387-08079-00
Unavailable
19
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
20
BOLT, FLANGE
95817-06040-00
Unavailable
21
NUT(4MY)
95307-06800-00
Unavailable
22
WASHER(6TA)
92907-06200-00
Unavailable
23
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
24
BOLT, FLANGE
95817-08014-00
Unavailable
25
CLAMP(4FM)
90464-15195-00
$4.41
26
BAND, SEAT
8CR-24734-00-00
Unavailable
27
SCREW, BINDING
90154-06040-00
Unavailable
