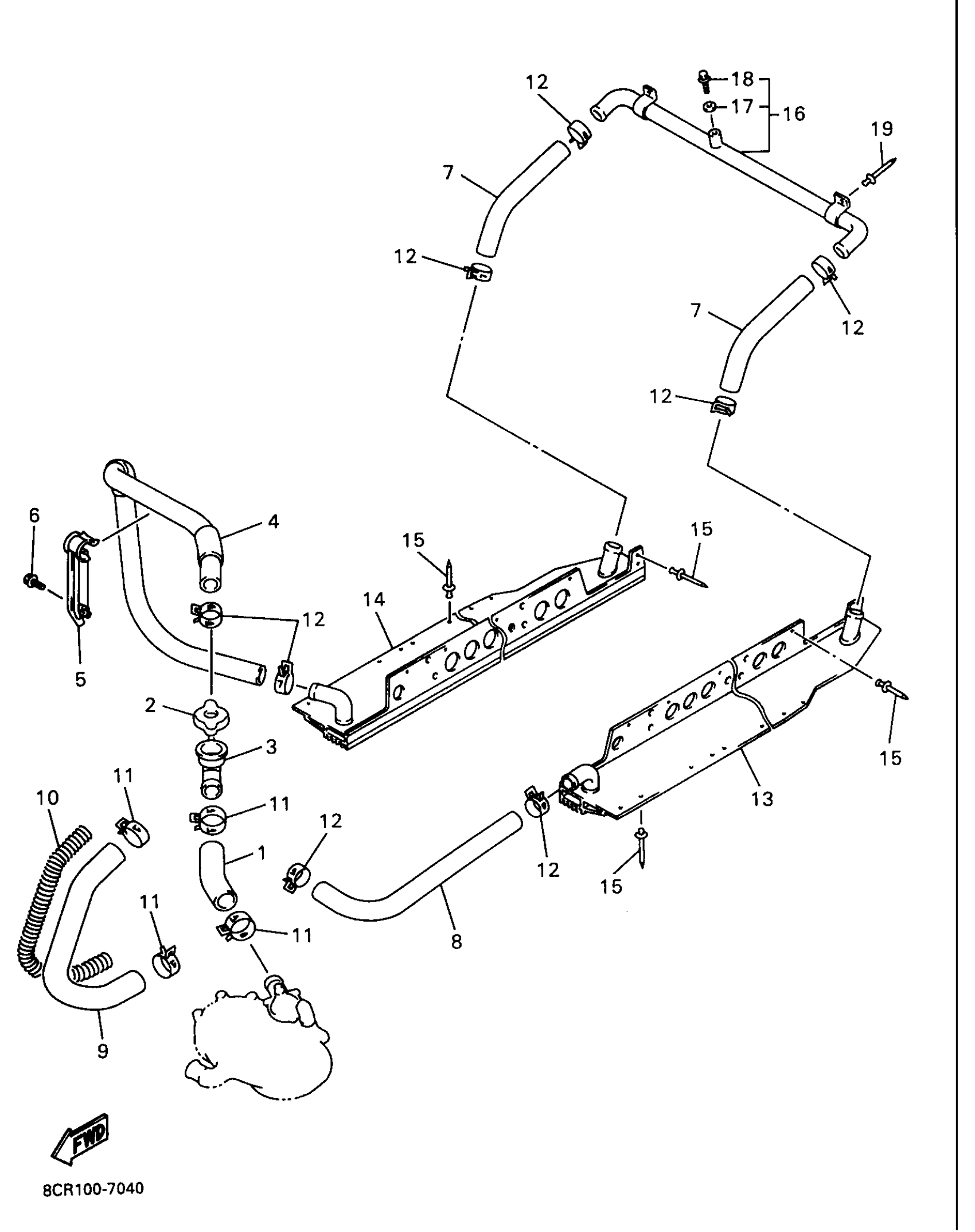

Yamaha VT600A (VENTURE 600) 8CW1 1997 RADIATOR HOSE Diagram

#

Description
Price

1

PIPE 2

8CR-12482-00-00

Unavailable

2

CAP, RADIATOR

4FL-12462-00-00

$62.99

3

SUPT, FILLER NECK

8CR-12591-00-00

Unavailable

4

PIPE 3

8CR-12483-00-00

Unavailable

5

CLAMP 1

8CR-12491-00-00

Unavailable

6

BOLT, FLANGE

95817-06014-00

Unavailable

7

PIPE 4

8CW-12484-00-00

Unavailable

8

PIPE 5

8CR-12485-00-00

Unavailable

9

PIPE 6

8CR-12476-00-00

Unavailable

10

SPRING, COMPRESSION

90501-120K6-00

Unavailable

11

CLIP (8M6)

90467-28046-00

$16.99

12

CLIP (10V)

90467-23067-00

$7.49

13

HEAT EXCHANGER

8CW-1240E-03-00

Unavailable

14

HEAT EXCHANGER

8CW-1240F-03-00

Unavailable

15

RIVET, BLIND(8CR)

90267-47186-00

$2.97

16

HEAT EXCHANGER ASY

8CR-1241A-01-00

Unavailable

17

GASKET (4V2)

90430-06166-00

Unavailable

18

BOLT, FLANGE

95817-06010-00

Unavailable

19

RIVET, BLIND(3JB)

90267-48095-00

Unavailable
