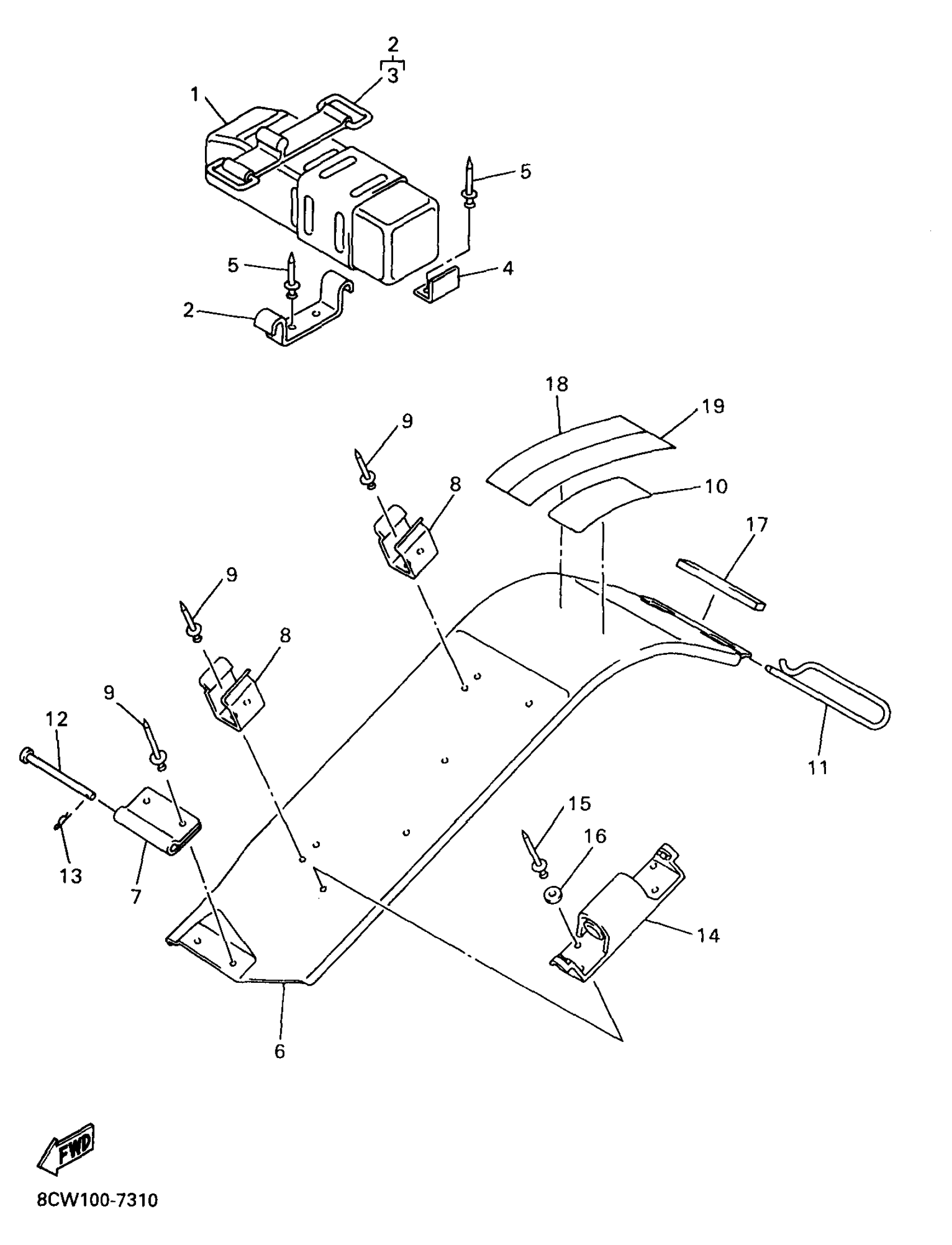

Yamaha VT600A (VENTURE 600) 8CW1 1997 GUARD LUGGAGE BOX Diagram

#

Description
Price

1

TOOL KIT

87B-28100-00-00

Unavailable

2

BRACKET, TOOL BOX FITTING

81E-21945-00-00

$20.99

3

BAND, BATTERY

4J2-82131-01-00

$29.99

4

BRACKET, TOOL BOX FITTING

83R-21955-00-00

$8.99

5

RIVET, BLIND(3JB)

90267-48095-00

$9.49

6

GUARD, DRIVE

8CR-77311-10-00

Unavailable

7

BRACKET 1

8CR-77315-00-00

Unavailable

8

STAY, BELT

8CR-77338-00-00

$5.49

9

RIVET, BLIND(8CR)

90267-47186-00

$2.97

10

LABEL, WARNING 2

8BD-77762-00-00

$7.99

11

PIN

8CR-77384-01-00

$16.49

12

PIN(8E7)

91701-06082-00

$5.60

13

CLIP (7U6)

90468-18121-00

$7.49

14

PLUG HOLDER ASSY

8CR-77378-00-00

$41.99

15

RIVET, BLIND

90267-48060-00

$8.49

16

WASHER, PLATE

90201-04027-00

Unavailable

17

DAMPER 1

8CR-77319-00-00

Unavailable

18

LABEL, CAUTION

8CJ-1417E-00-00

Unavailable

18

LABEL, CAUTION

8CR-1417E-00-00

Unavailable

19

LABEL 1

8CW-47578-00-00

Unavailable
