Description

Price

1

TANK, FUEL

8CW-24111-00-00

Unavailable

2

GAS CAP ASSY, W/O GAUGE

8CW-24610-01-00

Unavailable

3

GASKET, CAP

8CW-24612-00-00

$17.49

4

PIPE, JOINT 1

8CR-24376-01-00

$5.49

5

GROMMET

8CR-24339-00-00

$5.49

6

FILTER ASSY

8H5-24560-00-00

Unavailable

7

TUBE, FLEXIBLE VINYL(8AK)

91A20-07039-00

$5.60

8

SENDER UNIT ASSY, FUEL METER

8CW-85752-00-00

Unavailable

9

O-RING (102)

93210-41041-00

$7.49

10

SCREW, BINDING

98907-05008-00

$2.18

11

CLIP (7K7)

90467-11044-00

$8.49

12

PIPE, FUEL 1

8CR-24311-01-00

Unavailable

13

CLIP (7K7)

90467-11044-00

$8.49

14

PIPE, JOINT 1

8CR-24376-01-00

$5.49

15

TUBE, FLEXIBLE VINYL

91A20-07030-00

Unavailable

16

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

Unavailable

17

CLIP (8A1)

90467-09026-00

Unavailable

18

NUT, NYLON

95717-08300-00

Unavailable

19

WASHER, PLATE (3L7)

90201-08784-00

Unavailable

20

CLAMP(4FM)

90464-15195-00

Unavailable

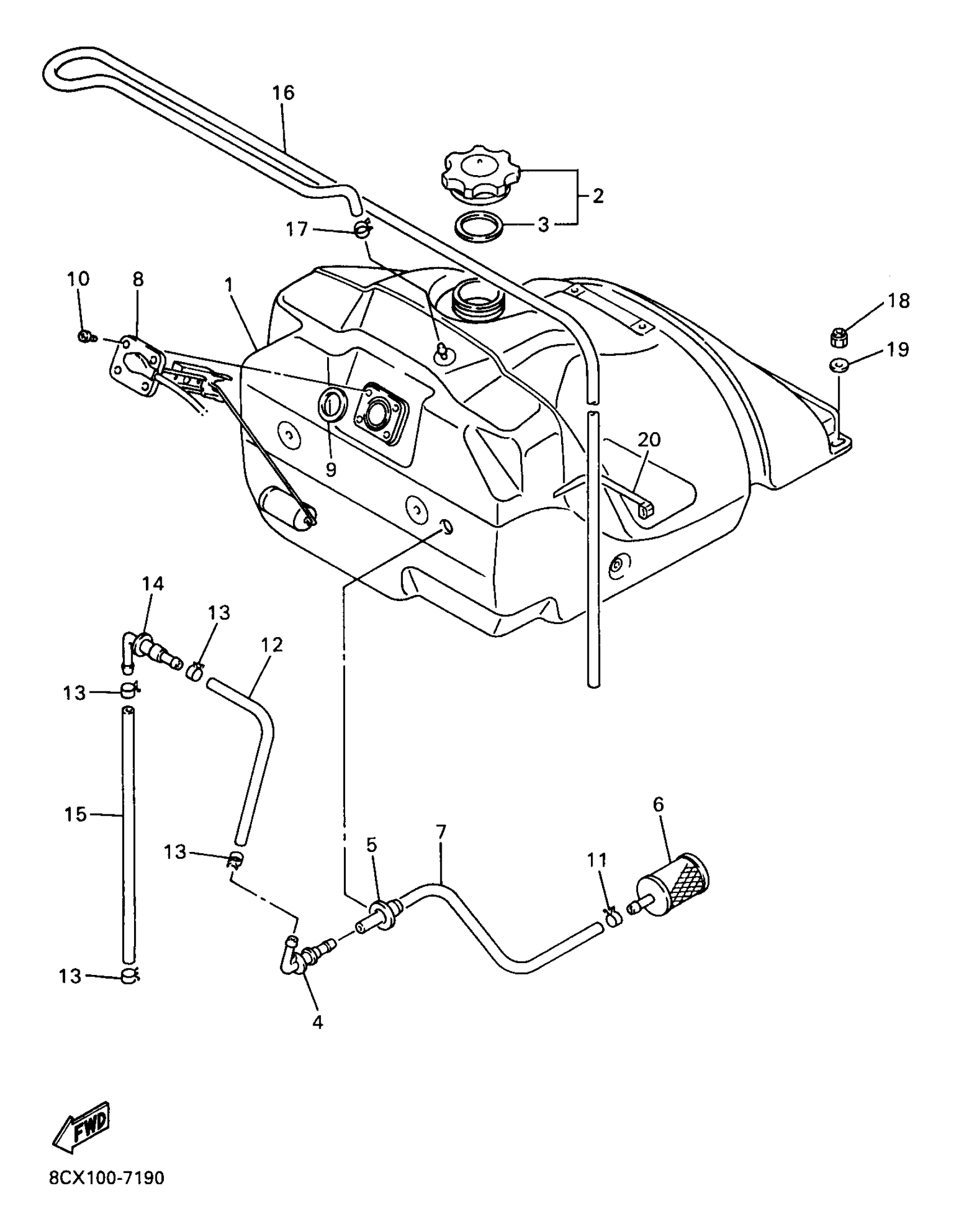

Yamaha VT600A (VENTURE 600) 8CW1 1997 FUEL TANK Diagram

TANK, FUEL

GAS CAP ASSY, W/O GAUGE

GASKET, CAP

PIPE, JOINT 1

GROMMET

FILTER ASSY

TUBE, FLEXIBLE VINYL(8AK)

SENDER UNIT ASSY, FUEL METER

O-RING (102)

SCREW, BINDING

CLIP (7K7)

PIPE, FUEL 1

CLIP (7K7)

PIPE, JOINT 1

TUBE, FLEXIBLE VINYL

TUBE, FLEXIBLE VINYL(8AT)

CLIP (8A1)

NUT, NYLON

WASHER, PLATE (3L7)

CLAMP(4FM)
