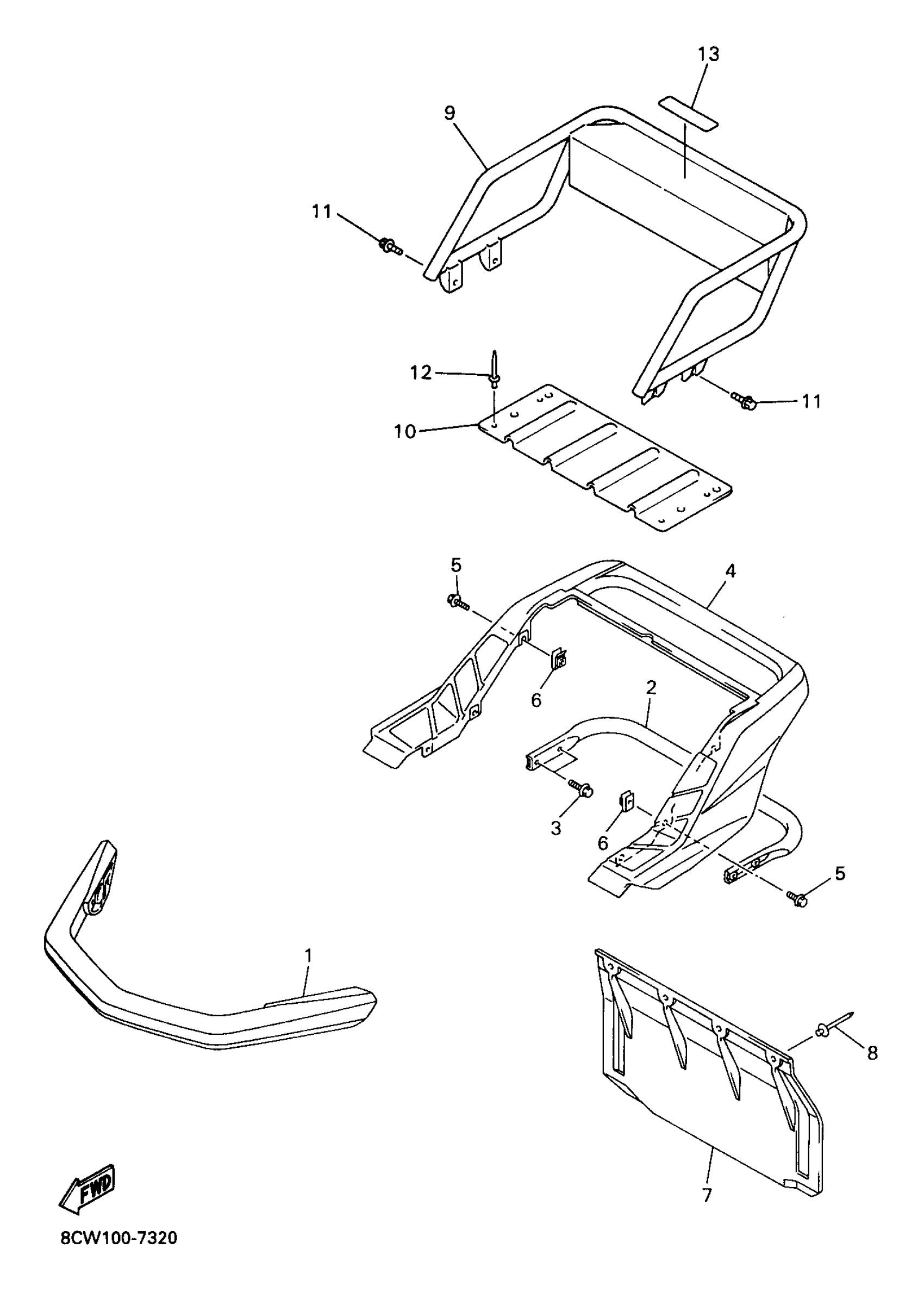

Yamaha VT600A (VENTURE 600) 8CW1 1997 BUMPER Diagram

#

Description
Price

1

BUMPER, FRONT 1

8CR-77511-00-00

$308.99

2

BUMPER, REAR 1

8CR-77541-00-00

Unavailable

3

BOLT, FLANGE

95817-08014-00

$5.60

4

BUMPER, REAR 2

8CW-77542-00-00

Unavailable

5

BOLT, FLANGE

95817-06016-00

$2.75

6

NUT, SPRING(4ES)

90183-06069-00

Unavailable

7

FLAP

8GW-77595-00-00

Unavailable

8

RIVET, BLIND(8CH)

90267-47187-00

$2.34

9

REAR BUMPER COMP.

8CW-77540-00-00

Unavailable

10

PROTECTOR 4

8CW-77554-00-00

Unavailable

11

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

12

RIVET, BLIND(8CH)

90267-47187-00

$2.34

13

EMBLEM

89X-24897-00-00

Unavailable
