- VT500XLL (VENTURE XL) 8DX8 2006
TRACK SUSPENSION 1

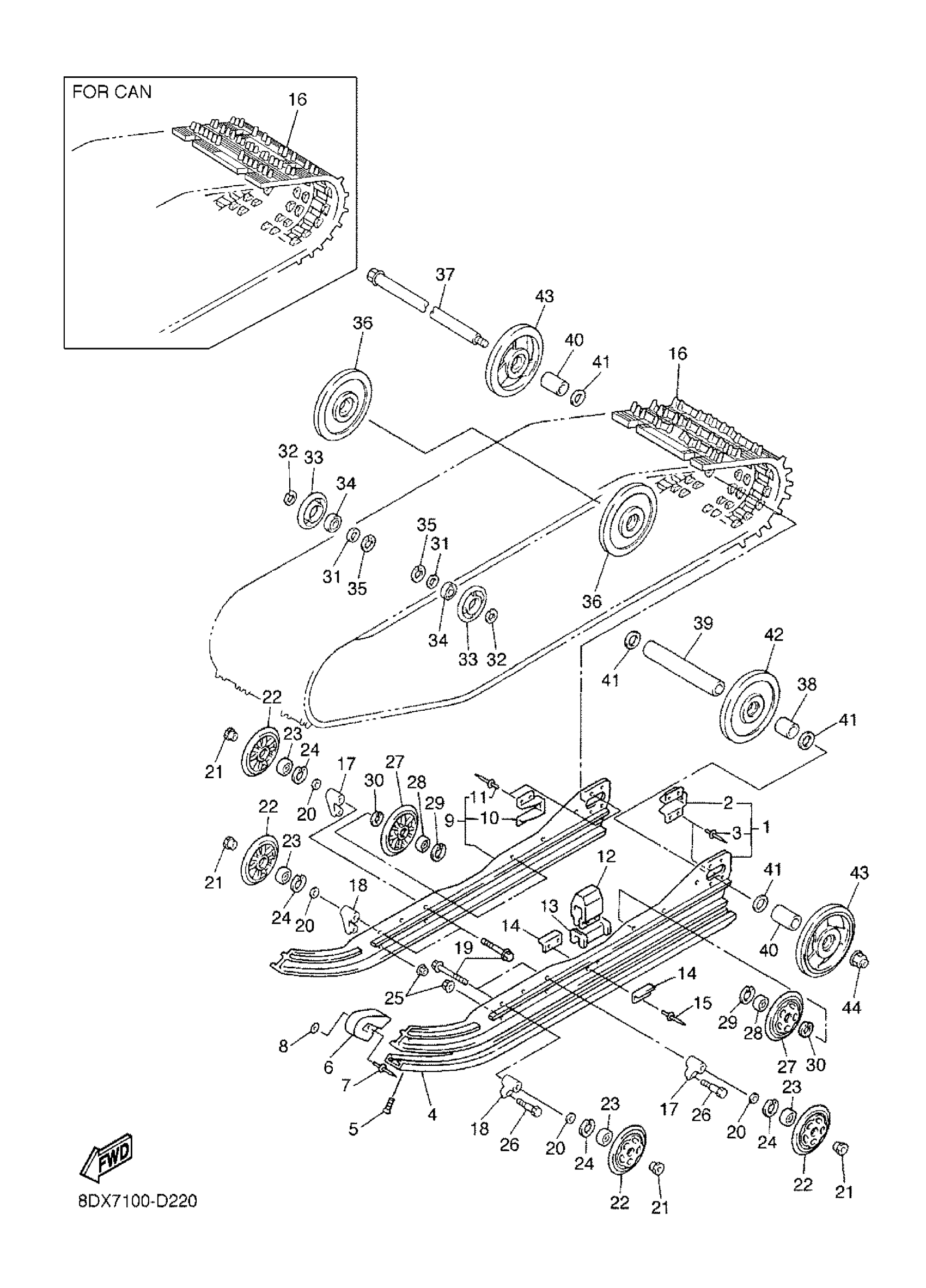

Yamaha VT500XLL (VENTURE XL) 8DX8 2006 TRACK SUSPENSION 1 Diagram
#
1
FRAME, SLIDING 1
8DX-47411-10-00
Unavailable
2
BRACKET
8DM-4741B-00-00
$45.99
3
RIVET
8V0-47468-00-00
$10.49
4
136 BLACK HYFAX
SMA-8CW92-70-BK
Unavailable
5
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
6
RUNNER, SLIDING 2
8ED-47422-00-00
$46.99
7
RIVET BLIND
90267-48194-00
$3.28
8
WASHER, PLATE(8CM)
90201-047R8-00
$3.02
9
FRAME, SLIDING 2
8DX-47412-10-00
Unavailable
10
BRACKET
8DM-4741B-00-00
$45.99
11
RIVET
8V0-47468-00-00
$10.49
12
DAMPER 2
8CM-47457-00-00
$16.49
13
SPACER
8CM-47341-00-00
$16.49
14
PLATE, DAMPER
8AX-47458-00-00
$10.99
15
RIVET, BLIND
90267-48199-00
$3.76
16
TRACK ASSY
8DM-47110-00-00
Unavailable
17
BRACKET 7
8CM-47419-10-00
Unavailable
18
BRACKET 7
8CM-47419-20-00
Unavailable
19
BOLT, FLANGE
90105-10029-00
Unavailable
20
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
21
NUT(8CM)
90179-10670-00
Unavailable
22
SUSPENTION WHEEL COMP
87M-47320-00-00
Unavailable
23
BEARING(8AB)
93306-00444-00
Unavailable
24
CIRCLIP(5U8)
99009-42500-00
Unavailable
25
NUT, SELF-LOCKING
90185-08169-00
Unavailable
26
BOLT(8CM)
90101-08774-00
Unavailable
27
SUSPENTION WHEEL COMP
87M-47320-00-00
Unavailable
28
BEARING(8AB)
93306-00444-00
Unavailable
29
CIRCLIP(5U8)
99009-42500-00
Unavailable
30
CIRCLIP(1AR)
99009-20400-00
Unavailable
31
COLLAR(8AB)
90387-2004V-00
Unavailable
32
CIRCLIP(1AR)
99009-20400-00
Unavailable
33
SUSPENSION WHEEL COMP.
8H8-47320-00-00
Unavailable
34
BEARING(8AB)
93306-00444-00
Unavailable
35
CIRCLIP(5U8)
99009-42500-00
Unavailable
36
GUIDE WHEEL ASSY
8CR-47550-00-00
Unavailable
37
REAR AXLE COMP.
8L8-47520-10-00
Unavailable
38
COLLAR
90387-2012E-00
Unavailable
39
COLLAR
90387-2012C-00
Unavailable
40
COLLAR
90387-2012D-00
Unavailable
41
WASHER, PLATE(89W)
90201-205R6-00
Unavailable
42
GUIDE WHEEL ASSY
8CR-47550-10-00
Unavailable
43
WHEEL SILVER PLASTIC ASSY
8DF-47550-01-SL
Unavailable
44
NUT, SELF-LOCKING (8BF)
95607-14200-00
Unavailable
