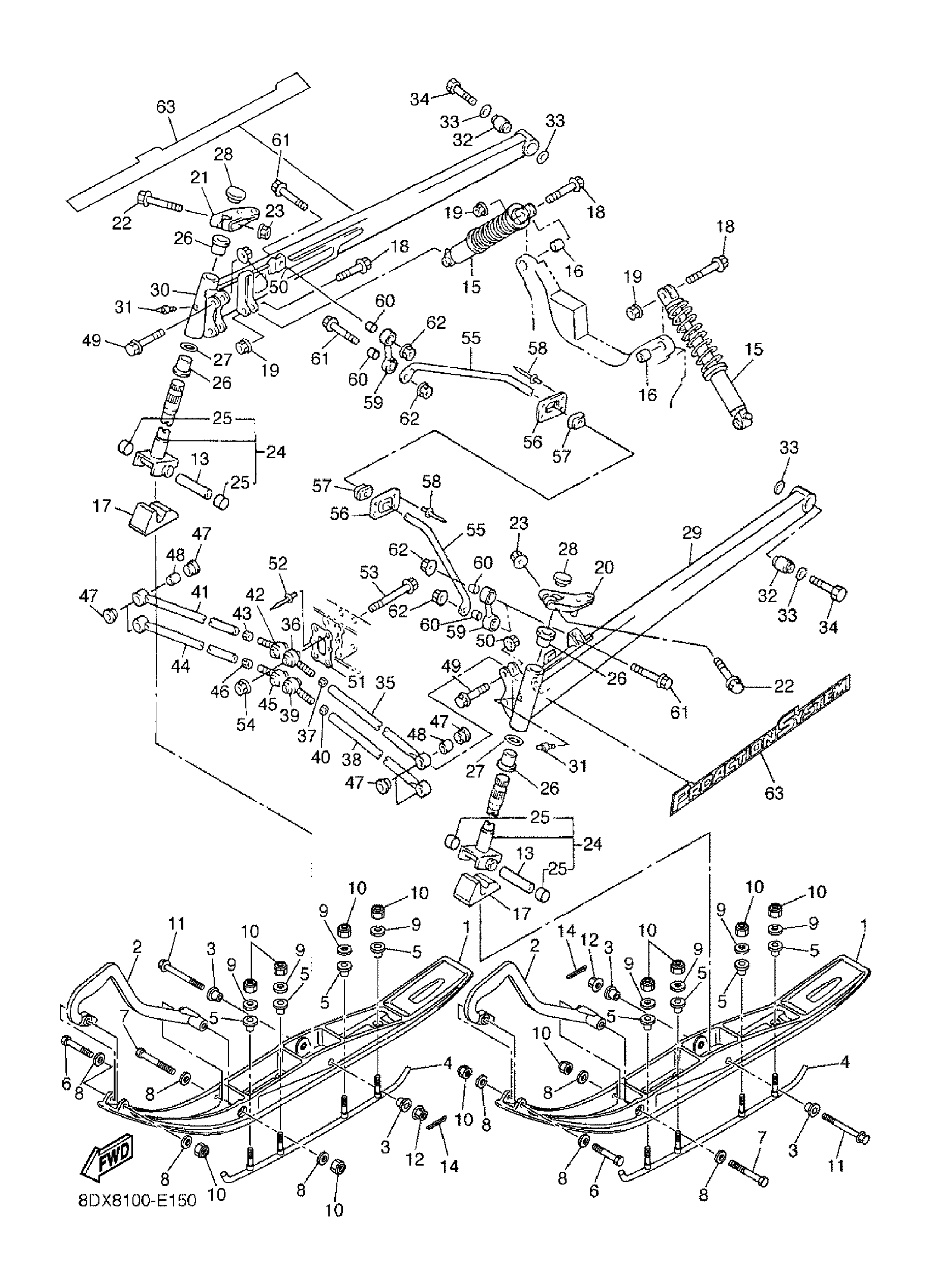

Yamaha VT500XLL (VENTURE XL) 8DX8 2006 SKI Diagram
#
1
SKI 1
8EX-23711-00-00
Unavailable
2
BLACK 8DM HANDLE PLASTIC
8DM-23712-00-BK
Unavailable
3
COLLAR, 1
8EX-23754-00-00
Unavailable
4
RUNNER 1
8EK-23731-01-00
$148.99
5
BUSH, SKI 1
8EK-F3751-00-00
Unavailable
6
BOLT, HEXAGON
97017-08055-00
$9.49
7
BOLT, HEXAGON
97027-08100-00
$5.60
8
WASHER, PLATE (3L7)
90201-08784-00
$3.23
9
WASHER, PLATE(3XP)
90201-086P8-00
$4.77
10
NUT, NYLON
95717-08300-00
$2.70
11
BOLT, FLANGE
90105-10070-00
$12.49
12
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
13
COLLAR
90387-1012H-00
$24.99
14
PIN, COTTER
91490-20025-00
$1.99
15
ABSORBER ASSY 1
8DX-2376A-10-00
Unavailable
16
BUSH
8CR-2376B-00-00
Unavailable
17
STOPPER 1
8CR-23743-10-00
Unavailable
18
BOLT, FLANGE
90105-10030-00
Unavailable
19
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
20
ARM, OUTSIDE 1
8CR-23851-00-00
Unavailable
21
ARM, OUTSIDE 2
8CR-23852-00-00
Unavailable
22
BOLT, FLANGE(87Y)
95817-10055-00
Unavailable
23
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
24
COLUMN, SKI ASSY
8DM-23803-00-00
Unavailable
25
BUSH, BIMETAL FORMED(8CJ)
90384-16251-00
Unavailable
26
BUSH, SOLID
90381-25115-00
Unavailable
27
WASHER, PLATE (25G)
90201-301G3-00
Unavailable
28
CAP 1
8CR-23741-10-00
Unavailable
29
ARM, FRONT 1
8DM-2382E-00-00
Unavailable
30
ARM, FRONT 2
8DM-2382F-00-00
Unavailable
31
NIPPLE, GREASE
93700-06M03-00
Unavailable
32
DAMPER
8CR-2516A-00-00
Unavailable
33
WASHER, PLATE(8CJ)
90201-120T5-00
Unavailable
34
BOLT(8CJ)
90101-12046-00
Unavailable
35
ARM, CONTROL 1
8CR-2384E-02-00
Unavailable
36
JOINT 2
8DN-23823-00-00
Unavailable
37
NUT, HEXAGON
95337-12600-00
Unavailable
38
ARM, CONTROL 2
8CR-2384F-02-00
Unavailable
39
JOINT 3
8DN-23832-00-00
Unavailable
40
NUT
95314-14600-00
Unavailable
41
ARM, CONTROL 1
8CR-2384E-02-00
Unavailable
42
JOINT 2
8DN-23823-00-00
Unavailable
43
NUT, HEXAGON
95337-12600-00
Unavailable
44
ARM, CONTROL 2
8CR-2384F-02-00
Unavailable
45
JOINT 3
8DN-23832-00-00
Unavailable
46
NUT
95314-14600-00
Unavailable
47
BUSH, SOLID(8CJ)
90381-17110-00
Unavailable
48
COLLAR(8CJ)
90387-1009K-00
Unavailable
49
BOLT, FLANGE
90105-10030-00
Unavailable
50
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
51
WASHER
8DF-23779-00-00
Unavailable
52
RIVET, BLIND (8J5)
90267-48057-00
Unavailable
53
BOLT, FLANGE
90105-124A2-00
Unavailable
54
NUT, U FLANGE
95607-12200-00
Unavailable
55
BAR, STABILIZER FRONT
8CW-2386E-00-00
Unavailable
56
COVER, STABILIZER FRONT
8CR-2386H-00-00
Unavailable
57
BUSH, STABILIZER FRONT
8CW-2386G-00-00
Unavailable
58
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
59
JOINT, STABILIZER 1
8CR-2385L-00-00
Unavailable
60
COLLAR(8V7)
90387-087L3-00
Unavailable
61
BOLT, FLANGE
95817-08040-00
Unavailable
62
NUT, SELF-LOCKING
90185-08169-00
Unavailable
63
EMBLEM 15
8CY-77371-00-00
Unavailable
