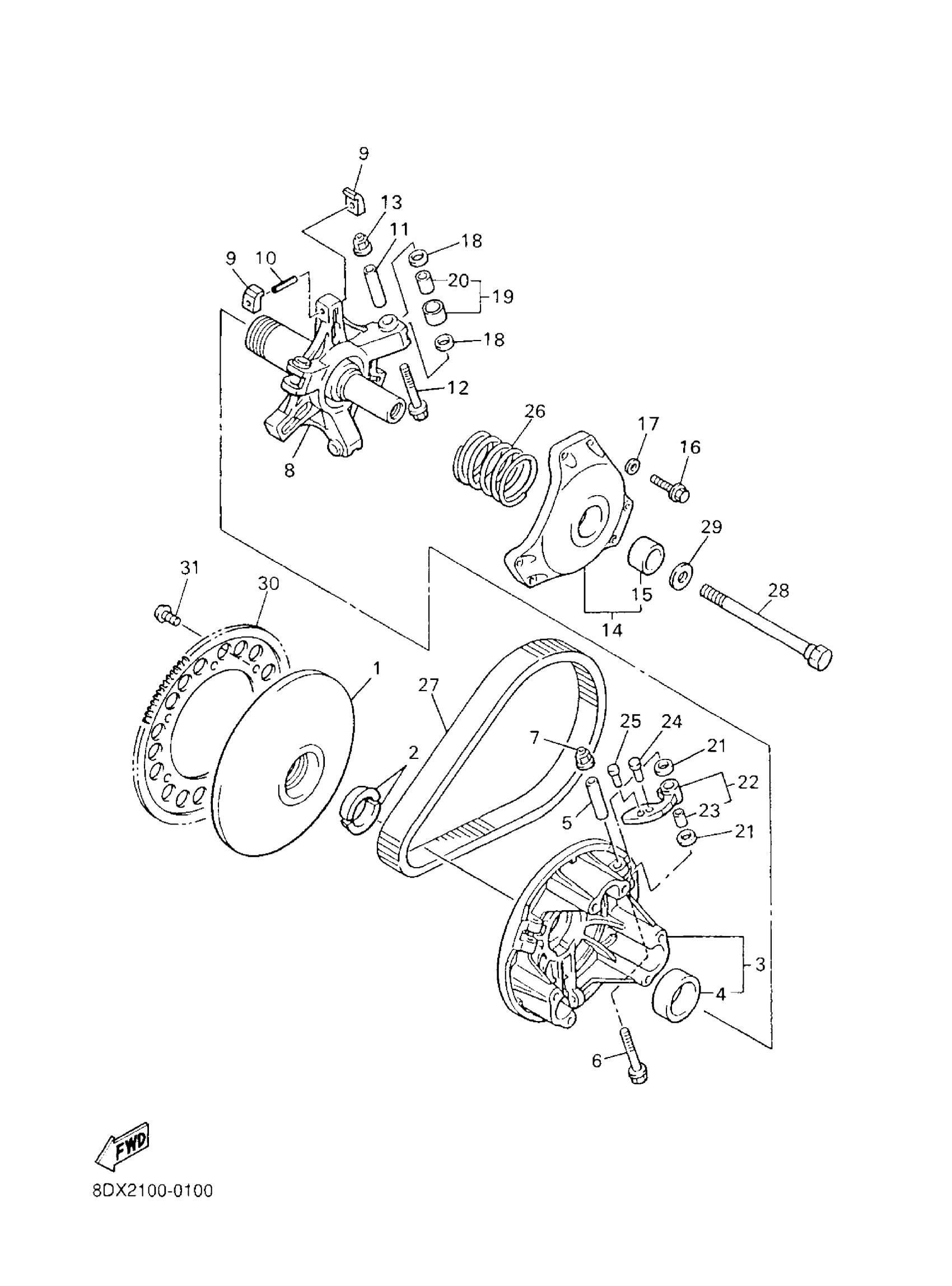

Yamaha VT500XLL (VENTURE XL) 8DX8 2006 PRIMARY SHEAVE Diagram

#

Description
Price

1

SHEAVE, PRIMARY FIXED

8CR-17611-02-00

$212.99

2

STOPPER

8V0-17639-00-00

$14.99

3

PRIMARY SLIDING SHEAVE COMP.

8BV-17620-03-00

Unavailable

4

BUSH, BIMETAL FORMED(8AS)

90384-41242-00

$60.99

5

COLLAR

90387-0514T-00

$16.99

6

BOLT, WASHER BASED(88R)

90105-05644-00

$2.39

7

NUT, S/L FLANGE

95607-05200-00

$9.49

8

SPIDER COMP.

8CA-17640-12-00

Unavailable

9

SLIDER

8BW-17653-00-00

$16.49

10

PIN, SPRING (7F7)

91609-50032-00

$4.14

11

COLLAR

90387-0514U-00

$20.99

12

BOLT, WASHER BASED(88R)

90105-05644-00

$2.39

13

NUT, S/L FLANGE

95607-05200-00

$9.49

14

PRIMARY SHEAVE CAP COMP.

8BV-17630-12-00

Unavailable

15

BUSH, SOLID(8CP)

90380-28237-00

$37.99

16

BOLT, HEXAGON

97017-06030-00

Unavailable

17

WASHER(6TA)

92907-06600-00

Unavailable

18

WASHER, PLATE(8BV)

90202-09227-00

Unavailable

19

ROLLER, COMP

8CR-17624-20-00

Unavailable

20

. BUSH, SOLID

90380-09245-00

Unavailable

21

WASHER, PLATE(88R)

90202-08204-00

Unavailable

22

WEIGHT COMP

8DJ-17605-00-00

Unavailable

23

. BUSH, SOLID

90380-08244-00

Unavailable

24

RIVET, COUNTERSUNK (8AB1)

90261-06033-00

Unavailable

25

RIVET, COUNTERSUNK HEAD (8K8)

90261-06019-00

Unavailable

26

SPRING, COMPRESSION(8AY)

90501-602J0-00

Unavailable

27

V-BELT

89L-17641-02-00

Unavailable

28

BOLT (L=156.5MM)

8V0-17647-10-00

Unavailable

29

WASHER(JN5)

92907-16100-00

Unavailable

30

GEAR 1

8DM-1760A-18-00

Unavailable

31

SCREW, CROSSRECESSED ROUND

90150-08008-00

Unavailable
