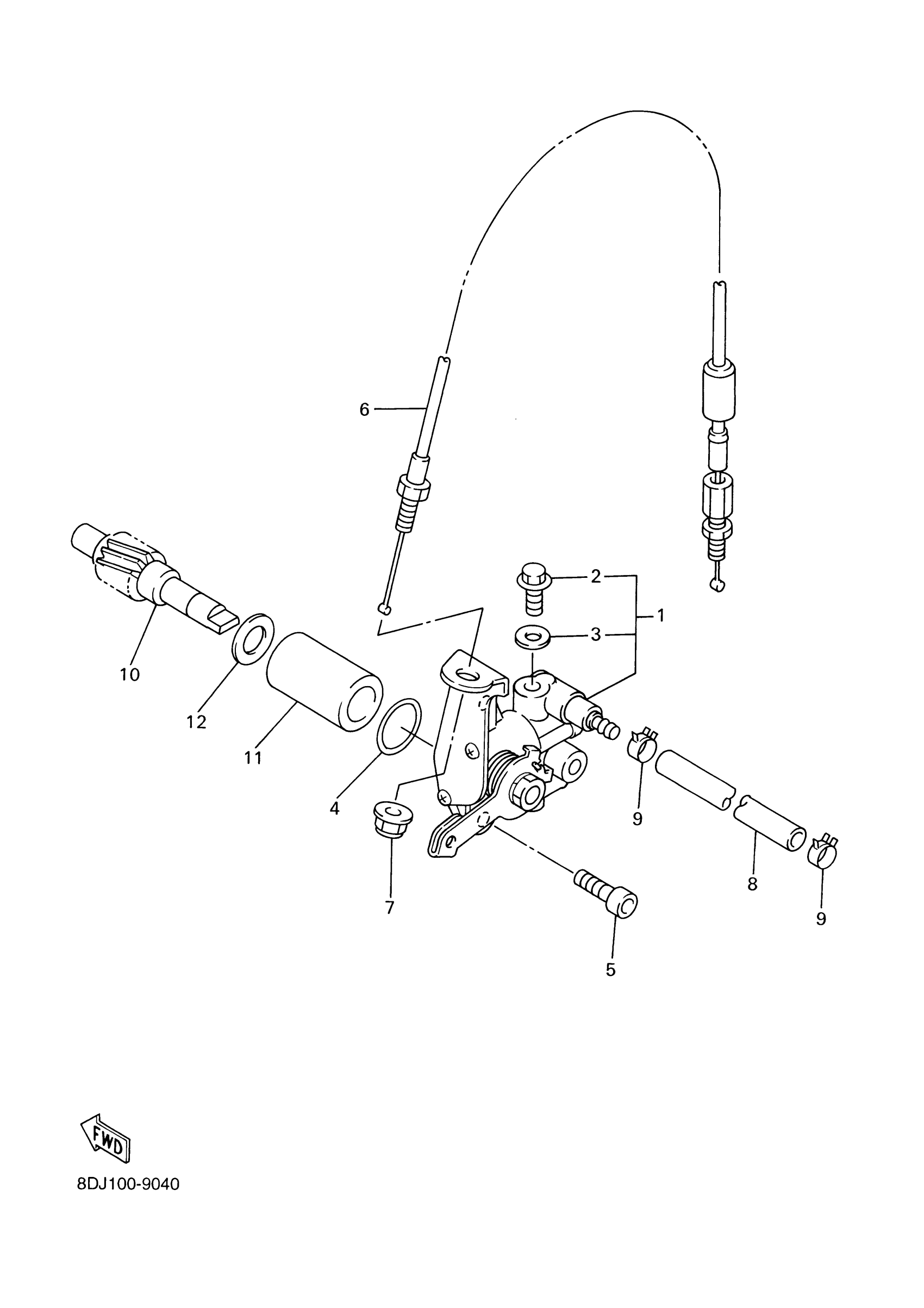

Yamaha VT500XLL (VENTURE XL) 8DX8 2006 OIL PUMP Diagram

OIL PUMP ASSY

8DJ-13100-00-00

Unavailable

BOLT, BREATHER

89A-13185-00-00

Unavailable

. GASKET, BREATHER BOLT

89A-13187-00-00

Unavailable

O-RING(3SB)

93210-20712-00

$4.29

BOLT,SOCKET

91317-05014-00

$8.49

PUMP CABLE ASSY

8DJ-26320-01-00

Unavailable

NUT, NYLON

95717-08300-00

$2.70

TUBE, FLEXIBLE VINYL(8AV)

91A30-03039-00

$10.49

CLIP (2A6)

90468-02025-00

$9.49

GEAR, WORM WHEEL

8DJ-13124-00-00

Unavailable

METAL, WORM SHAFT OUTER

8DJ-13176-00-00

Unavailable

WASHER PLATE (3L6)

90201-08759-00

$3.23
