Description

Price

1

TANK, OIL

8DJ-21751-00-00

Unavailable

2

BODY, CAP

8LU-21771-00-00

$31.99

3

GASKET, TANK (867)

90430-31003-00

$10.49

4

GROMMET 839774310000

90480-14023-00

$7.49

5

COLLAR(52E)

90387-063G3-00

$8.49

6

CLAMP

90462-08244-00

Unavailable

7

BOLT, FLANGE

95817-06025-00

Unavailable

8

TUBE, FLEXIBLE VINYL(8AT)

91A30-05125-00

Unavailable

9

SPRING, COMPRESSION (10L)

90501-08668-00

$11.49

10

SPRING, COMPRESSION(3JK)

90501-101J5-00

$19.99

11

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

$18.99

12

CLAMP(4FM)

90464-15195-00

$4.41

13

CLIP (8A1)

90467-09026-00

$3.28

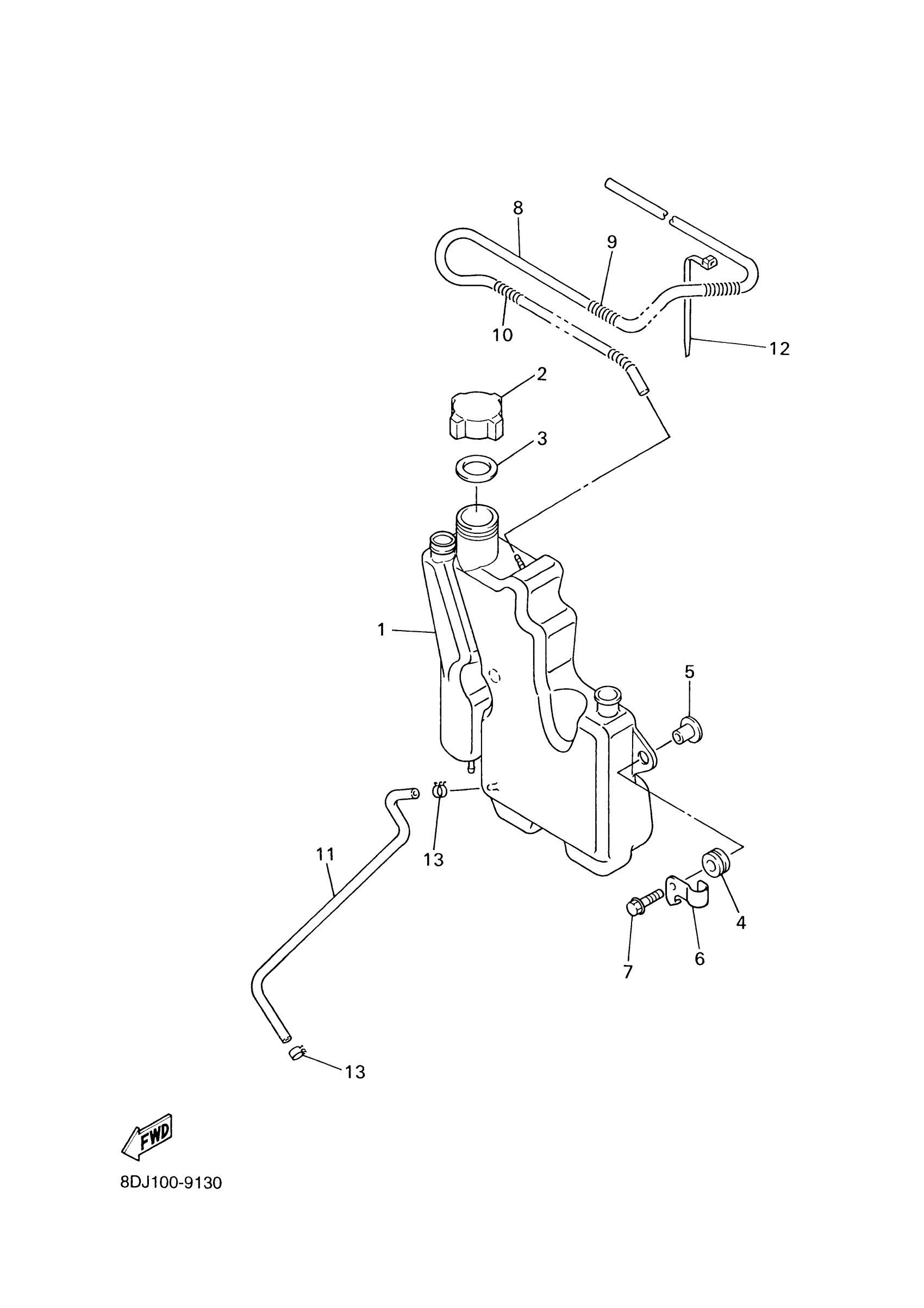

Yamaha VT500XLF 8DX3 2001 OIL TANK Diagram

TANK, OIL

BODY, CAP

GASKET, TANK (867)

GROMMET 839774310000

COLLAR(52E)

CLAMP

BOLT, FLANGE

TUBE, FLEXIBLE VINYL(8AT)

SPRING, COMPRESSION (10L)

SPRING, COMPRESSION(3JK)

TUBE,FLEXIBLE VINYL(85R)

CLAMP(4FM)

CLIP (8A1)
