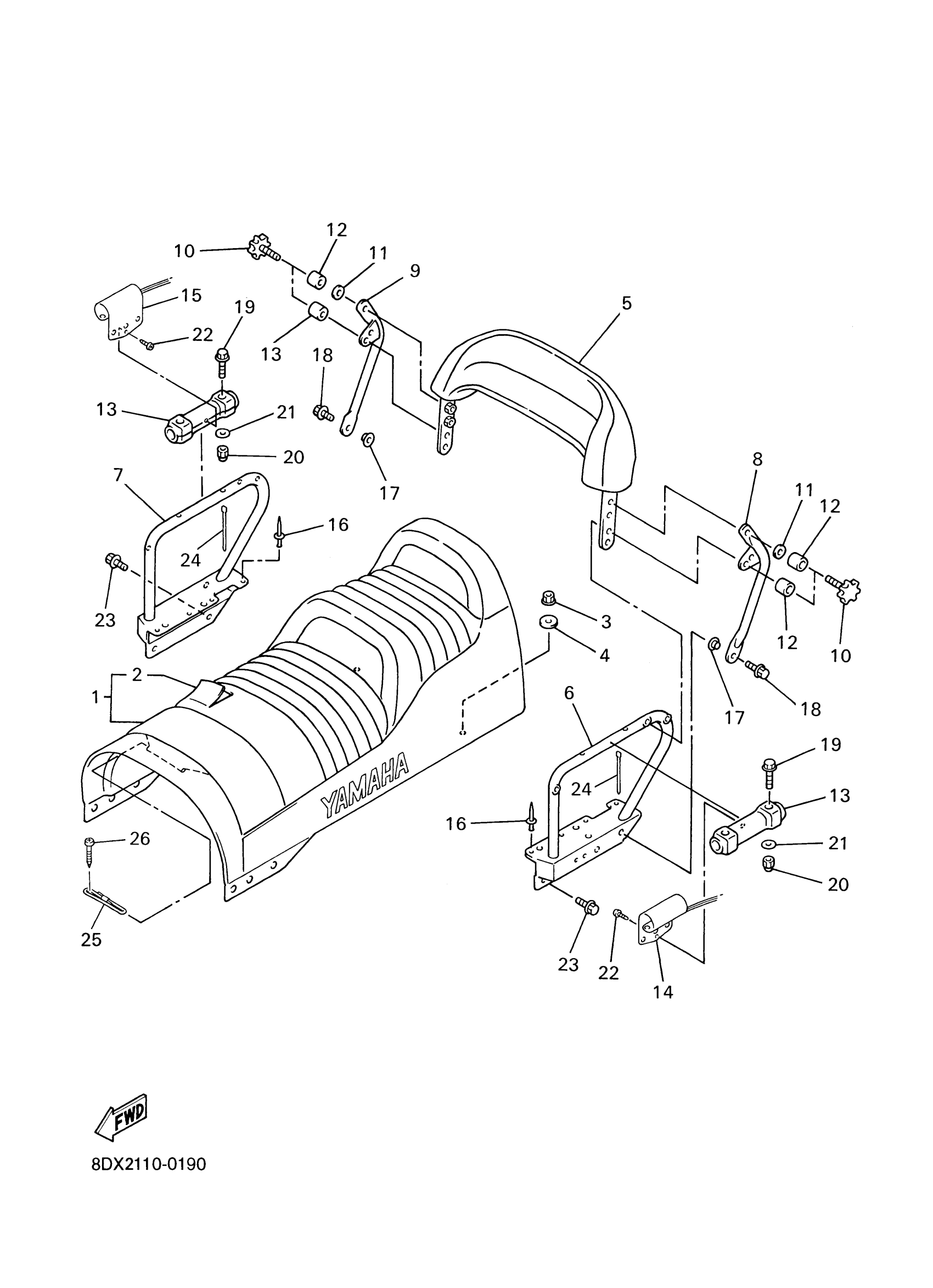

Yamaha VT500XLD (VENTURE XL) 8DX2 2000 SEAT Diagram
#
Description
Price
1
. DOUBLE SEAT ASSY
8CY-24730-20-00
Unavailable
2
COVER, SEAT
8CY-2470F-20-00
Unavailable
3
NUT, NYLON
95717-08300-00
$2.70
4
WASHER, PLATE (4W3)
90201-086A3-00
$8.49
5
SEAT BACK ASSY
8CW-24790-10-00
Unavailable
6
BRACKET, ASSIST GRIP 1
8CW-2474H-01-00
Unavailable
7
BRACKET, ASSIST GRIP 2
8CW-2474J-01-00
Unavailable
8
BRACKET, SEAT BACK
8CW-24797-00-00
Unavailable
9
BRACKET, SEAT
8CW-2479L-00-00
Unavailable
10
BODY, SEAT LOCK
8CW-2479H-00-00
Unavailable
11
WASHER, PLATE (8M2)
90201-083A8-00
$2.02
12
DAMPER, SEAT
8CW-24737-00-00
$13.49
13
. ASSIST, GRIP
8CW-2474A-00-00
Unavailable
14
ASSIST GRIP WARMER ASSY 1
8CW-2474B-00-00
Unavailable
15
. ASSIST GRIP WARMER ASSY 2
8CW-2474C-00-00
Unavailable
16
RIVET, BLIND(8CH)
90267-47187-00
Unavailable
17
COLLAR
90387-08079-00
Unavailable
18
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
19
BOLT, FLANGE
95817-06040-00
Unavailable
20
NUT(4MY)
95307-06800-00
Unavailable
21
WASHER(6TA)
92907-06200-00
Unavailable
22
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
23
BOLT, FLANGE
95817-08014-00
Unavailable
24
CLAMP
90464-13077-00
Unavailable
25
BAND, SEAT
8CR-24734-00-00
Unavailable
26
SCREW, BINDING
90154-06040-00
Unavailable
