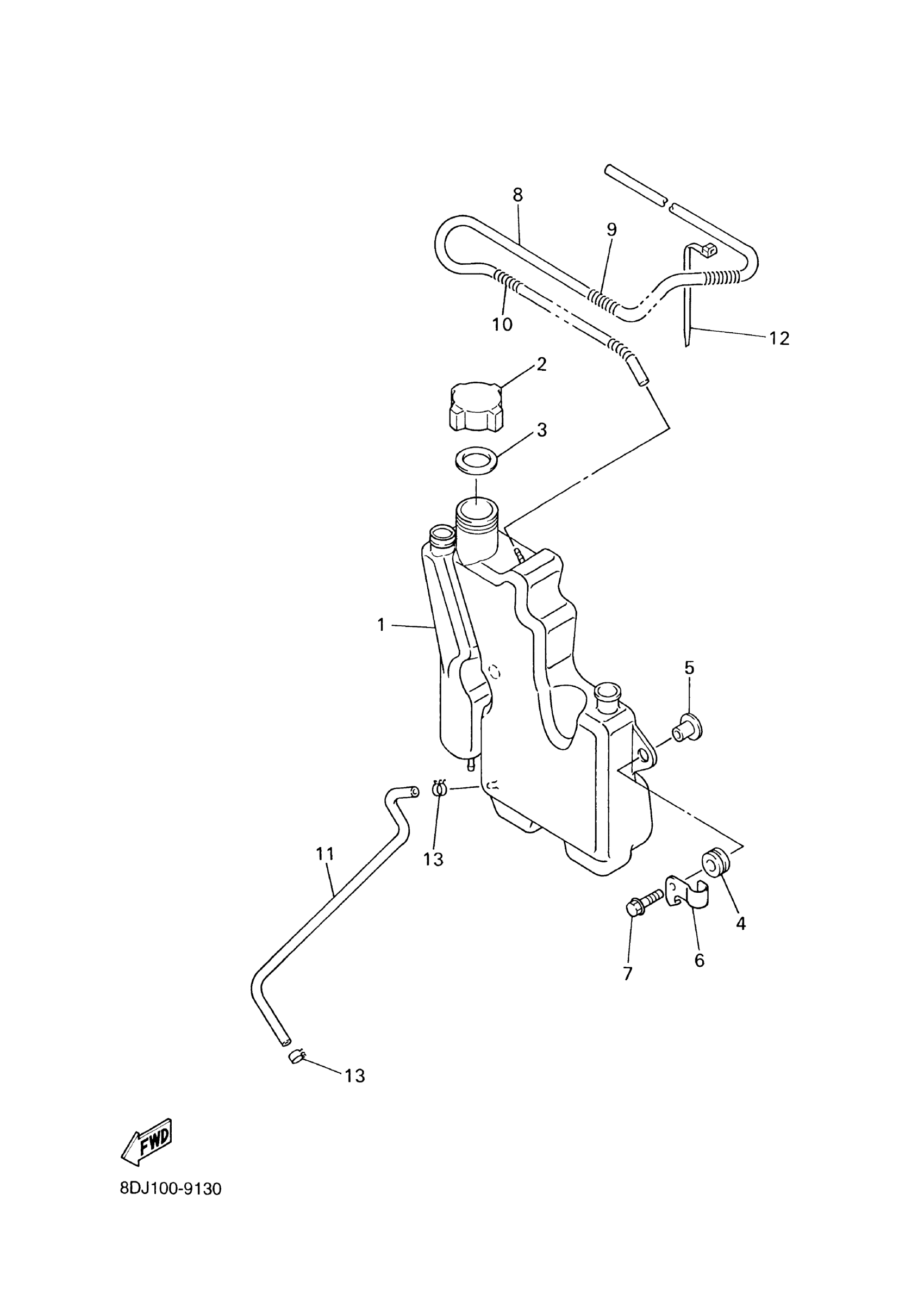

Yamaha VT500XLD (VENTURE XL) 8DX2 2000 OIL TANK Diagram

#

Description
Price

1

TANK, OIL

8DJ-21751-00-00

Unavailable

2

BODY, CAP

8LU-21771-00-00

$23.45

3

GASKET, TANK (867)

90430-31003-00

$7.24

4

GROMMET 839774310000

90480-14023-00

$4.34

5

COLLAR(52E)

90387-063G3-00

$5.86

6

CLAMP

90462-08244-00

Unavailable

7

BOLT, FLANGE

95817-06025-00

Unavailable

8

TUBE, FLEXIBLE VINYL(8AT)

91A30-05125-00

Unavailable

9

SPRING, COMPRESSION (10L)

90501-08668-00

$9.34

10

SPRING, COMPRESSION(3JK)

90501-101J5-00

$16.89

11

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

$15.77

12

CLAMP(4FM)

90464-15195-00

$2.57

13

CLIP (8A1)

90467-09026-00

$2.55
