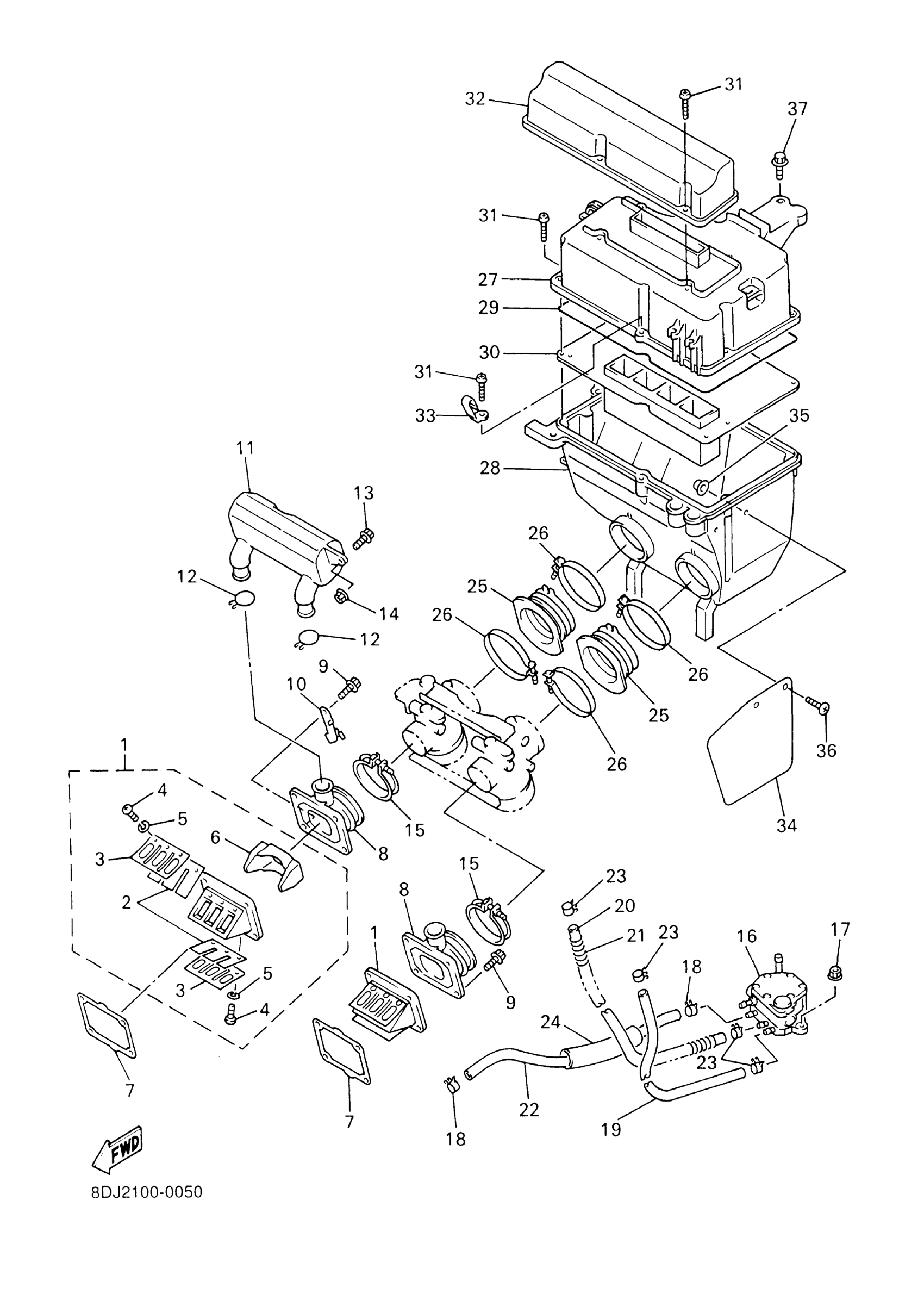

Yamaha VT500XLD (VENTURE XL) 8DX2 2000 INTAKE Diagram
#
1
REED VALVE ASSY
8DJ-13610-01-00
Unavailable
2
REED, VALVE
3SP-13613-01-00
$32.99
3
STOPPER, REED VALVE
8DJ-13616-00-00
$17.49
4
SCREW, PAN HEAD(3AC)
98517-03008-00
$2.97
5
WASHER, SPRING
92990-03100-00
$8.49
6
. SPACER, REED VALVE
4DA-13625-00-00
Unavailable
7
GASKET, VALVE SEAT
80L-13621-01-00
$10.99
8
MANIFOLD, INTAKE
8DJ-13555-00-00
Unavailable
9
BOLT, FLANGE
95817-06020-00
$3.81
10
CLAMP
90462-10243-00
$20.99
11
CHAMBER, AIR
8DJ-13581-00-00
Unavailable
12
CLIP(8V0)
90467-24096-00
$8.49
13
BOLT, HEXAGON WITH WASHER(353)
90119-05001-00
$8.49
14
NUT, NYLON
95707-05300-00
$4.24
15
BAND
86M-13575-00-00
$19.49
16
FUEL PUMP ASSY
8CR-24410-01-00
Unavailable
17
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
18
CLIP (7K7)
90467-11044-00
Unavailable
19
HOSE (L280)
90445-09004-00
Unavailable
20
HOSE (L420)
90445-092K1-00
Unavailable
21
SPRING, COMPRESSION (10L)
90501-08668-00
Unavailable
22
HOSE (L400)
90445-116K9-00
Unavailable
23
CLIP (8A1)
90467-09026-00
Unavailable
24
HOSE (L150)
90445-226J7-00
Unavailable
25
JOINT, AIR CLEANER 1
8DJ-14453-01-00
Unavailable
26
CLAMP, HOSE (29L)
90460-68230-00
Unavailable
27
SILENCER, INTAKE 1
8DJ-14431-00-00
Unavailable
28
SILENCER, INTAKE 2
8DJ-14441-00-00
Unavailable
29
SEAL
51Y-14462-00-00
Unavailable
30
PLATE
8DJ-14477-00-00
Unavailable
31
SCREW, TAPPING(82M)
90167-05043-00
Unavailable
32
DUCT
8DJ-14437-00-00
Unavailable
33
CLAMP(51Y)
90465-08277-00
Unavailable
34
PROTECTOR, HEAT
8DJ-12682-00-00
Unavailable
35
NUT (8J2)
90179-05271-00
Unavailable
36
SCREW, BINDING (8R1)
90154-05011-00
Unavailable
37
BOLT, WITH WASHER(3FC)
90119-06163-00
Unavailable
