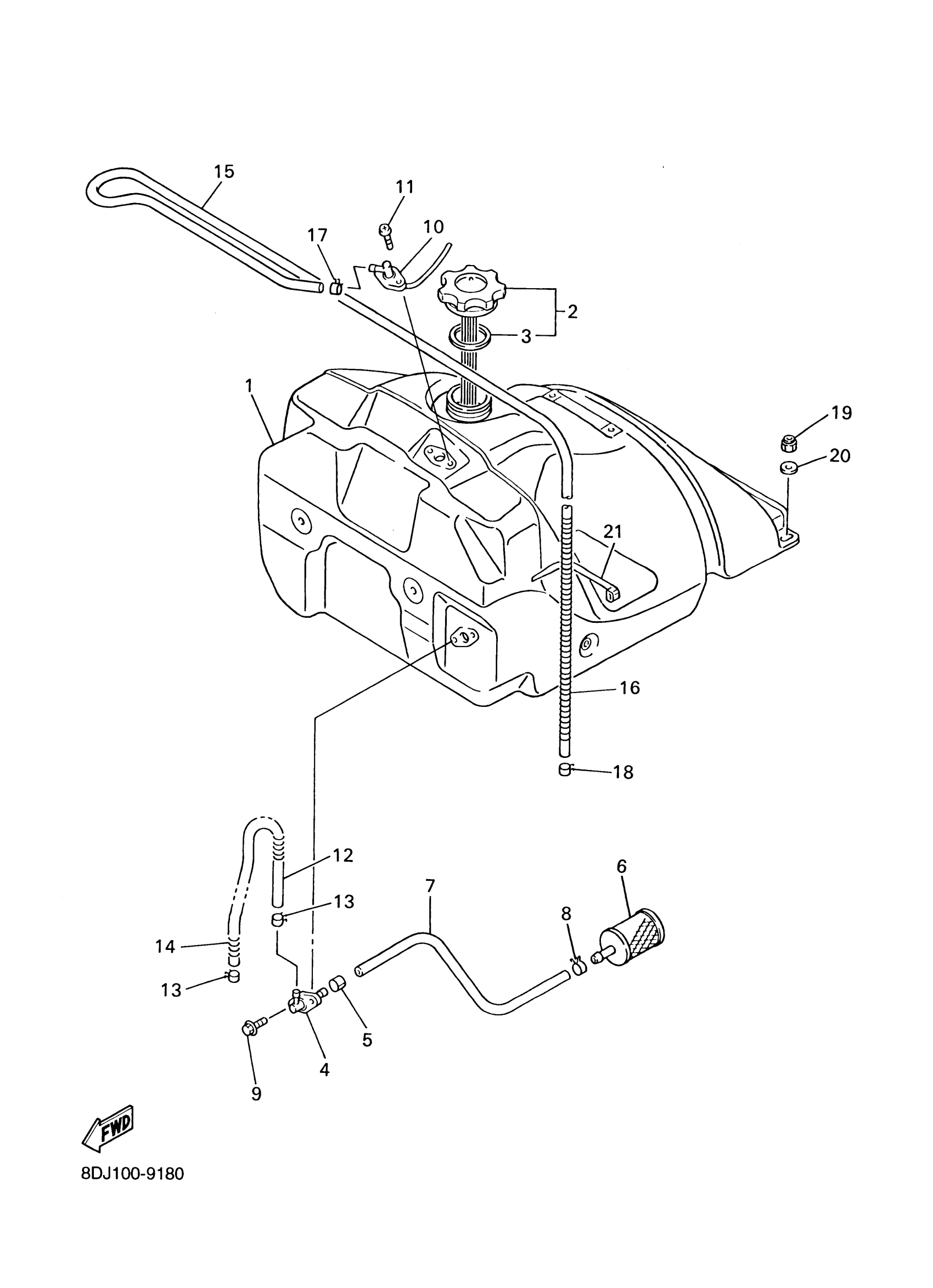

Yamaha VT500XLD (VENTURE XL) 8DX2 2000 FUEL TANK Diagram
#
Description
Price
1
TANK, FUEL
8DJ-24111-00-00
Unavailable
2
CAP ASSY
8CR-24610-00-00
Unavailable
4
SUCTION PIPE COMP. 1
8CR-24301-01-00
Unavailable
5
CLIP
90468-04092-00
Unavailable
6
FILTER ASSY
8H5-24560-00-00
Unavailable
10
BREATHER COMP.
8CR-2418A-00-00
Unavailable
12
PIPE, FUEL 1
8CR-24311-10-00
Unavailable
16
SPRING, COMPRESSION(7MX)
90501-084J0-00
Unavailable
17
CLIP (2A6)
90468-02078-00
Unavailable
18
CLIP (8A1)
90467-09026-00
Unavailable
19
NUT, NYLON
95717-08300-00
Unavailable
20
WASHER, PLATE (3L7)
90201-08784-00
Unavailable
21
CLAMP(4FM)
90464-15195-00
Unavailable
