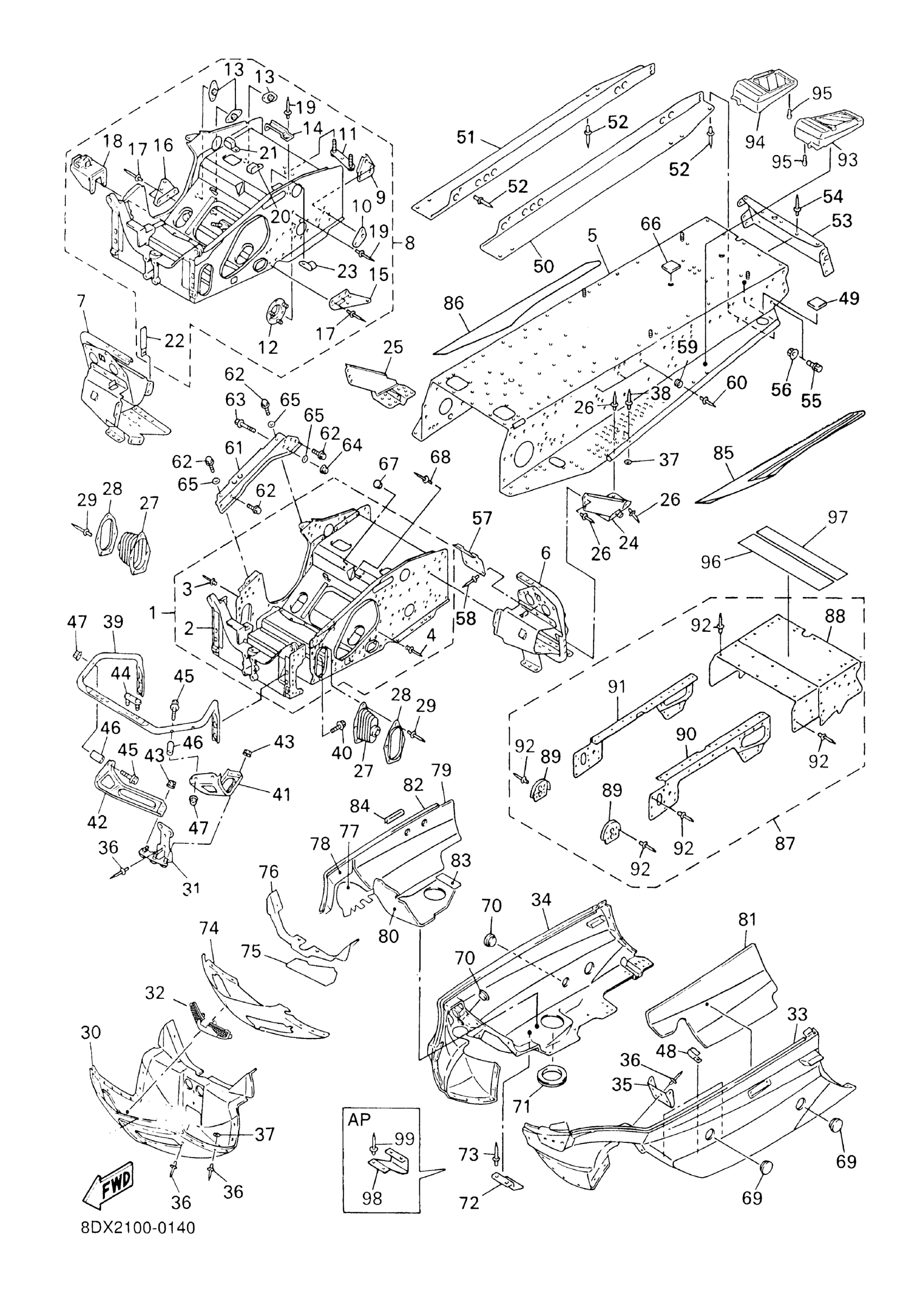

Yamaha VT500XLD (VENTURE XL) 8DX2 2000 FRAME Diagram
#
1
FRONT FRAME COMP.
8DJ-21940-07-00
Unavailable
2
BULKHEAD
8CR-2191A-02-00
$278.99
3
RIVET, BLIND
90267-48016-00
$10.49
4
RIVET, BLIND
90267-48177-00
$2.39
5
REAR FRAME COMP.
8CR-21950-06-00
Unavailable
6
FOOTREST COMP. 1
8CR-21960-08-00
Unavailable
7
FOOTREST COMP. 2
8CR-21970-08-00
Unavailable
8
FRAME CONNECTION K
8DJ-W2195-01-00
Unavailable
9
BRACKET, MAIN TRACK 1
8CR-21943-01-00
$6.99
10
BRACKET, MAIN TRACK 2
8CR-21953-00-00
$2.24
11
BRACKET 3
8CR-2196F-00-00
Unavailable
12
. HOUSING, REINF SUB-ASSY (LH)
8CR-21920-00-00
Unavailable
13
BRACKET, CHAIN HOUSING
8CR-21939-01-00
$5.49
14
CLAMP, FUEL PIPE
8CR-21977-00-00
Unavailable
15
PANEL, SUB FRAME 6
8CR-21917-00-00
Unavailable
16
PANEL, SUB-FRAME 7
8CR-21918-00-00
Unavailable
17
RIVET, BLIND
90267-48016-00
$10.49
18
STAY, MUFFER
8CR-2194J-00-00
Unavailable
19
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
19
RIVET, BLIND
90267-47197-00
Unavailable
20
CLAMP(83R)
90461-08113-00
Unavailable
21
CLAMP(8CR)
90461-06142-00
Unavailable
22
CLAMP
90462-10236-00
Unavailable
23
CLAMP(51Y)
90465-08277-00
Unavailable
24
PIPE, PIVOT 1
8DF-21941-00-00
Unavailable
25
PIPE, PIVOT 2
8DF-21951-00-00
Unavailable
26
RIVET
90269-07080-00
Unavailable
27
COVER 1
8CR-2198F-00-00
Unavailable
28
PLATE, STRG BRACKET 1
8CR-2195E-00-00
Unavailable
29
RIVET, BLIND
90267-47197-00
Unavailable
30
PANEL, SUB FRAME 1
8CR-21912-01-00
Unavailable
31
PLATE, BACK UP
8CR-23788-11-00
Unavailable
32
STAY 4
8CR-77128-00-00
Unavailable
33
FRAME UNDER 1
8CR-2196A-03-00
Unavailable
34
FRAME, UNDER 2
8DJ-2196E-02-00
Unavailable
35
BRACKET, GUARD FITTING
8CR-21972-00-00
Unavailable
36
RIVET, BLIND
90267-48018-00
Unavailable
37
WASHER PLATE 829771780000
90201-05033-00
Unavailable
38
RIVET, BLIND(8CH)
90267-47187-00
Unavailable
39
BUMPER, FRONT 2
8CR-77512-00-00
Unavailable
40
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
41
BRACKET, FRONT
8CR-21949-10-00
Unavailable
42
BRACKET, FRONT BUMPER
8CR-21959-10-00
Unavailable
43
NUT, SELF-LOCKING
90185-08169-00
Unavailable
44
BRACKET, 5
8CR-2196M-00-00
Unavailable
45
BOLT, FLANGE
95817-08040-00
Unavailable
46
COLLAR(8CR)
90387-0810F-00
Unavailable
47
NUT, FLANGE(JN5)
95707-08500-00
Unavailable
48
CLAMP(4MX)
90465-06376-00
Unavailable
49
COVER 3
8CR-2198J-00-00
Unavailable
50
REINF., PANELL FRAME 1
8DX-21991-01-00
Unavailable
51
REINF., PANELL FRAME 2
8DX-21992-01-00
Unavailable
52
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
53
REINEFORCEMENT, FRAME REAR 1
8CR-21923-02-00
Unavailable
54
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
55
BOLT, SMALL FLANGE
95027-08016-00
Unavailable
56
NUT, FLANGE(JN5)
95707-08500-00
Unavailable
57
HOOK
8CR-21973-00-00
Unavailable
58
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
59
BUTT0N
81K-2471F-00-00
Unavailable
60
RIVET, BLIND(81K)
90267-40135-00
Unavailable
61
REINEFORCEMENT, FRAME REAR 1
8CR-21921-01-00
Unavailable
62
BOLT, FLANGE
95817-10020-00
Unavailable
63
BOLT,FLANGE
95817-10065-00
Unavailable
64
NUT, FLANGE(8AB)
95707-10500-00
Unavailable
65
WASHER, PLAIN(3BM)
92907-10200-00
Unavailable
66
COVER 3
8CR-2198J-00-00
Unavailable
67
PLUG
90338-10004-00
Unavailable
68
RIVET, BLIND
90267-48177-00
$2.39
69
PLUG (8H8)
90338-44093-00
Unavailable
70
PLUG(8CJ)
90338-30256-00
Unavailable
71
SPACER
8DF-21998-10-00
Unavailable
72
PROTECTOR, FRAME 3
8DJ-2197C-00-00
Unavailable
73
RIVET, BLIND
90267-48018-00
Unavailable
74
LINING, SHROUD 1
8DJ-77261-00-00
Unavailable
75
LINING, SHROUD 2
8DJ-77262-00-00
Unavailable
76
LINING, SHROUD 3
8CR-77263-00-00
Unavailable
77
LINING, SHROUD 5
8CR-77265-00-00
Unavailable
78
LINING, SHROUD 6
8CR-77266-00-00
Unavailable
79
LINING, SHROUD 7
8CR-77267-01-00
Unavailable
80
LINING, SHROUD 9
8CR-77269-00-00
Unavailable
81
DAMPER, NOISE 11
8CR-77271-00-00
Unavailable
82
TAPE, 5
8CR-7717J-00-00
Unavailable
83
TRIM 1
8CR-77165-00-00
Unavailable
84
TAPE,5
8DJ-7717J-00-00
Unavailable
85
EMBLEM 1
8CY-77351-00-00
Unavailable
86
EMBLEM 2
8CY-77352-00-00
Unavailable
87
PANEL, SUB-FRAME KIT
8CW-W2196-02-00
Unavailable
88
PANEL,SUB-FRAME5
8CW-21916-02-00
Unavailable
89
BRACKET, MAIN TRACK 1
8CW-21943-00-00
Unavailable
90
PATCH 4
8CW-21964-02-00
Unavailable
91
PATCH 5
8CW-21965-02-00
Unavailable
92
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
93
FOOTREST, REAR 1
8DM-27431-03-00
Unavailable
94
FOOTREST, REAR 2
8DM-27441-03-00
Unavailable
95
SCREW, TAPPING(4TV)
90167-05078-00
Unavailable
96
EMBLEM 1
8DX-77141-00-00
Unavailable
97
LABEL, WARNING 2
8CY-77762-00-00
Unavailable
98
PROTECTOR, FRAME 3
8CS-2197C-00-00
Unavailable
99
RIVET, BLIND
90267-48018-00
Unavailable
