Description

Price

1

DAMPER

8CW-82176-00-00

Unavailable

2

PIPE (L320)

8CW-8235W-01-00

Unavailable

3

CLIP(41W)

90467-08092-00

$9.49

4

BRACKET, BATTERY

8DX-2199G-00-00

$75.99

5

BOLT, FLANGE

95817-06014-00

Unavailable

6

SEAT, BATTERY

84N-82122-00-00

$6.99

7

BAND, BATTERY

8CY-82131-00-00

$12.99

8

WIRE, PLUS LEAD

8DY-82115-00-00

Unavailable

9

STARTER RELAY ASSY (RC19-016)

3EL-81940-02-00

$28.99

10

BOLT, SMALL FLANGE

95027-06008-00

$7.99

11

COVER, BATTERY

8DX-82129-01-00

Unavailable

12

. HOLDER, RELAY

8CY-81952-00-00

Unavailable

13

CLAMP(83R)

90461-08113-00

Unavailable

14

BOLT, FLANGE

95817-06014-00

Unavailable

15

NUT,SELF-LOCKING

95607-06200-00

$12.49

16

YB16ALA2 YUASA BATTERY

YB1-6ALA2-00-00

Unavailable

17

SHIELD, HEAT

8DX-2199H-00-00

Unavailable

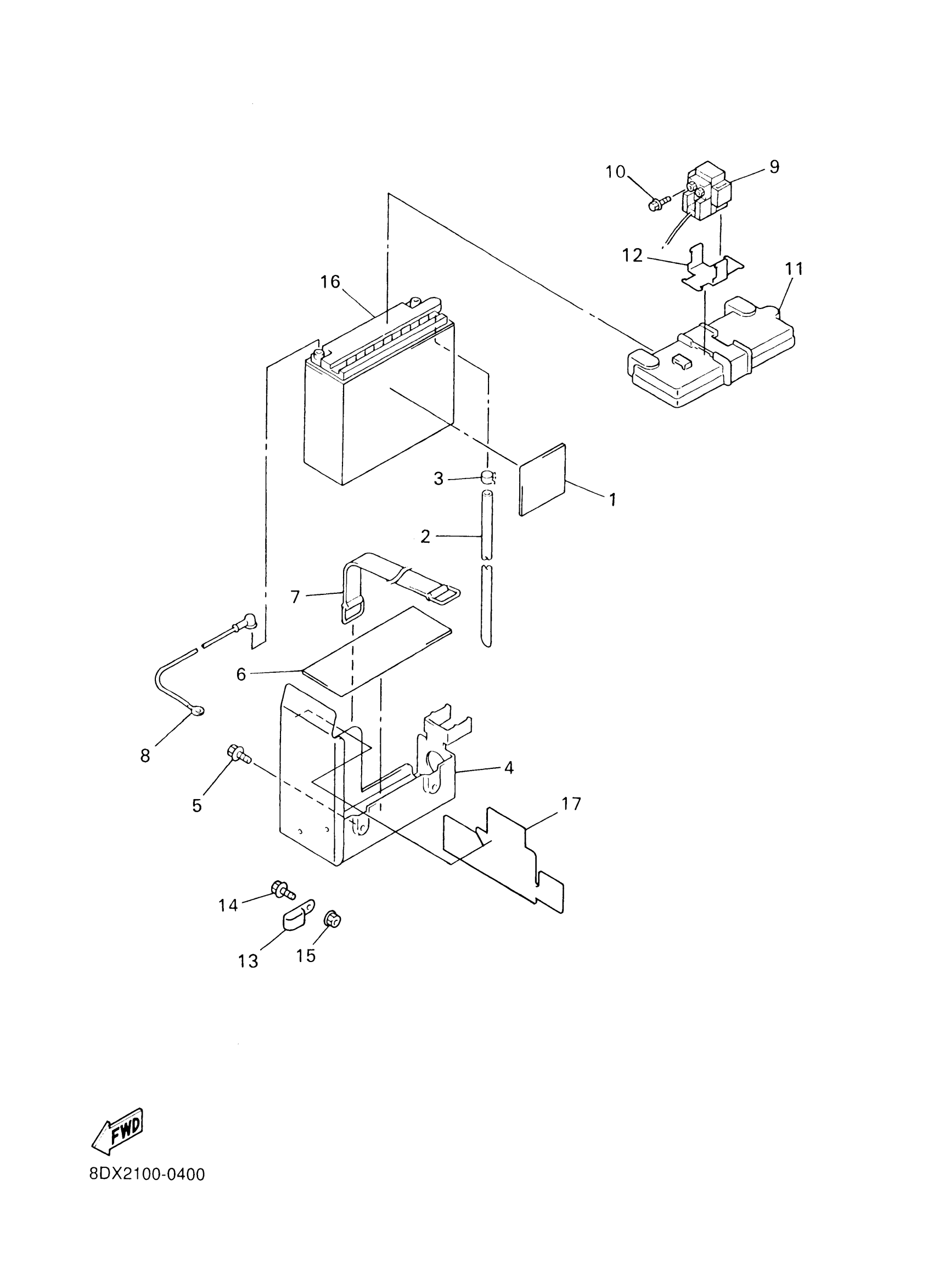

Yamaha VT500XLD (VENTURE XL) 8DX2 2000 ELECTRICAL 2 Diagram

DAMPER

PIPE (L320)

CLIP(41W)

BRACKET, BATTERY

BOLT, FLANGE

SEAT, BATTERY

BAND, BATTERY

WIRE, PLUS LEAD

STARTER RELAY ASSY (RC19-016)

BOLT, SMALL FLANGE

COVER, BATTERY

. HOLDER, RELAY

CLAMP(83R)

BOLT, FLANGE

NUT,SELF-LOCKING

YB16ALA2 YUASA BATTERY

SHIELD, HEAT
