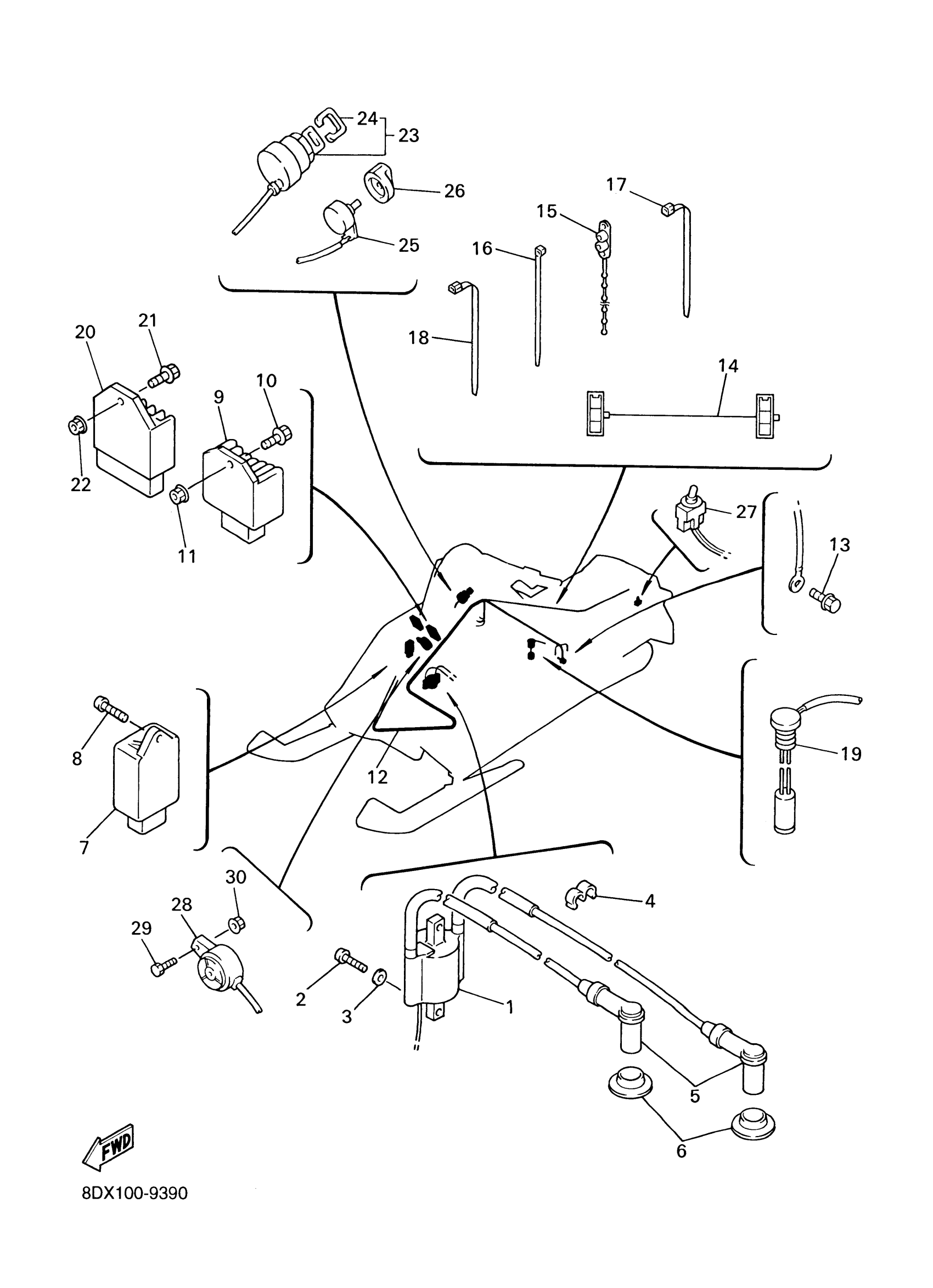

Yamaha VT500XLD (VENTURE XL) 8DX2 2000 ELECTRICAL 1 Diagram
#
1
IGNITION COIL ASSY
8DJ-82310-09-00
$111.99
2
SCREW PAN HEAD
98580-06020-00
$8.49
3
WASHER, PLAIN (646)
92990-06600-00
$2.80
4
CLAMP(6M7)
90464-09M31-00
$8.49
5
PLUG CAP ASSY
85G-82370-20-00
$34.99
6
SEAL, PLUG CAP
8V0-82372-00-00
$4.82
7
C.D.I. UNIT ASSY
8DJ-85540-00-00
Unavailable
8
SCREW, TAPPING(65J)
97780-60625-00
Unavailable
9
RECTIFIER & REGULATOR ASSY
8DX-81960-00-00
Unavailable
10
BOLT, FLANGE
95817-06016-00
$2.75
11
NUT, FLANGE(4MV)
95707-06500-00
$1.23
12
WIRE HARNESS ASSY
8DX-82590-00-00
Unavailable
13
BOLT, FLANGE
95817-06010-00
$4.73
14
WIRE, LEAD
8CR-8471G-00-00
Unavailable
15
CLAMP
90464-20031-00
Unavailable
16
CLAMP(4FM)
90464-15195-00
Unavailable
17
CLAMP(4FM)
90464-15195-00
Unavailable
18
CLAMP
90464-13077-00
Unavailable
19
OIL LEVEL GAUGE ASSY
8CR-85720-02-00
Unavailable
20
VOLTAGE REGULATOR ASSY
8AB-81910-00-00
Unavailable
21
BOLT, FLANGE
95817-06016-00
$2.75
22
NUT, FLANGE(4MV)
95707-06500-00
$1.23
23
MAIN SWITCH ASSY
8AB-82510-01-00
Unavailable
24
CAP, KEY
526-82579-00-00
Unavailable
25
RESISTOR, VARIABLE
8CR-87283-00-00
Unavailable
26
KNOB, VARIABLE RESISTOR
8AB-87284-00-00
Unavailable
27
. SWITCH
8CY-82917-00-00
Unavailable
28
BUZZER
8CW-83383-00-00
Unavailable
29
BOLT(3JK)
97027-05020-00
Unavailable
30
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
