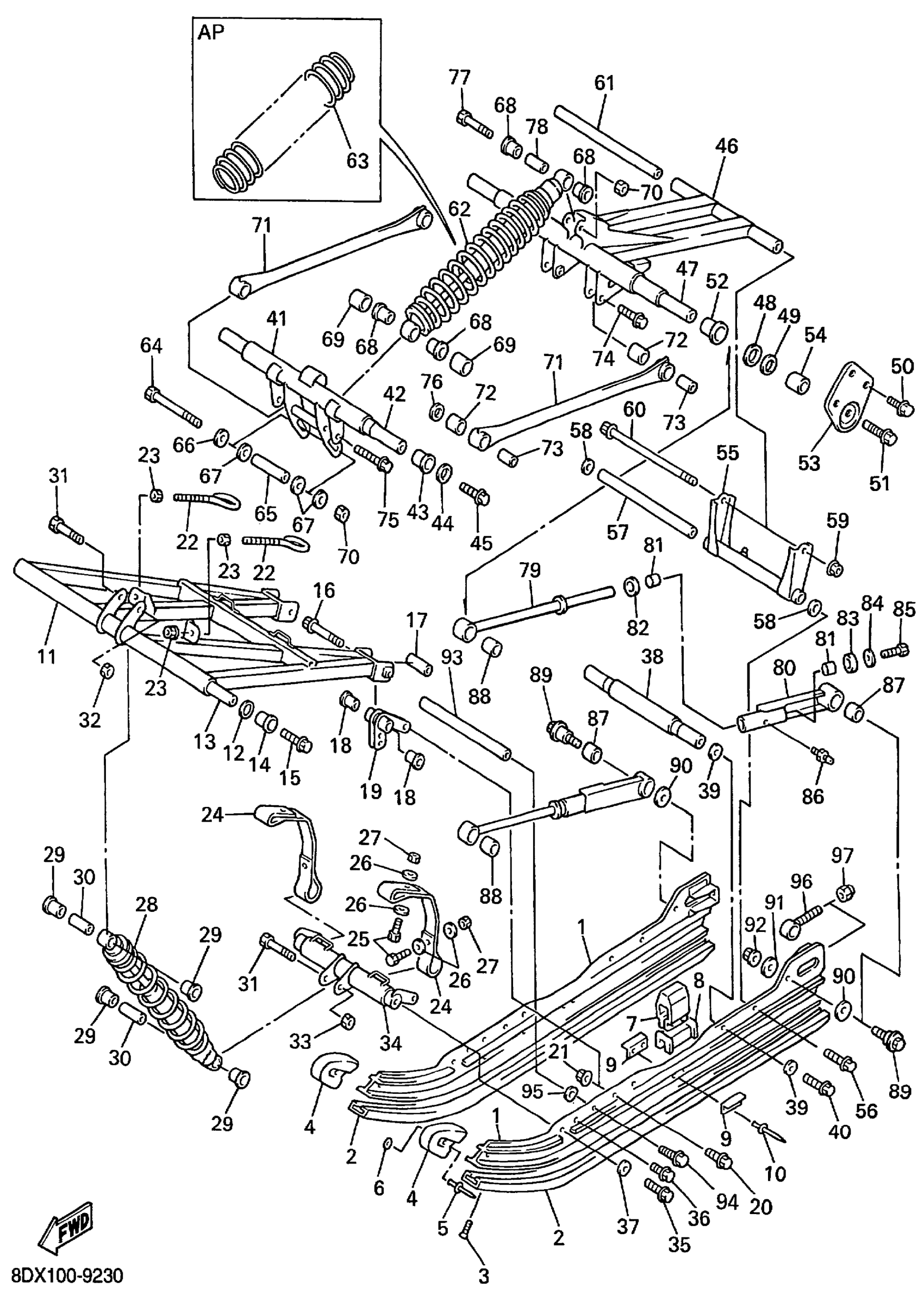

Yamaha VT500XLC (VENTURE 500 XL) 8DX1 1999 TRACK SUSPENSION 2 Diagram

#

Description
Price

1

FRAME, SLIDING

8CP-W4741-00-00

Unavailable

2

136 BLACK HYFAX

SMA-8CW92-70-BK

$28.00

3

SCREW, CROSSRECESS (8G6)

90151-06005-00

$7.18

4

RUNNER, SLIDING 2

8ED-47422-00-00

$42.54

5

RIVET BLIND

90267-48194-00

$2.20

6

WASHER, PLATE(8CM)

90201-047R8-00

$2.31

7

DAMPER 2

8CM-47457-00-00

$8.78

8

SPACER

8CM-47341-00-00

$7.37

9

PLATE, DAMPER

8AX-47458-00-00

$8.08

10

RIVET, BLIND (8K4)

90267-48062-00

$3.38

11

ARM, PIVOT 1

8CV-47331-01-00

$286.00

12

WASHER, PLATE(8CJ)

90201-210U0-00

$7.77

13

SHAFT 1

8CR-47465-00-00

$77.26

14

BUSH, SOLID(8CJ)

90381-19111-00

$11.82

15

BOLT (8V0)

90109-10771-00

$5.00

16

BOLT, FLANGE

90105-10029-00

$3.23

17

COLLAR(8CJ)

90387-1009T-00

$19.80

18

BUSH, SOLID(8CJ)

90381-15112-00

$7.03

19

BRACKET 1

8CR-47415-00-00

Unavailable

20

BOLT, FLANGE(3GD)

95817-10025-00

$6.17

21

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

22

HOOK 3

8CR-47448-00-00

$14.94

23

NUT, FLANGE(JN5)

95707-08500-00

$1.49

24

STOPPER 1

8CR-47495-00-00

$58.96

25

BOLT, HEXAGON

97017-06025-00

$2.98

26

WASHER, PLATE

90201-06747-00

$6.17

27

NUT, NYLON

95707-06300-00

$3.20

28

SHOCK ABSORBER 2

8DX-47481-00-00

Unavailable

29

COLLAR (8U7)

90387-145G7-00

$9.65

30

COLLAR (8U7)

90387-105G5-00

$7.35

31

BOLT(88R)

90101-10738-00

$6.28

32

NUT, SELF LOCKING (23X)

90185-10120-00

$4.91

33

NUT, U

95617-10100-00

$6.18

34

BRACKET 4

8CR-47418-10-00

Unavailable

35

BOLT, FLANGE

95817-10030-00

$6.17

36

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

37

WASHER, PLATE (4X7)

90201-105A2-00

$6.68

38

SHAFT 4

84J-47486-00-00

Unavailable

39

WASHER, PLATE (17K)

90201-106F2-00

$7.66

40

BOLT, FLANGE

95817-10030-00

$6.17

41

BRACKET 2

8CR-47416-10-00

Unavailable

42

SHAFT 6

8CR-47488-00-00

Unavailable

43

BUSH, SOLID(8CM)

90381-22099-00

$9.85

44

WASHER, PLATE(1KE)

90201-207J5-00

$2.32

45

BOLT (8V0)

90109-10771-00

$5.00

46

ARM, PIVOT 2

8CR-47332-10-00

$225.54

47

SHAFT 2

8CY-47475-01-00

$127.06

48

WASHER, PLATE (8V2)

90201-251G8-00

$7.49

49

WASHER, PLATE(8CJ)

90201-250T6-00

$7.43

50

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

51

BOLT, FLANGE

95817-10030-00

$6.17

52

BUSH, SOLID(8CJ)

90381-28108-00

$12.18

53

BRACKET, REAR 2

8CW-47425-00-00

Unavailable

54

COLLAR

90387-2510A-00

Unavailable

55

BRACKET 3

8CR-47417-01-00

Unavailable

56

BOLT, FLANGE

95817-10030-00

$6.17

57

SHAFT 3

82M-47485-02-00

Unavailable

58

WASHER PLATE (789)

90201-10136-00

$7.26

59

NUT, SELF-LOCKING

90185-08169-00

$7.09

60

BOLT, FLANGE

95827-08220-00

Unavailable

61

COLLAR (8U7)

90387-083G6-00

$9.75

62

SHOCK ABSORBER

8DX-47480-00-00

Unavailable

63

SPRING 1

8CW-47489-00-00

$276.48

64

BOLT

90101-10782-00

Unavailable

65

COLLAR(8CJ)

90387-1009S-00

$18.00

66

WASHER, PLATE

90201-10039-00

$6.42

67

WASHER, PLATE(8BT)

90201-100U1-00

Unavailable

68

BUSH, SOLID(8CM)

90381-14101-00

$7.48

69

COLLAR(8CM)

90387-1404R-00

$28.72

70

NUT, U

95617-10100-00

$6.18

71

ROD, RELAY

8CR-47494-01-00

Unavailable

72

BUSH, SOLID(8CJ)

90381-14109-00

$7.60

73

COLLAR(87A)

90387-100X3-00

$3.49

74

BOLT, FLANGE

95817-10035-00

$6.85

75

BOLT, FLANGE

95814-10040-00

$3.69

76

WASHER, PLATE(8BT)

90201-100U1-00

Unavailable

77

BOLT(88R)

90101-10738-00

$6.28

78

COLLAR (8U7)

90387-105G5-00

$7.35

79

ROD, CONTROL 1

8CR-4745A-01-00

$68.28

80

ROD, CONTROL 2

8CR-4745B-00-00

Unavailable

81

BUSH, BIMETAL FORMED(8CJ)

90384-16251-00

$6.17

82

WASHER, PLATE(8CJ)

90202-16229-00

$1.78

83

WASHER, PLATE(8BT)

90202-16230-00

Unavailable

84

WASHER, PLATE (17K)

90201-106F2-00

$7.66

85

BOLT(6TD)

97017-10025-00

$6.82

86

NIPPLE, GREASE

93700-06M03-00

$7.15

87

BUSH, SOLID(8CM)

90380-22232-00

$20.92

88

BUSH, SOLID(8CJ)

90380-28235-00

$24.80

89

SCREW, REAR PIVOT

8DF-47367-09-00

$19.29

90

WASHER, PLATE(JN9)

90201-100S2-00

$6.14

91

WASHER, PLATE

90201-101U2-00

$5.37

92

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

93

SHAFT 3

82M-47485-02-00

Unavailable

94

BOLT, FLANGE

95817-10030-00

$6.17

95

WASHER, PLATE (26H)

90201-102G9-00

$6.38

96

COLLAR 3

8K2-47479-01-00

$25.69

97

NUT, NYLON

95707-10300-00

$6.68
