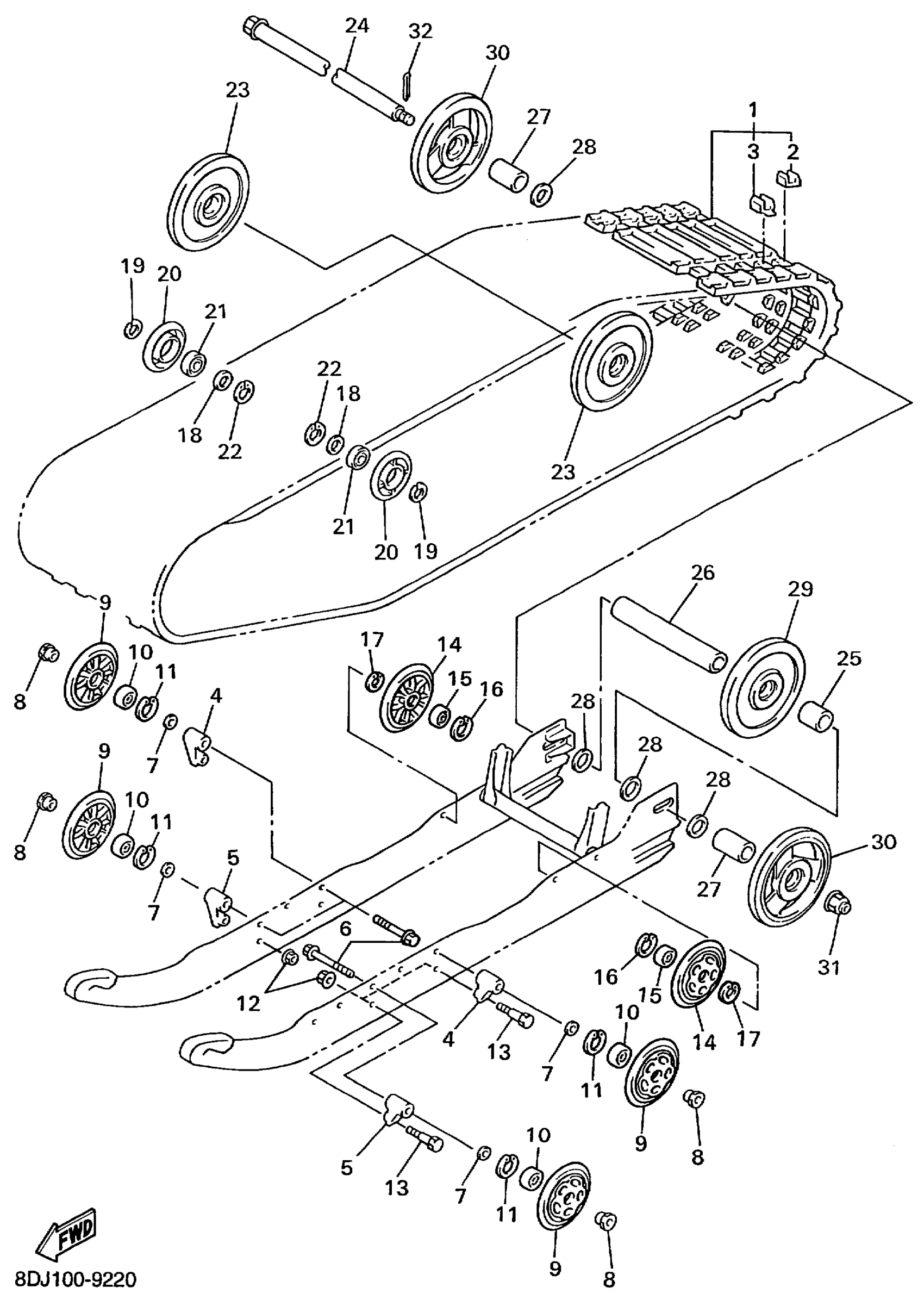

Yamaha VT500XLC (VENTURE 500 XL) 8DX1 1999 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

TRACK ASY

8BN-47110-10-00

Unavailable

2

PLATE, REINFORCEMENT

8CR-47113-00-00

$3.95

3

METAL, SLIDE

8CR-47115-00-00

$6.72

4

BRACKET 7

8CM-47419-10-00

$24.66

5

BRACKET 7

8CM-47419-20-00

Unavailable

6

BOLT, FLANGE

90105-10029-00

$3.23

7

WASHER, PLATE (17K)

90201-106F2-00

$7.66

8

NUT(8CM)

90179-10670-00

$11.51

9

SUSPENTION WHEEL COMP

87M-47320-00-00

$77.13

10

BEARING(8AB)

93306-00444-00

$35.70

11

CIRCLIP(5U8)

99009-42500-00

$6.77

12

NUT, SELF-LOCKING

90185-08169-00

$7.09

13

BOLT(8CM)

90101-08774-00

$4.63

14

SUSPENTION WHEEL COMP

87M-47320-00-00

$77.13

15

BEARING(8AB)

93306-00444-00

$35.70

16

CIRCLIP(5U8)

99009-42500-00

$6.77

17

CIRCLIP(1AR)

99009-20400-00

$6.17

18

COLLAR(8AB)

90387-2004V-00

$9.15

19

CIRCLIP(1AR)

99009-20400-00

$6.17

20

SUSPENSION WHEEL COMP.

8H8-47320-00-00

$53.83

21

BEARING(8AB)

93306-00444-00

$35.70

22

CIRCLIP(5U8)

99009-42500-00

$6.77

23

GUIDE WHEEL ASSY

8CR-47550-00-00

$22.15

24

REAR AXLE COMP.

8L8-47520-02-00

$83.57

25

COLLAR

90387-2012E-00

$8.09

26

COLLAR

90387-2012C-00

$21.37

27

COLLAR

90387-2012D-00

$12.03

28

WASHER, PLATE(89W)

90201-205R6-00

$10.68

29

GUIDE WHEEL ASSY

8CR-47550-10-00

Unavailable

30

WHEEL SILVER PLASTIC ASSY

8DF-47550-01-SL

Unavailable

31

NUT, SELF-LOCKING (8BF)

95607-14200-00

$10.17

32

PIN, COTTER

91401-30025-00

$6.18
