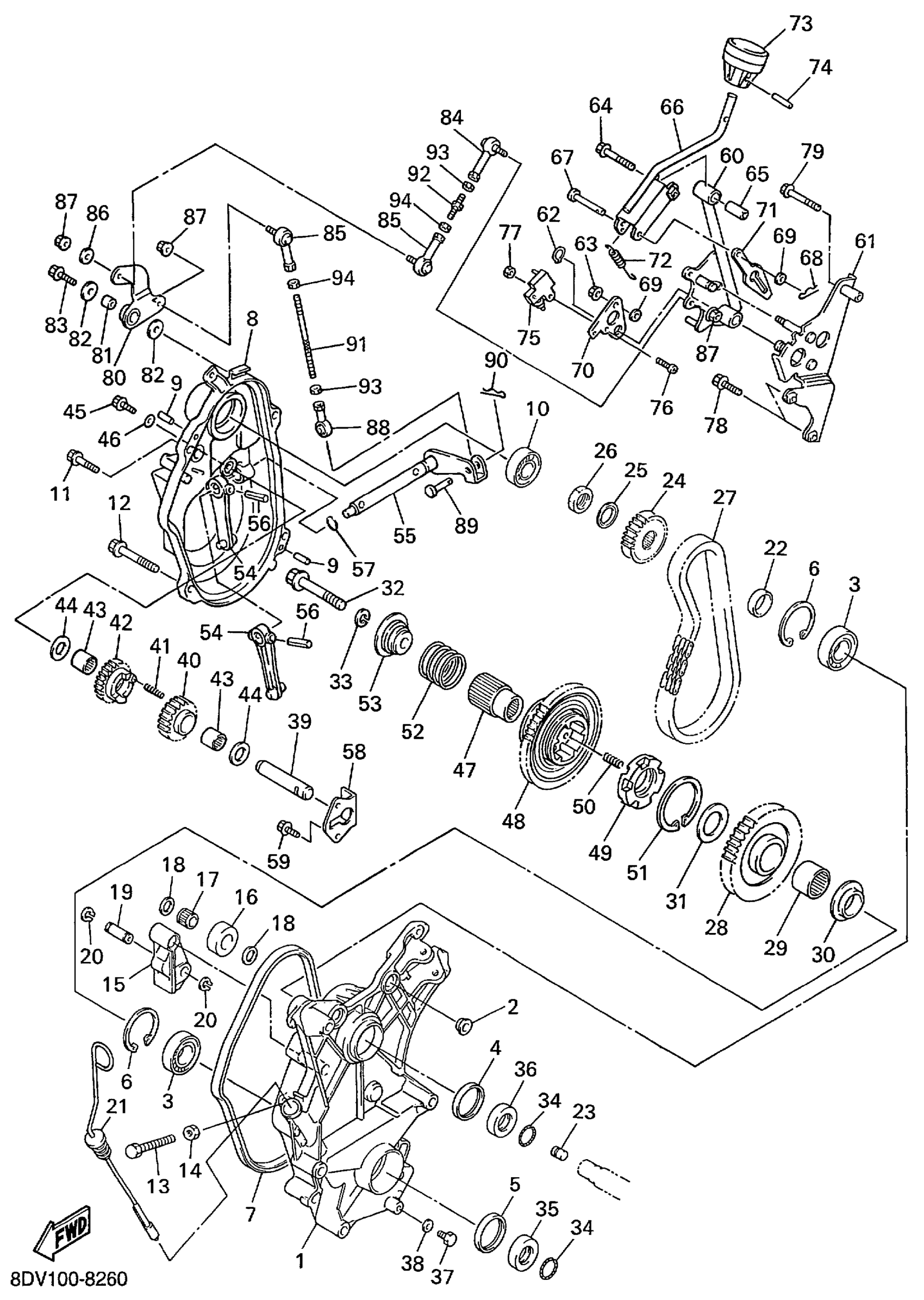

Yamaha VT500XLC (VENTURE 500 XL) 8DX1 1999 TRACK DRIVE 2 Diagram

HOUSING, CHAIN

8CR-47541-01-00

$428.52

NUT(8CJ)

90179-10679-00

$6.71

BEARING

93306-20592-00

$50.25

OIL SEAL

93102-35473-00

$28.01

OIL SEAL (36R)

93102-35318-00

$21.11

CIRCLIP(26H)

99009-52500-00

$10.68

RING, HOUSING/GASKET

8CR-47558-02-00

Unavailable

. CAP, HOUSING

8CW-47543-02-00

Unavailable

PIN, DOWEL (168)

93606-20044-00

$2.12

BEARING(1GJ)

93306-20458-00

$36.19

BOLT, FLANGE(6TA)

95817-08030-00

$6.17

BOLT, FLANGE

95817-10060-00

$5.20

BOLT, HEXAGON (8F3)

90101-10357-00

Unavailable

NUT(6TD)

95337-10600-00

$6.98

HOLDER

8CR-47613-00-00

Unavailable

WHEEL

8CR-47612-00-00

Unavailable

BRG,CYL-CAL ROLLER 11G KY

93315-21227-00

$39.37

WASHER, PLATE (5N6)

90201-127E1-00

$3.68

PIN(8CJ)

90249-12227-00

Unavailable

CIRCLIP(10Y)

99009-12400-00

$3.08

LEVEL, OIL

8CR-47546-00-00

Unavailable

COLLAR

90387-2508D-00

Unavailable

PLUG, OIL

82M-17699-00-00

$11.28

SPROCKET, CHAIN DRIVE (21T)

89J-17682-10-00

Unavailable

WASHER 810475810000

90208-22001-00

$7.35

NUT (821-47579-00)

90170-22094-00

$5.34

CHAIN (68L)

94860-02068-00

Unavailable

. SPROCKET, CHAIN DRIVEN (39T)

8CW-47587-90-00

Unavailable

BEARING, CYLINDRICAL(8DA)

93317-33179-00

$43.08

COLLAR(8DA)

90387-2008G-00

$23.71

WASHER, PLATE(8DA)

90201-320S3-00

$7.34

BOLT, FLANGE(7LU)

95817-10070-00

$5.11

WASHER(6TA)

92907-10100-00

$6.18

O-RING (169)

93210-25071-00

$7.51

COLLAR(8CJ)

90387-2508C-00

$39.00

COLLAR

90387-2511J-00

Unavailable

BOLT(8BC)

97007-08014-00

Unavailable

WASHER, SEAL(8AB)

90210-08017-00

$6.91

SHAFT, 1

8CW-1761A-00-00

$58.02

SPROCKET, DRIVE

8DM-17692-00-00

Unavailable

SPRING COMPRESSION278185450000

90501-06022-00

$6.17

REVERSE GEAR SUB-ASSY 1 (RGEAR

8CW-W1714-00-00

$251.37

BEARING, CYLINDRICAL(8DA)

93317-21578-00

$37.81

WASHER PLATE (3L6)

90201-16245-00

$8.51

BOLT, FLANGE

95817-06016-00

$1.49

WASHER, SEAL (7G5)

90210-06006-00

$5.72

JOURNAL 1

8CW-47571-00-00

$150.66

GEAR, REVERSE WHEEL 1

8CW-17243-00-00

$304.40

DOG, TRANSMISSION SHIFT

8CW-17492-00-00

$193.49

SPRING, COMPRESSION(8DA)

90501-066J5-00

$1.75

CIRCLIP(8DA)

93440-39175-00

$19.00

. SPRING, COMPRESSION

90501-326J6-00

Unavailable

COLLAR

8CW-47564-01-00

$32.92

FORK, SHIFT 1

8ER-18511-00-00

$76.75

. SHAFT

8CW-18197-00-00

Unavailable

PIN, SPRING(8DA)

91609-50022-00

$6.78

O-RING (328)

93210-12131-00

$6.78

PLATE

8CW-47591-00-00

$11.85

BOLT, FLANGE

95817-06016-00

$1.49

. ARM, SHIFT

8CW-18112-01-00

Unavailable

GUIDE, PLATE STOPPER

8CW-18161-01-00

$86.05

CIRCLIP(10Y)

99009-12400-00

$3.08

NUT,SELF-LOCKING

95607-06200-00

$10.25

BOLT, FLANGE

95817-06035-00

$5.37

. COLLAR

90387-06605-00

Unavailable

LEVER, SHIFT 4

8CW-18152-10-00

$53.11

PIN, CLEVIS (2F9)

91701-06035-00

$5.72

CLIP (156-83525-00)

90468-10050-00

$2.31

WASHER(6TA)

92907-06200-00

$6.18

PLATE, SHIFT ARM

8CW-1811A-00-00

$7.80

. GUIDE, SHIFT RETURN SPRING

8CW-18153-00-00

Unavailable

SPRING, TENSION (36X)

90506-14343-00

$3.20

KNOB, SHIFT LEVER

8CL-18174-00-00

$33.98

PIN,SPRING (648)

91690-40022-00

$5.69

SWITCH

J51-82817-00-00

$121.26

. SCREW, BIND

98907-04016-00

Unavailable

NUT, U (7LY)

95617-04100-00

$6.92

BOLT, FLANGE

95817-06025-00

$1.46

BOLT, FLANGE

95817-06040-00

$4.54

LEVER

8CW-18198-00-00

Unavailable

COLLAR

90387-06197-00

$6.17

WASHER, PLATE(36Y)

90201-063J2-00

$4.45

BOLT, FLANGE

95817-06025-00

$1.46

JOINT, UNIVERSAL 2

J45-23845-00-00

$42.57

JOINT 2

88T-18157-00-00

$36.11

WASHER, PLATE (8K2)

90201-06778-00

$3.69

NUT,SELF-LOCKING

95607-06200-00

$10.25

JOINT 1

8CW-18156-00-00

Unavailable

PIN, COTTER (1W2)

91701-06022-00

$1.83

CLIP (156-83525-00)

90468-10050-00

$2.31

JOINT, ROD 1

88T-18116-01-00

Unavailable

ROD, SHIFT

26H-18115-00-00

$13.22

NUT, HEXAGON

95314-06600-00

$1.32

NUT (2H9)

90170-06228-00

$5.20
