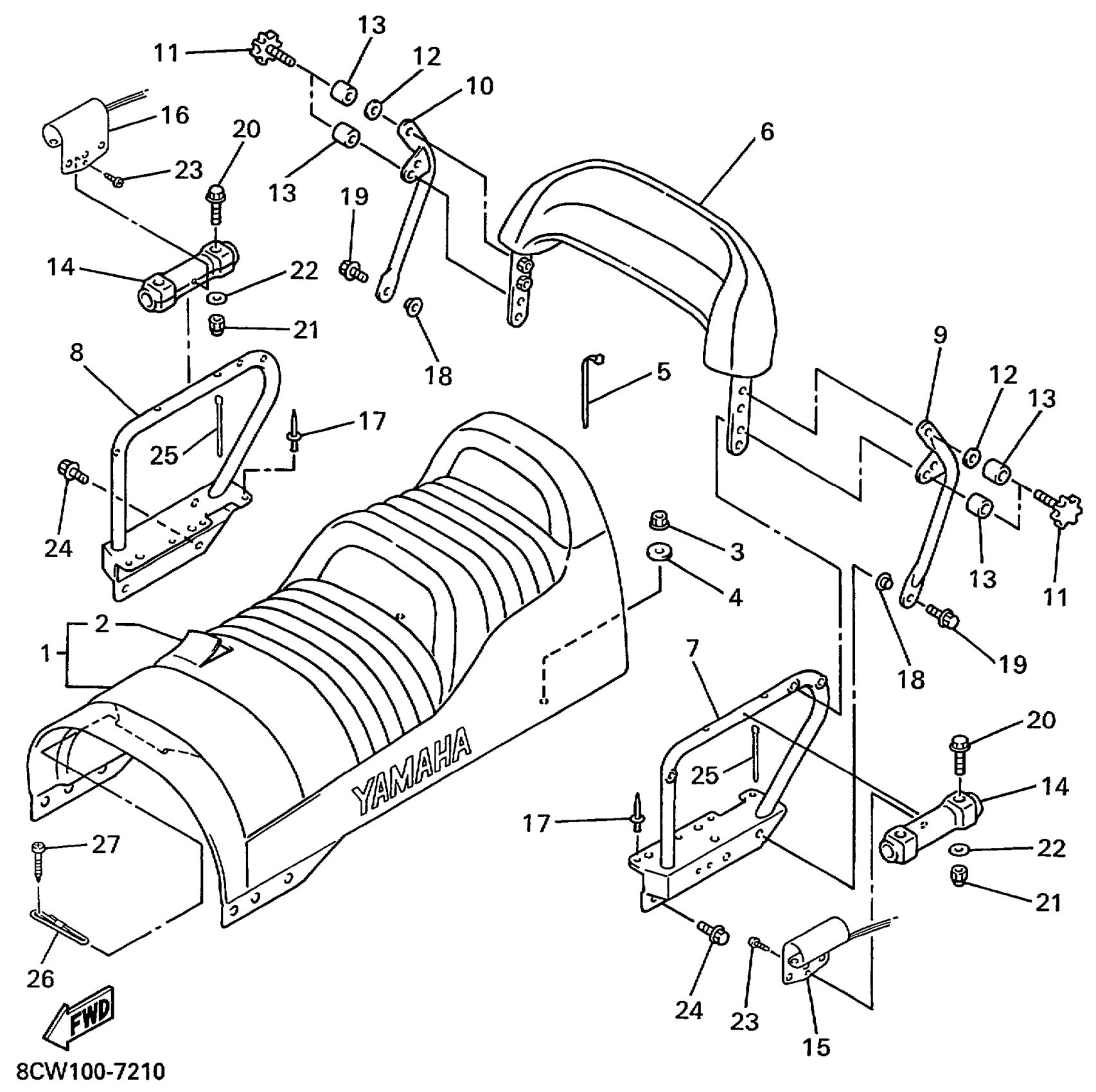

Yamaha VT500XLC (VENTURE 500 XL) 8DX1 1999 SEAT Diagram

#

Description
Price

1

. DOUBLE SEAT ASSY

8CY-24730-20-00

Unavailable

2

COVER, SEAT

8CY-2470F-20-00

$461.18

3

NUT, NYLON

95717-08300-00

$2.57

4

WASHER, PLATE (4W3)

90201-086A3-00

$6.29

5

CLAMP

90464-13077-00

$6.68

6

SEAT BACK ASSY

8CW-24790-10-00

$197.97

7

BRACKET, ASSIST GRIP 1

8CW-2474H-01-00

$134.91

8

BRACKET, ASSIST GRIP 2

8CW-2474J-01-00

$134.91

9

BRACKET, SEAT BACK

8CW-24797-00-00

$40.85

10

BRACKET, SEAT

8CW-2479L-00-00

$40.15

11

BODY, SEAT LOCK

8CW-2479H-00-00

$25.69

12

WASHER, PLATE (8M2)

90201-083A8-00

$2.57

13

DAMPER, SEAT

8CW-24737-00-00

$9.88

14

. ASSIST, GRIP

8CW-2474A-00-00

Unavailable

15

ASSIST GRIP WARMER ASSY 1

8CW-2474B-00-00

$155.09

16

. ASSIST GRIP WARMER ASSY 2

8CW-2474C-00-00

Unavailable

17

RIVET, BLIND(8CH)

90267-47187-00

$1.84

18

COLLAR

90387-08079-00

$7.49

19

BOLT, FLANGE(JN5)

95817-08016-00

$4.12

20

BOLT, FLANGE

95817-06040-00

$4.54

21

NUT(4MY)

95307-06800-00

$2.86

22

WASHER(6TA)

92907-06200-00

$6.18

23

SCREW, TAPPING(4MV)

97707-50016-00

$1.16

24

BOLT, FLANGE

95817-08014-00

$1.94

25

CLAMP

90464-13077-00

$6.68

26

BAND, SEAT

8CR-24734-00-00

Unavailable

27

SCREW, BINDING

90154-06040-00

Unavailable
