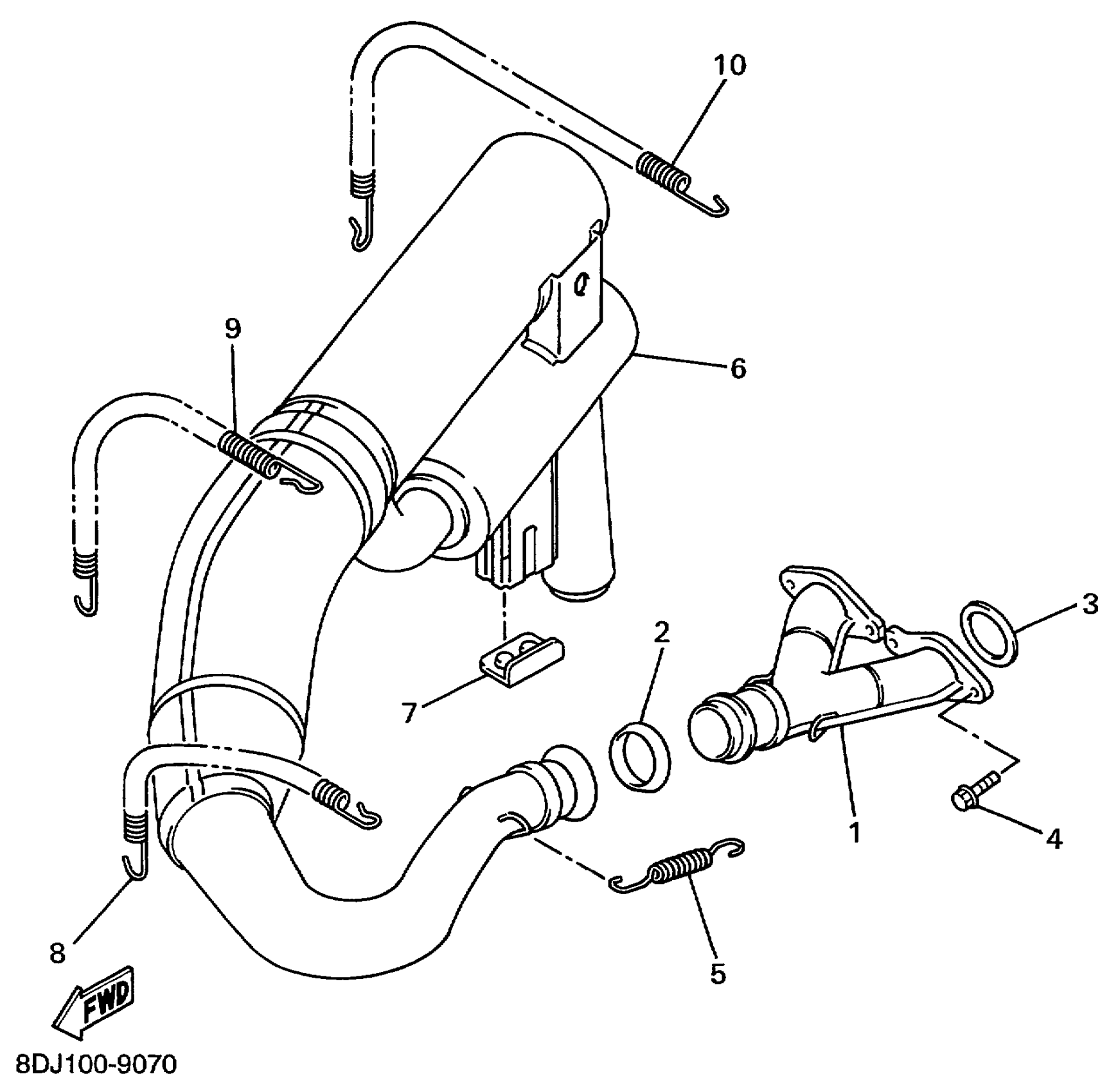

Yamaha VT500XLC (VENTURE 500 XL) 8DX1 1999 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSY 1

8DJ-14610-00-00

$146.03

2

GASKET, MUFFLER

8AB-14714-01-00

$63.02

3

GASKET, EXHAUST PIPE

89A-14613-00-00

$13.42

4

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

5

SPRING, TENSION (8R7)

90506-20272-00

$9.40

6

MUFFLER ASSY 1

8DJ-14710-01-00

$881.99

7

PROTECTOR, MUFFLER 2

83R-14728-01-00

$29.25

8

SPRING, TENSION

90506-16518-00

$12.85

9

SPRING, TENSION

90506-16497-00

Unavailable

10

SPRING, TENSION

90506-18519-00

Unavailable
