Description

Price

1

GEAR 1

8DM-1760A-18-00

Unavailable

2

SCREW, CROSSRECESSED ROUND

90150-08008-00

$4.82

3

DAMPER

8CW-82176-00-00

Unavailable

4

PIPE (L320)

8CW-8235W-01-00

Unavailable

5

CLIP(41W)

90467-08092-00

$9.49

6

BRACKET, BATTERY

8DX-2199G-00-00

$75.99

7

BOLT, FLANGE

95817-06014-00

Unavailable

8

SEAT, BATTERY

84N-82122-00-00

$6.99

9

BAND, BATTERY

8CY-82131-00-00

$12.99

10

WIRE, PLUS LEAD

8DY-82115-00-00

Unavailable

11

STARTER RELAY ASSY (RC19-016)

3EL-81940-02-00

$28.99

12

BOLT, SMALL FLANGE

95027-06008-00

$7.99

13

COVER, BATTERY

8DX-82129-01-00

Unavailable

14

. HOLDER, RELAY

8CY-81952-00-00

Unavailable

15

CLAMP(83R)

90461-08113-00

Unavailable

16

BOLT, FLANGE

95817-06014-00

Unavailable

17

NUT,SELF-LOCKING

95607-06200-00

Unavailable

18

YB16ALA2 YUASA BATTERY

YB1-6ALA2-00-00

Unavailable

19

SHIELD, HEAT

8DX-2199H-00-00

Unavailable

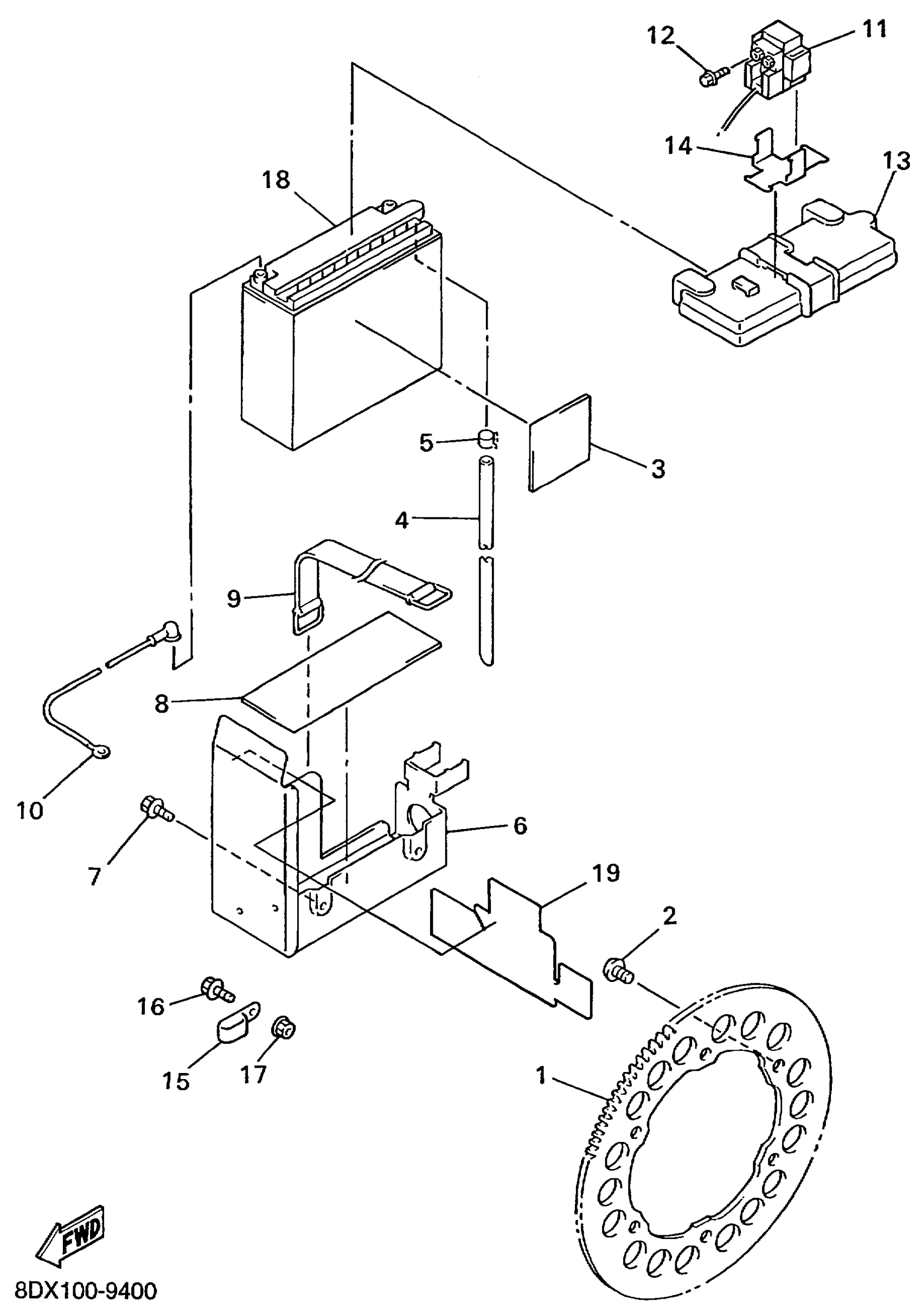

Yamaha VT500XLC (VENTURE 500 XL) 8DX1 1999 ELECTRICAL 2 Diagram

GEAR 1

SCREW, CROSSRECESSED ROUND

DAMPER

PIPE (L320)

CLIP(41W)

BRACKET, BATTERY

BOLT, FLANGE

SEAT, BATTERY

BAND, BATTERY

WIRE, PLUS LEAD

STARTER RELAY ASSY (RC19-016)

BOLT, SMALL FLANGE

COVER, BATTERY

. HOLDER, RELAY

CLAMP(83R)

BOLT, FLANGE

NUT,SELF-LOCKING

YB16ALA2 YUASA BATTERY

SHIELD, HEAT
