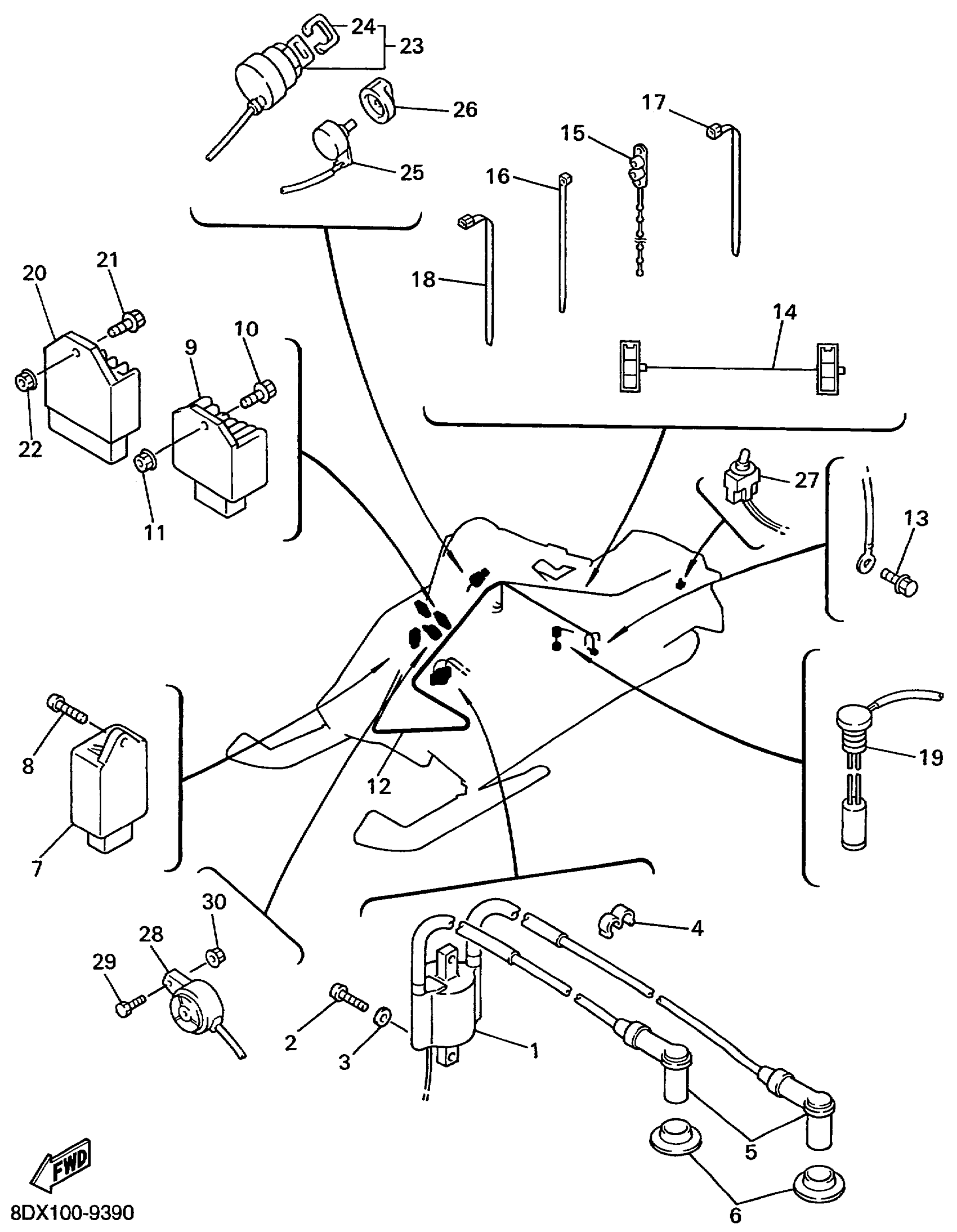

Yamaha VT500XLC (VENTURE 500 XL) 8DX1 1999 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITION COIL ASSY

8DJ-82310-09-00

$102.80

2

SCREW PAN HEAD

98580-06020-00

$6.08

3

WASHER, PLAIN (646)

92990-06600-00

$2.43

4

CLAMP(6M7)

90464-09M31-00

$5.89

5

PLUG CAP ASSY

85G-82370-20-00

$27.52

6

SEAL, PLUG CAP

8V0-82372-00-00

$3.67

7

C.D.I. UNIT ASSY

8DJ-85540-00-00

Unavailable

8

SCREW, TAPPING(65J)

97780-60625-00

$2.70

9

RECTIFIER & REGULATOR ASSY

8DX-81960-00-00

Unavailable

10

BOLT, FLANGE

95817-06016-00

$1.49

11

NUT, FLANGE(4MV)

95707-06500-00

$1.49

12

WIRE HARNESS ASSY

8DX-82590-00-00

Unavailable

13

BOLT, FLANGE

95817-06010-00

$3.85

14

WIRE, LEAD

8CR-8471G-00-00

Unavailable

15

CLAMP

90464-20031-00

$2.42

16

CLAMP(4FM)

90464-15195-00

Unavailable

17

CLAMP(4FM)

90464-15195-00

Unavailable

18

CLAMP

90464-13077-00

Unavailable

19

OIL LEVEL GAUGE ASSY

8CR-85720-02-00

$43.71

20

VOLTAGE REGULATOR ASSY

8AB-81910-00-00

Unavailable

21

BOLT, FLANGE

95817-06016-00

$1.49

22

NUT, FLANGE(4MV)

95707-06500-00

$1.49

23

MAIN SWITCH ASSY

8AB-82510-01-00

Unavailable

24

CAP, KEY

526-82579-00-00

Unavailable

25

RESISTOR, VARIABLE

8CR-87283-00-00

Unavailable

26

KNOB, VARIABLE RESISTOR

8AB-87284-00-00

Unavailable

27

. SWITCH

8CY-82917-00-00

Unavailable

28

BUZZER

8CW-83383-00-00

Unavailable

29

BOLT(3JK)

97027-05020-00

Unavailable

30

NUT, FLANGE(3GM)

95707-05500-00

Unavailable
