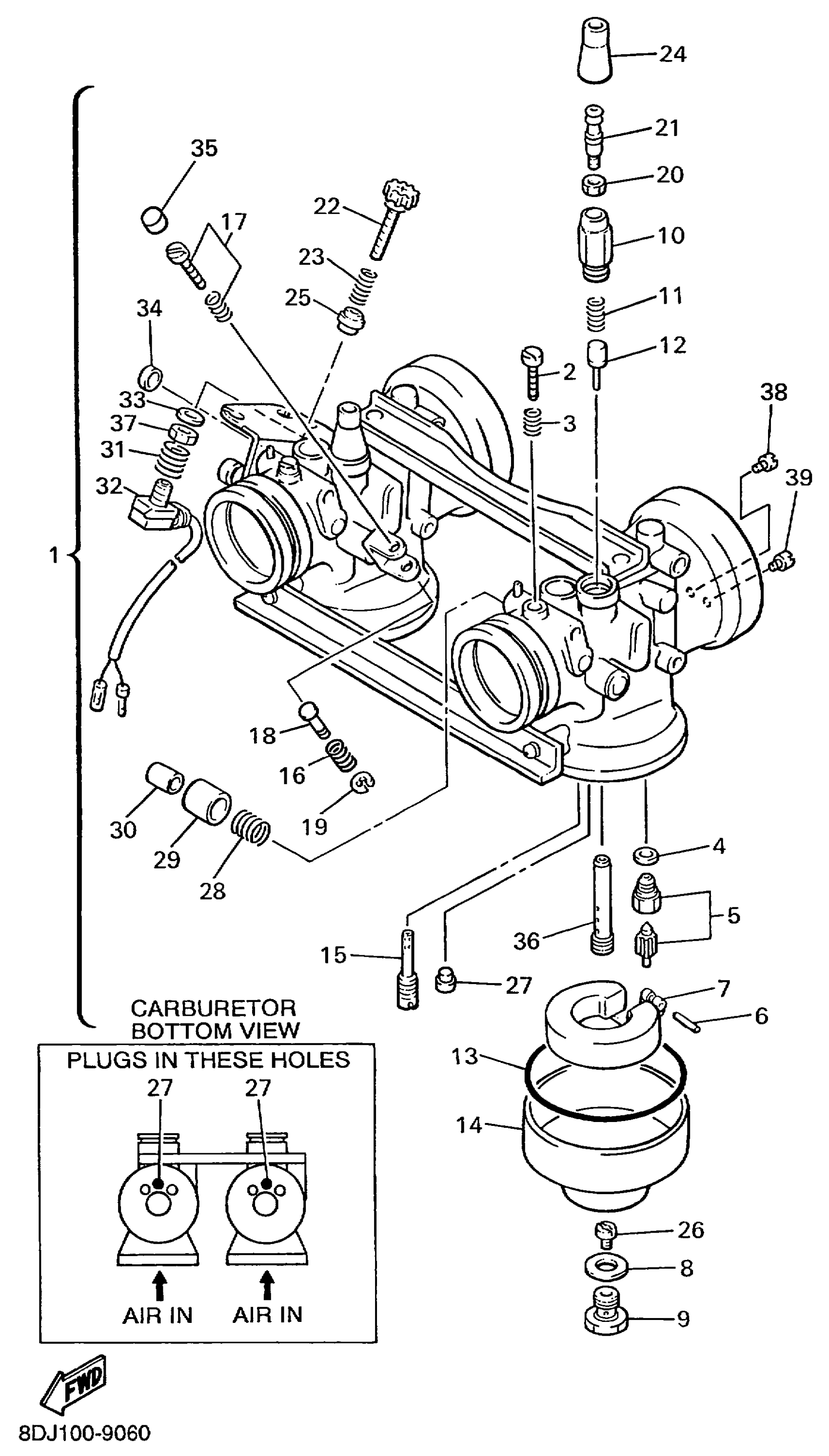

Yamaha VT500XLC (VENTURE 500 XL) 8DX1 1999 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY

8DJ-14100-01-00

$818.99

2

SCREW, PILOT ADJUSTING

620-14211-00-00

$17.41

3

SPRING, AIR ADJUSTING

82A-14134-00-00

$8.22

4

WASHER, VALVE SEAT

214-14195-00-00

$6.11

5

NEEDLE VALVE ASSY

8DJ-14190-15-00

$46.49

6

PIN,FLOAT

8M6-14186-00-00

$9.46

7

FLOAT ASSY

8M6-14185-00-00

$85.35

8

GASKET

286-14198-00-00

$7.45

9

HOLDER

8M6-14261-00-00

$39.83

10

CAP, PLUNGER

8G8-14174-00-00

$23.77

11

SPRING, PLUNGER

127-14135-00-00

$6.40

12

PLUNGER, STARTER

8G8-14171-00-00

$26.92

13

GASKET, FLOAT CHAMBER

8M6-14126-00-00

$16.37

14

BODY, FLOAT CHAMBER

8M6-14181-00-00

$48.26

15

JET, PILOT (# 70)

193-14142-70-00

$9.49

15

. JET, PILOT (#75)

193-14142-75-00

Unavailable

15

JET, PILOT (# 80)

193-14142-80-00

$10.09

16

. SPRING, THROTTLE STOP

3F7-14133-00-00

Unavailable

17

. STOP SCREW SET

12R-1490K-00-00

Unavailable

18

. ROD, PUSH

584-14992-00-00

Unavailable

19

. CLIP

256-14937-00-00

Unavailable

20

NUT, WIRE ADJUSTING

802-14161-00-00

$6.65

21

CABLE ADJUST SCREW SET

12G-14106-00-00

$17.66

22

SCREW,THROTTLE

80L-14122-00-00

$35.71

23

SPRING

8X0-14500-00-00

$17.91

24

CAP

8A7-14169-00-00

$15.80

25

RING

8X0-14184-00-00

$20.43

26

JET, MAIN (#125)

3G2-14231-25-00

Unavailable

26

JET, MAIN (#130)

3G2-14231-26-A0

$10.06

26

JET, MAIN (#135)

3G2-14231-27-00

$10.60

26

JET, MAIN (#145)

3G2-14231-29-00

$11.83

26

JET,MAIN #122.5

3G2-1423A-75-A1

$10.32

26

JET,MAIN #132.5

3G2-1423A-77-00

$12.17

26

JET,MAIN #137.5

3G2-1423A-78-00

$10.57

26

JET,MAIN #142.5

3G2-1423A-79-00

$8.02

26

. JET, MAIN (#1213)

3G2-1423E-48-00

Unavailable

26

JET, MAIN (#126.3)

3G2-1423E-50-00

$11.38

26

JET, MAIN (#128.8)

3G2-1423E-51-00

$9.98

26

JET, MAIN (#131.3)

3G2-1423E-52-00

$11.18

26

JET, MAIN(#133.8)

3G2-1423E-53-00

$11.47

26

JET, MAIN (#136.3)

3G2-1423E-54-00

Unavailable

26

JET, MAIN (#138.8)

3G2-1423E-55-00

$12.09

26

JET, MAIN (#141.3)

3G2-1423E-56-00

$10.45

26

JET MAIN (#143.8)

3G2-1423E-57-00

$12.58

26

JET, MAIN #148.8

3G2-1423E-59-00

$11.08

27

CAP

8V0-14118-00-00

$12.45

28

. SPRING, THROTTLE 2

80L-14932-00-00

Unavailable

29

COLLAR

80L-14534-00-00

$6.31

30

COLLAR

80L-14535-00-00

$10.28

31

SPRING, THROTTLE STOP

8X0-14133-00-00

$15.40

32

SWITCH, CARBURETOR

87S-8259A-01-00

$73.57

33

WASHER, PLUG SCREW

22F-14117-00-00

$6.38

34

COLLAR

80L-14264-00-00

$6.31

35

. CAP

620-14225-00-00

Unavailable

36

NOZZLE, MAIN

8Y2-14941-3D-00

$38.54

37

NUT

8X0-14358-00-00

$6.80

38

. PILOT JET, AIR (08)

239-14172-08-00

Unavailable

39

. PILOT JET, AIR (08)

239-14172-08-00

Unavailable
