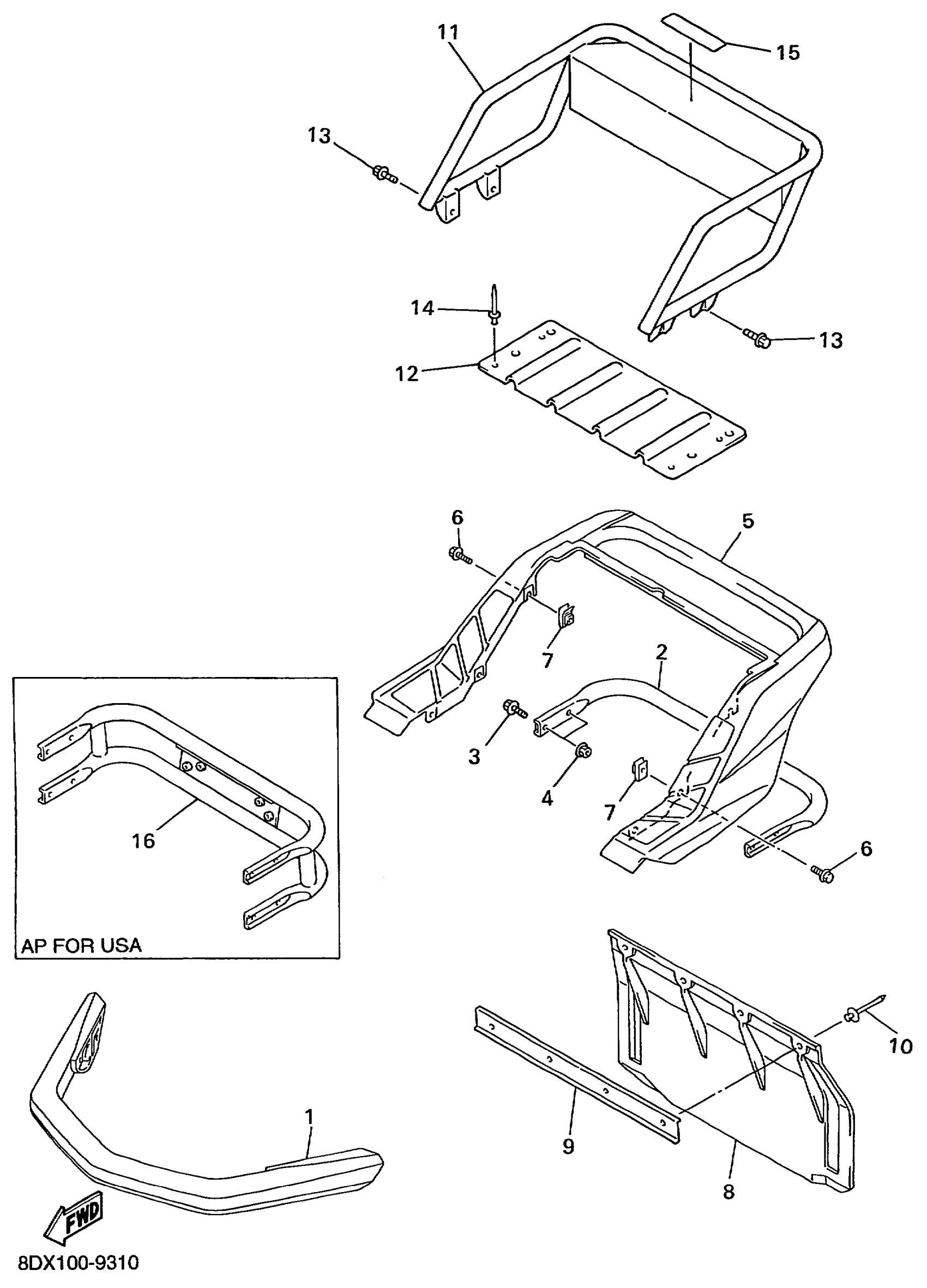

Yamaha VT500XLC (VENTURE 500 XL) 8DX1 1999 BUMPER Diagram

#

Description
Price

1

BUMPER, FRONT 1

8CR-77511-00-00

$150.23

2

BUMPER, REAR 1

8DF-77541-00-00

Unavailable

2

BUMPER, REAR 1

8EB-77541-00-00

Unavailable

3

BOLT, SMALL FLANGE

95027-08016-00

$6.58

4

NUT, FLANGE(JN5)

95707-08500-00

$1.49

5

BUMPER, REAR 2

8CW-77542-00-00

Unavailable

6

BOLT, FLANGE

95817-06016-00

$1.49

7

NUT, SPRING(4ES)

90183-06069-00

$5.81

8

FLAP

8DM-77595-01-00

Unavailable

9

PROTECTOR 6

8DJ-77556-00-00

Unavailable

10

RIVET, BLIND

90267-47200-00

$2.17

11

REAR BUMPER COMP.

8CW-77540-00-00

Unavailable

12

PROTECTOR 4

8CW-77554-00-00

Unavailable

13

BOLT, FLANGE(JN5)

95817-08016-00

$3.93

14

RIVET, BLIND(8CH)

90267-47187-00

$1.80

15

EMBLEM

89X-24897-00-00

Unavailable

16

BUMPER, REAR 1

8EB-77541-00-00

Unavailable
