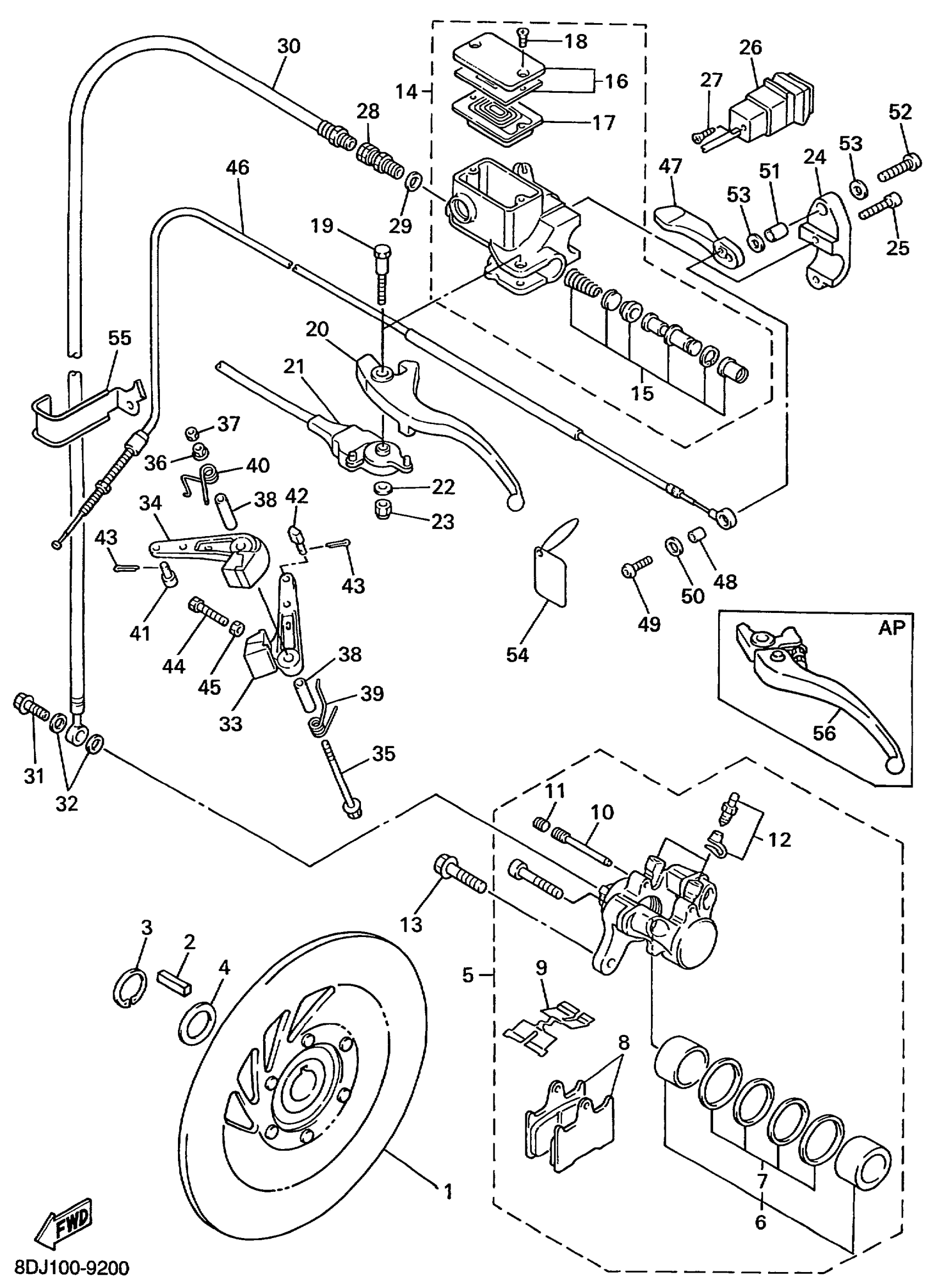

Yamaha VT500XLC (VENTURE 500 XL) 8DX1 1999 BRAKE Diagram

#

Description
Price

1

DISC BRAKE ASSY

8DJ-2581T-00-00

$243.06

2

KEY, SLIDING(88K)

90281-07004-00

$11.12

3

CIRCLIP(8CJ)

93410-27080-00

$2.28

4

WASHER, PLATE

90201-270U5-00

Unavailable

5

CALIPER ASSY (LEFT)

8DJ-2580T-00-00

$564.99

6

PISTON ASSY, CALIPER

8CR-W0057-00-00

$64.74

7

CALIPER SEAL KIT

8CR-W0047-00-00

$18.65

8

BRAKE PAD KIT 2

8DJ-W0046-01-00

Unavailable

9

SUPPORT, PAD

8CR-25919-00-00

Unavailable

10

PIN, PAD

8CR-25924-00-00

$11.26

11

BOLT

8CR-25926-00-00

$5.23

12

BLEED SCREW KIT

8CR-W0048-00-00

$9.71

13

BOLT, WASHER BASED(1AR)

90105-10634-00

$6.41

14

MASTER CYLINDER SUB ASSY

8DF-W2587-40-00

Unavailable

15

CYLINDER KIT, MASTER

8CR-W0041-00-00

$47.42

16

RESERVOIR CAP SET

8CR-W2585-00-00

$35.75

17

DIAPHRAGM, RESERVOIR

55U-25854-00-00

$21.68

18

SCREW, FLAT

98707-04012-00

$1.43

19

BOLT, LEVER

8CR-2589F-00-00

$6.06

20

LEVER 1

8CR-83912-00-00

$39.83

21

STOP SWITCH ASSY

8CR-82530-01-00

$37.85

22

WASHER, PLAIN

8CR-8398X-00-00

$8.77

23

NUT, NYLON

95707-05300-00

$2.74

24

HOLDER, MASTER CYLINDER

8CR-25867-00-00

Unavailable

25

BOLT,SOCKET

91317-06025-00

$2.05

26

BEAM SWITCH ASSY

8K4-83950-01-00

$60.08

27

SCREW

8CR-2589H-00-00

Unavailable

28

JOINT

3LC-25885-00-00

$24.57

29

WASHER, PLATE(481)

90201-10118-00

$2.91

30

HOSE, BRAKE 1

8DF-25872-20-00

Unavailable

31

BOLT, UNION(3GM)

90401-10159-00

$8.85

32

WASHER, PLATE(481)

90201-10118-00

$2.91

33

CALIPER BODY COMP.1

8DJ-25730-00-00

Unavailable

34

CALIPER BODY COMP. 2

8DJ-25740-00-00

$53.80

35

BOLT, FLANGE

90105-08094-00

Unavailable

36

NUT, FLANGE(JN5)

95707-08500-00

$1.49

37

NUT, HEXAGON SMALL

95317-08700-00

$7.05

38

COLLAR(82M)

90387-084R5-00

$6.74

39

SPRING, TORSION(8CJ)

90508-291B2-00

$3.86

40

SPRING, TORSION

90508-291B1-00

Unavailable

41

PIN

90249-06009-00

Unavailable

42

PIN (810)

90249-06012-00

$9.91

43

PIN, COTTER (648)

91490-20015-00

$1.85

44

BOLT, HEXAGON

97017-06025-00

$2.98

45

NUT(JN5)

95317-06700-00

$6.69

46

CABLE, BRAKE

8CR-26351-03-00

$67.25

47

LEVER 2

8CR-83922-00-00

Unavailable

48

COLLAR

90387-06043-00

$6.68

49

BOLT, BUTTON HEAD

92017-06014-00

$2.78

50

. WASHER, PLATE

90201-06050-00

Unavailable

51

COLLAR

90387-081M9-00

$1.89

52

BOLT, BUTTON

92017-08020-00

$5.86

53

WASHER PLATE 141181390000

90201-08085-00

$6.38

54

TAG, CAUTION

8CR-23496-00-00

Unavailable

55

HOLDER, BRAKE HOSE

8DF-25886-00-00

$11.97

56

LEVER 1

8DN-83912-00-00

$51.94
