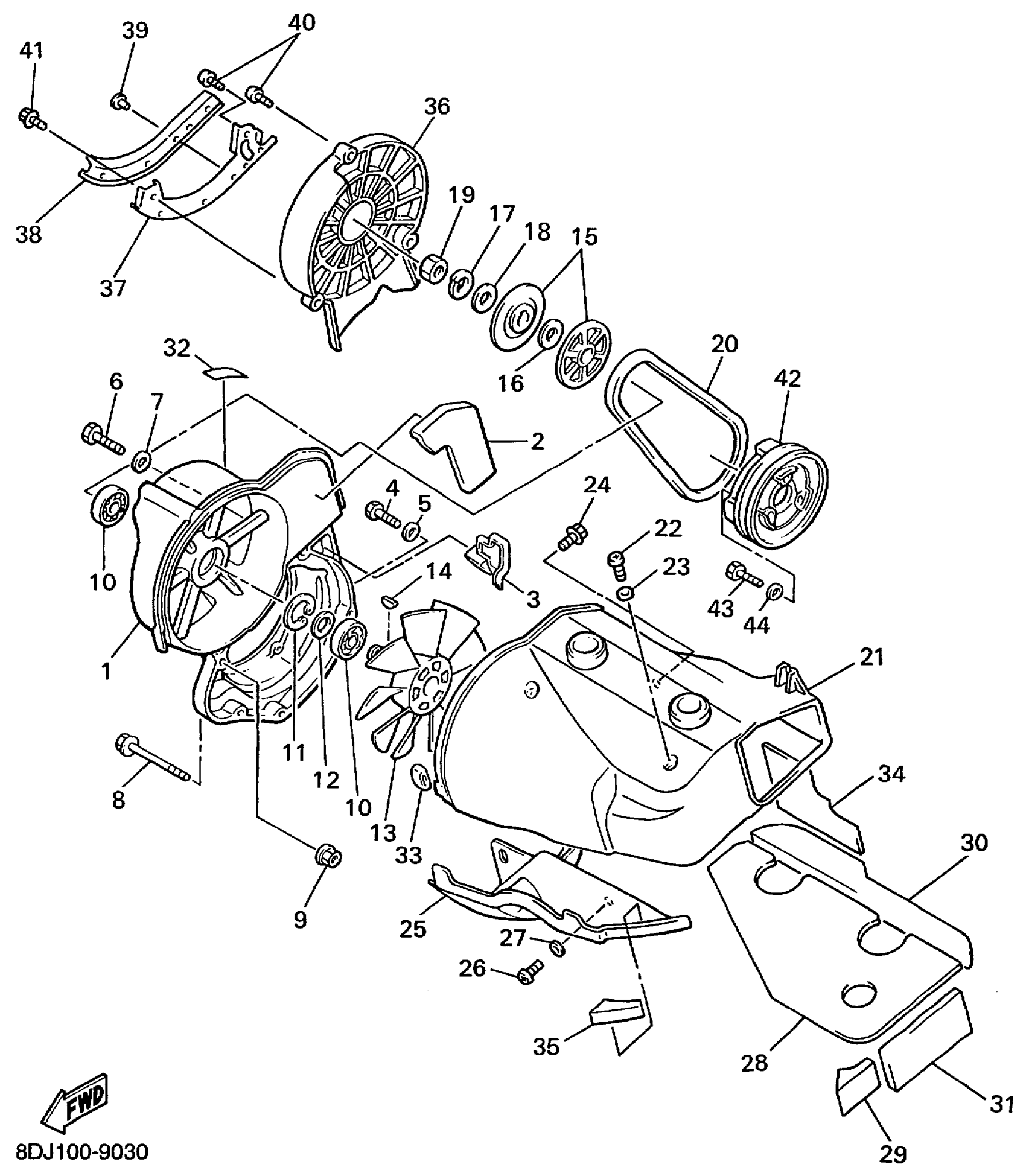

Yamaha VT500XLC (VENTURE 500 XL) 8DX1 1999 AIR SHROUD FAN Diagram

#

Description
Price

1

CASE, FAN

88T-12621-01-00

Unavailable

2

DAMPER, SHROUD 6

8Y0-12679-00-00

$6.52

3

DAMPER, AIR SHROUD 1

80L-12658-01-00

Unavailable

4

BOLT (8K4)

90101-08499-00

$21.95

5

WASHER(6TA)

92907-08600-00

$2.52

6

BOLT, HEXAGON

97017-08055-00

$6.88

7

WASHER(6TA)

92907-08600-00

$2.52

8

BOLT, WASHER BASED

90105-084A1-00

$9.38

9

NUT, FLANGE(JN5)

95707-08500-00

$1.49

10

BEARING

93306-20348-00

$33.70

11

CIR-CLIP (70R)

93420-40064-00

$6.98

12

WASHER, PLATE (8H8)

90201-17713-00

$6.23

13

FAN

8H8-12611-01-00

$77.61

14

KEY, WOOD RUFF (324)

90280-05014-00

$7.82

15

PULLEY 2

8H8-12619-01-00

$31.99

16

WASHER, CLAW (8H8)

90214-17017-00

$5.74

16

WASHER, CLAW (1.0T)

90214-17018-00

Unavailable

17

WASHER(JN5)

92907-16100-00

$12.08

18

WASHER, PLATE (8H8)

90201-17713-00

$6.23

19

NUT

90170-16425-00

$6.60

20

BELT

8DJ-12612-00-00

$16.97

21

AIR SHROUD, CYLINDER 1

8DJ-12651-00-00

$124.32

22

SCREW, PAN

98507-06014-00

$6.18

23

WASHER(6TA)

92907-06600-00

$0.78

24

BOLT, FLANGE

95817-06014-00

$2.15

25

AIR SHROUD, CYLINDER 2

8V0-12652-00-00

$38.15

26

SCREW, PAN

98507-06014-00

$6.18

27

WASHER(6TA)

92907-06600-00

$0.78

28

DAMPER, AIR SHROUD 1

8DJ-12658-00-00

Unavailable

29

DAMPER, AIR SHROUD 5

8DJ-12678-00-00

$3.66

30

DAMPER, AIR SHROUD 3

8DJ-12668-00-00

$3.37

31

DAMPER, AIR SHROUD 4

8DJ-12669-00-00

Unavailable

32

LABEL, CAUTION

8K4-12628-00-00

$10.15

33

DAMPER, AIR SHROUD CYLINDER

8H8-12658-00-00

$7.34

34

DAMPER, SHROUD 7

8DJ-12688-00-00

Unavailable

35

DAMPER, SHROUD 6

8DJ-12679-00-00

Unavailable

36

COVER, FAN CASE

8L0-12616-00-00

$30.12

37

STAY 1

8Y0-12637-02-00

$28.25

38

DAMPER, DUCT

8Y0-12687-02-00

$8.91

39

RIVET(8Y0)

90269-05051-00

$0.42

40

SCREW, BINDING

98907-06025-00

$6.18

41

BOLT, FLANGE

95817-06025-00

$1.46

42

PULLEY, STARTER

8V0-15723-00-00

Unavailable

43

BOLT, HEXAGON

97017-08025-00

$7.46

44

WASHER(6TA)

92907-08600-00

$2.52
