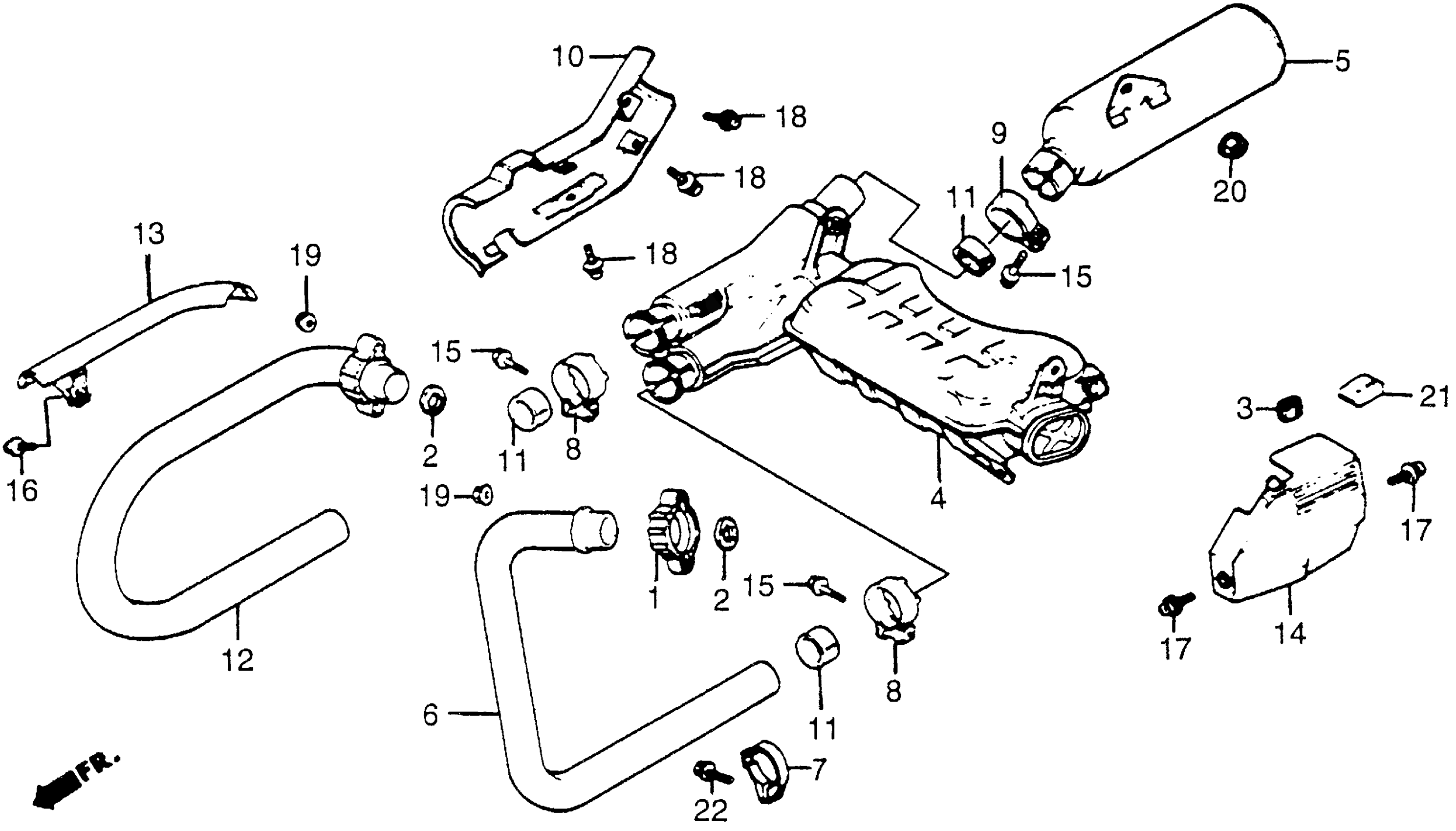

Honda VT500FTA (84) ASCOT, JPN, VIN# JH2PC100-EM100006 TO JH2PC100-EM105150 VT50OFT MUFFLER Diagram

#

Description
Price

1

JOINT, EX. PIPE

18231-ME5-000

Unavailable

2

GASKET, EX. PIPE

18291-MN4-920

$5.31

2

GASKET, EX. PIPE This part replaces 18291-236-000.

18291-MN4-920

$5.31

3

RUBBER, PROTECTOR GASKET

18293-ME9-000

$3.02

4

CHAMBER, PRE

18301-MF8-003

Unavailable

5

MUFFLER (NOT AVAILABLE)

18310-MF8-003

Unavailable

6

PIPE, FR. EX. (NOT AVAILABLE)

18320-MF8-000

Unavailable

7

BAND, PROTECTOR (NOT AVAILABLE)

18322-MF8-003

Unavailable

8

BAND, R. FR. MUFFLER

18373-413-000

$38.92

9

BAND, L. FR. MUFFLER

18374-413-000

$38.92

10

PROTECTOR, R. CHAMBER (NOT AVAILABLE)

18375-MF8-003

Unavailable

11

GASKET, MUFFLER This part replaces 18391-317-000.

18392-MK4-000

$13.66

11

GASKET, MUFFLER This part replaces 18391-317-010.

18392-MK4-000

$13.66

11

GASKET, MUFFLER

18392-MK4-000

$13.66

12

PIPE, RR. EX. (NOT AVAILABLE)

18420-MF8-000

Unavailable

13

PROTECTOR, RR. EX. PIPE (NOT AVAILABLE)

18421-MF8-003

Unavailable

14

PROTECTOR, L. CHAMBER (NOT AVAILABLE)

18425-MF8-003

Unavailable

15

BOLT, FLANGE (8X37)

90118-471-000

$3.19

16

SCREW-WASHER (6X12) (NOT AVAILABLE)

90136-461-000

Unavailable

17

SCREW, PAN (6X12)

93500-06012-0G

$1.49

18

SCREW-WASHER (6X12)

93893-06012-07

$1.49

19

NUT, FLANGE (6MM)

94050-06000

$1.49

20

NUT, FLANGE (8MM)

94050-08000

$1.49

21

RUBBER C, STAND STOPPER

95011-63000

$3.90

22

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

22

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
