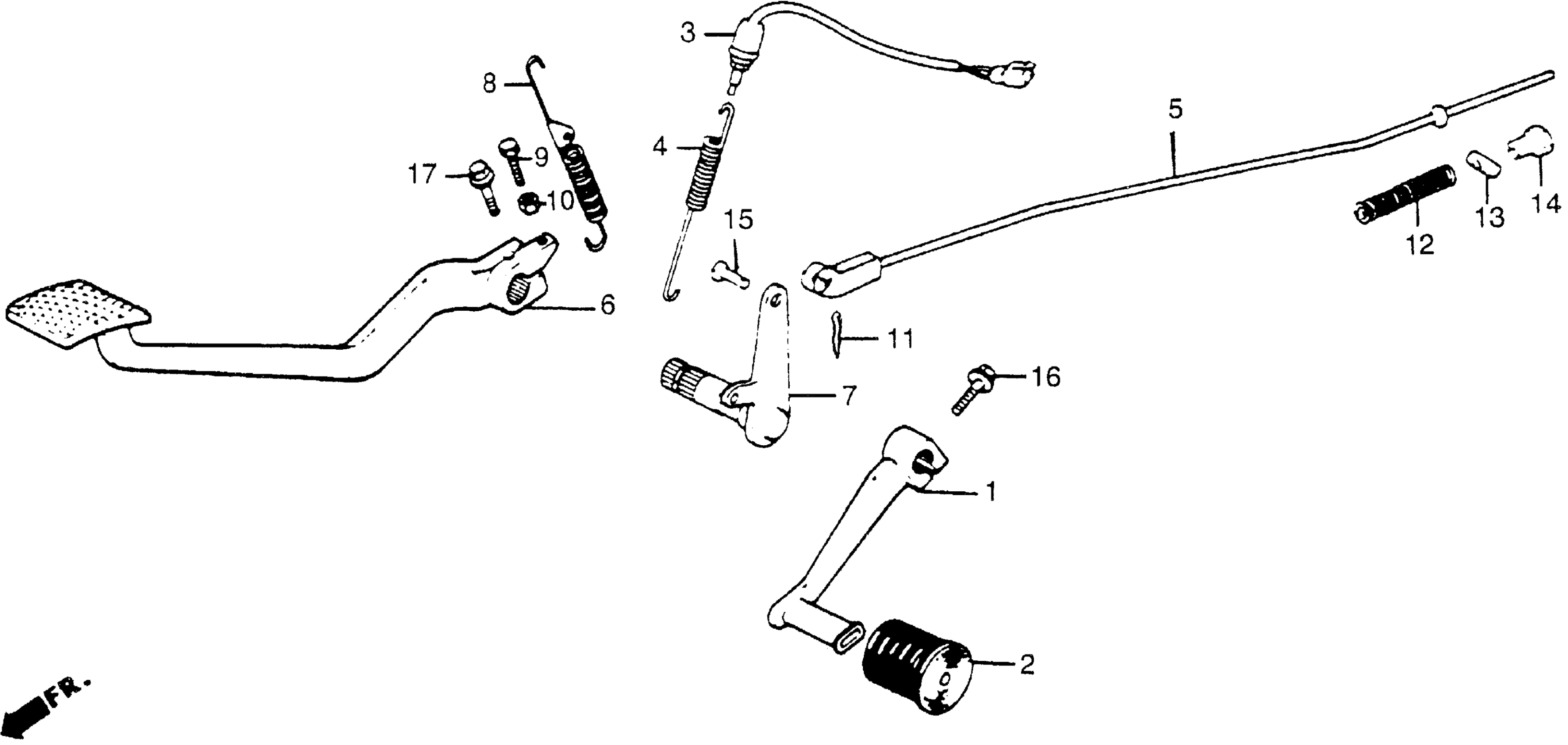

Honda VT500FTA (84) ASCOT, JPN, VIN# JH2PC100-EM100006 TO JH2PC100-EM105150 VT500FT BRAKE PEDAL + GEARSHIFT PEDAL Diagram

PEDAL, GEARSHIFT

24700-MF8-000

Unavailable

PEDAL, GEARSHIFT This part replaces 24700-MF8-770.

24700-MF8-000

Unavailable

RUBBER, GEARSHIFT PEDAL

24781-419-000

$5.62

SWITCH ASSY., RR. STOP This part replaces 35350-MF8-770.

35350-KM4-405

Unavailable

SPRING, STOP SWITCH This part replaces 35357-MF8-770.

35357-MF8-000

$5.51

ROD, RR. BRAKE (NOT AVAILABLE) This part replaces 43451-MF8-000.

43451-KA3-000

Unavailable

PEDAL, BRAKE

46510-MF8-770

Unavailable

SPINDLE, RR. BRAKE (NOT AVAILABLE)

46511-MF8-770

Unavailable

SPRING, BRAKE RETURN

46514-MF8-000

Unavailable

BOLT, HEX. (6X20) This part replaces 92020-06020-0G.

92101-06020-0G

Unavailable

BOLT, HEX. (6X20)

92101-06020-0G

Unavailable

NUT, HEX. (6MM)

94002-06070-0S

$1.49

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

PIN, SPLIT (2.0X22)

94201-20220

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

PIN, SPLIT (2.0X35)

94201-20350

$1.49

PIN, COTTER (2.0X22)

94201-29220

$1.49

SPRING A, BRAKE ROD

95014-73100

$1.49

JOINT B, BRAKE ARM

95015-32001

$1.49

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

BOLT, FLANGE (6X20) This part replaces 95700-06020-07.

95701-06020-07

$1.62

BOLT, FLANGE (6X20)

95701-06020-07

$1.62

BOLT, FLANGE (6X25) This part replaces 95700-06025-07.

95701-06025-07

$1.80

BOLT, FLANGE (6X25)

95701-06025-07

$1.80
