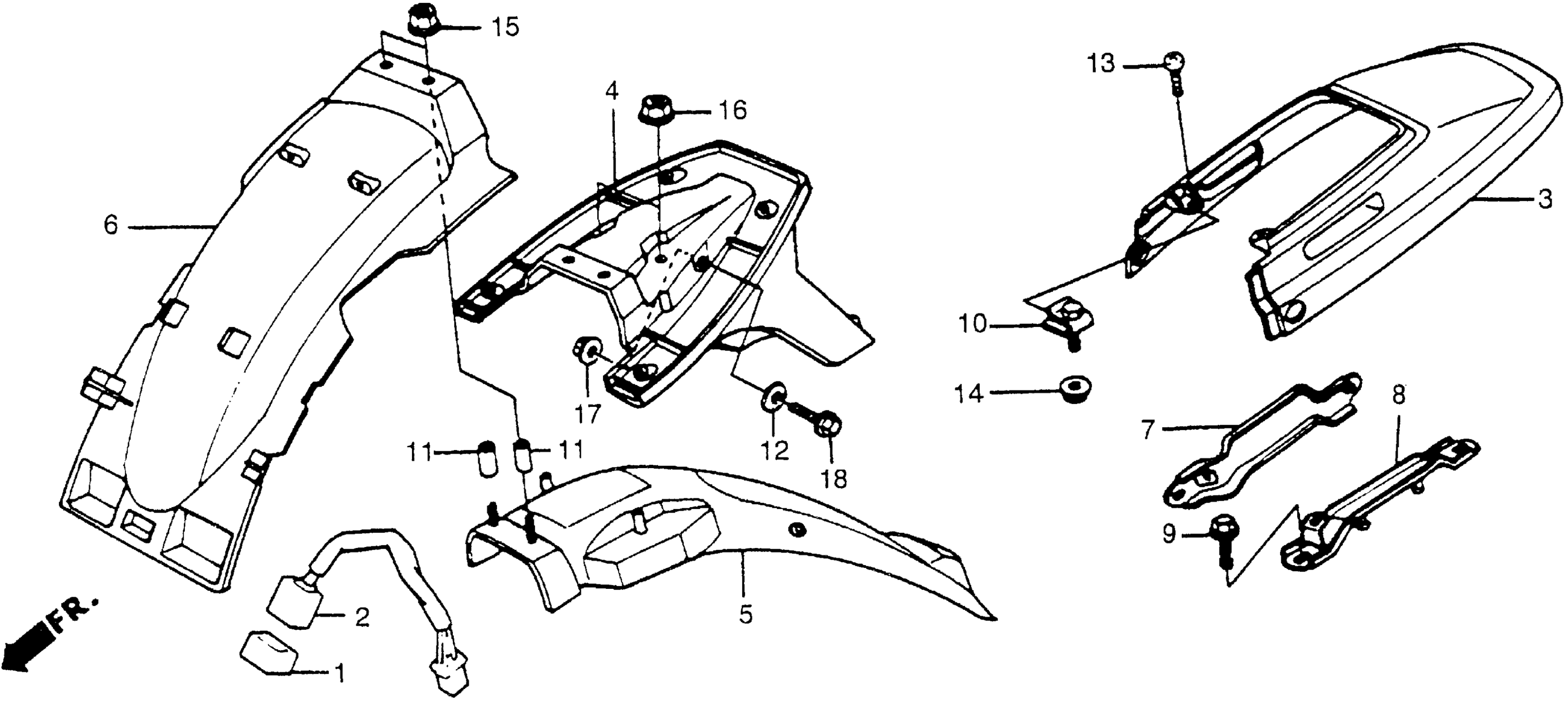

Honda VT500FTA (83) ASCOT, JPN, VIN# JH2PC100-DM000029 TO JH2PC100-DM004708 VT500FT REAR FENDER Diagram

SUSPENSION, STOP & TAIL SENSOR

17235-MF5-000

Unavailable

SENSOR, STOP & TAIL (NOT AVAILABLE)

35550-ME8-670

Unavailable

COWL, RR. *PB123PA* (PEARL SIREN BLUE-A) (NOT AVAILABLE)

77210-MF8-000ZA

Unavailable

COWL, RR. *R107CU* (CANDY BOURGOGNE RED-U) (NOT AVAILABLE)

77210-MF8-000ZB

Unavailable

FENDER A, RR.

80100-MF8-000

Unavailable

PATCH, RR. FENDER (NOT AVAILABLE)

80101-MF8-000

Unavailable

FENDER B, RR.

80105-MF8-000

Unavailable

GRIP ASSY., R. SIDE (NOT AVAILABLE)

84100-MF8-000

Unavailable

GRIP ASSY., L. SIDE (NOT AVAILABLE)

84200-MF8-000

Unavailable

BOLT, CHECK (8MM)

90035-GF4-000

$7.16

BOLT, RR. COWL

90131-MF8-000

Unavailable

COLLAR, NUMBER BRACKET SETTING

90301-GB0-901

Unavailable

WASHER (8X20) (NOT AVAILABLE)

90512-392-000

Unavailable

SCREW-WASHER (5X12)

93893-05012-00

$1.49

NUT, CAP (5MM)

94021-05070-0S

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

NUT, FLANGE (8MM)

94050-08000

$1.49

NUT, FLANGE (8MM)

94050-08080

$1.49

BOLT, FLANGE (8X28) This part replaces 95700-08028-08.

95701-08028-08

$2.06

BOLT, FLANGE (8X28)

95701-08028-08

$2.06
