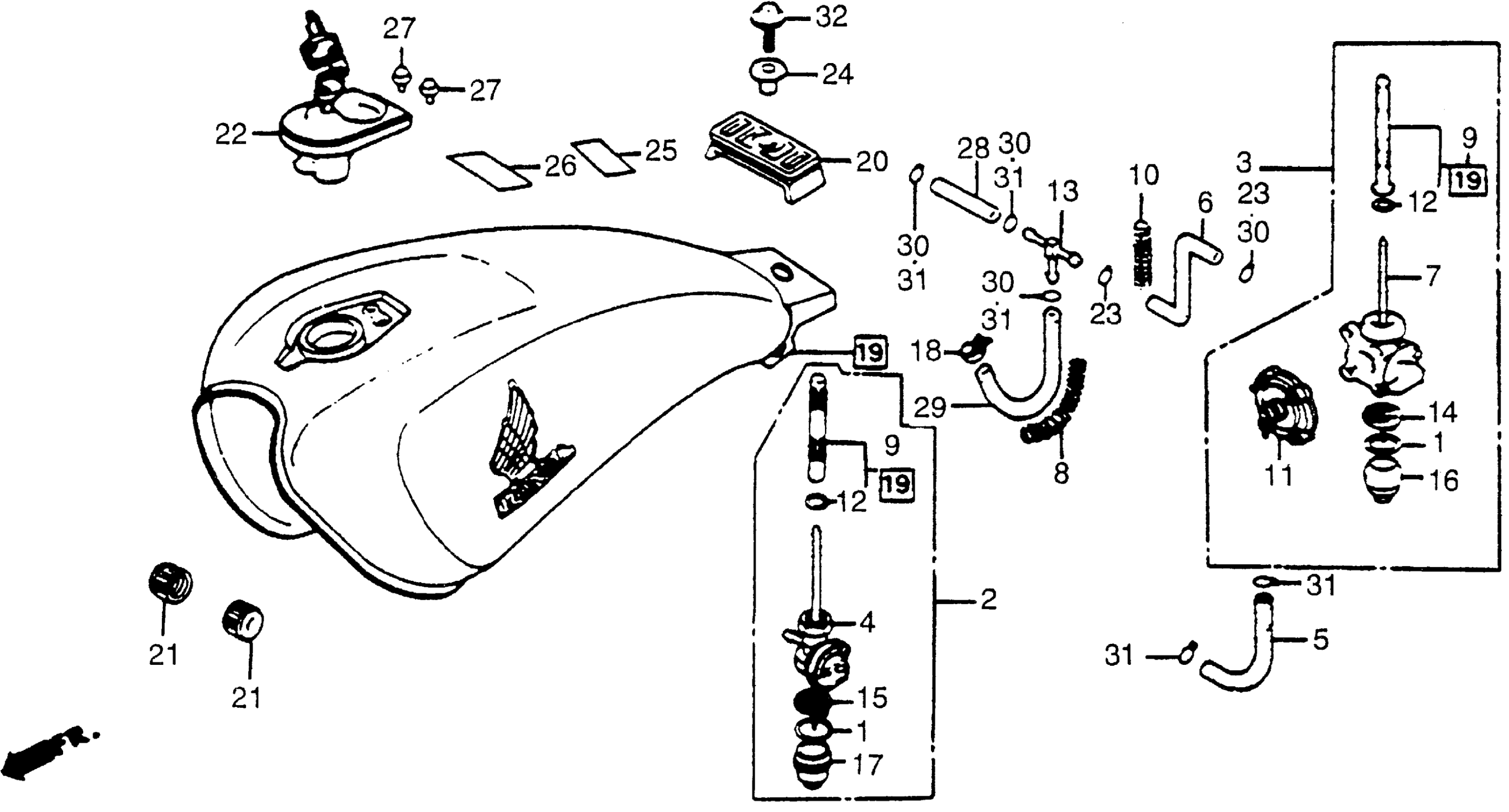

Honda VT500FTA (83) ASCOT, JPN, VIN# JH2PC100-DM000029 TO JH2PC100-DM004708 VT500FT FUEL TANK Y- Diagram

#

Description
Price

1

O-RING (CONTAINS 1 LARGE & 1 SMALL. USE AS NEEDED)

16080-898-631

$24.34

1

GASKET, FUEL STRAINER CUP

16173-001-004

$5.17

1

O-RING (2.4X18.6) This part replaces 16955-283-000.

16075-GHB-B00

$4.67

1

O-RING (2.4X18.6) This part replaces 16958-011-000.

16075-GHB-B00

$4.67

1

O-RING (2.4X18.6) This part replaces 16958-028-000.

16075-GHB-B00

$4.67

2

PETCOCK ASSY.

16950-KCJ-691

Unavailable

2

PETCOCK ASSY. This part replaces 16950-MF8-005.

16950-KCJ-691

Unavailable

4

BODY, VALVE (NOT AVAILABLE)

16951-KB7-005

Unavailable

6

TUBE, FUEL (5.3) (NOT AVAILABLE)

16951-MF8-000

Unavailable

8

WIRE B, GUARD

16952-MF5-000

$13.34

9

SCREEN SET, FUEL STRAINER

16952-461-771

$47.80

12

O-RING This part replaces 16195-657-300.

16075-GHB-720

$2.93

12

O-RING This part replaces 16958-MA1-731.

16075-GHB-720

$2.93

13

JOINT, FUEL TUBE

16958-MB0-000

$12.10

15

FILTER, CUP

16959-471-831

$9.35

17

CUP, FUEL STRAINER

16967-MA2-771

$25.08

19

TANK SET, FUEL *PB123PA* (PEARL SIREN BLUE-A) (NOT AVAILABLE)

175A1-MF8-000ZA

Unavailable

19

TANK SET, FUEL *R107CU* (CANDY BOURGOGNE RED-U) (NOT AVAILABLE)

175A1-MF8-000ZB

Unavailable

20

MOUNT, FUEL TANK (NOT AVAILABLE) This part replaces 17511-MF5-000.

17511-MF5-750

Unavailable

21

RUBBER, FR. FUEL TANK

17611-KE8-000

$4.22

21

RUBBER, FR. FUEL TANK This part replaces 17611-286-000.

17611-KE8-000

$4.22

22

CAP, FUEL FILLER This part replaces 17620-MB1-013.

17620-MB1-043

$129.39

22

CAP, FUEL FILLER This part replaces 17620-MB1-023.

17620-MB1-043

$129.39

22

CAP, FUEL FILLER This part replaces 17620-MB1-033.

17620-MB1-043

$129.39

23

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

24

COLLAR, RR. FENDER (NOT AVAILABLE)

61105-428-000

Unavailable

25

LABEL, FR. FORK CAUTION *A03* (SILVER) (NOT AVAILABLE)

87517-MB0-770ZC

Unavailable

26

MARK, DRIVE CAUTION *A73* (GOLD) (NOT AVAILABLE)

87560-181-760ZC

Unavailable

27

SCREW-WASHER (4X8)

93893-04008-08

$1.49

28

BULK HOSE, FUEL (7.5X8000) (7.5X40)

95001-75008-60M

$103.82

29

BULK HOSE, FUEL (7.5X8000) (7.3X200)

95001-75008-60M

$103.82

31

CLIP, TUBE (B6.5)

95002-02650

$1.49

32

BOLT, FLANGE (8X28) This part replaces 95700-08028-08.

95701-08028-08

$2.06

32

BOLT, FLANGE (8X28)

95701-08028-08

$2.06
