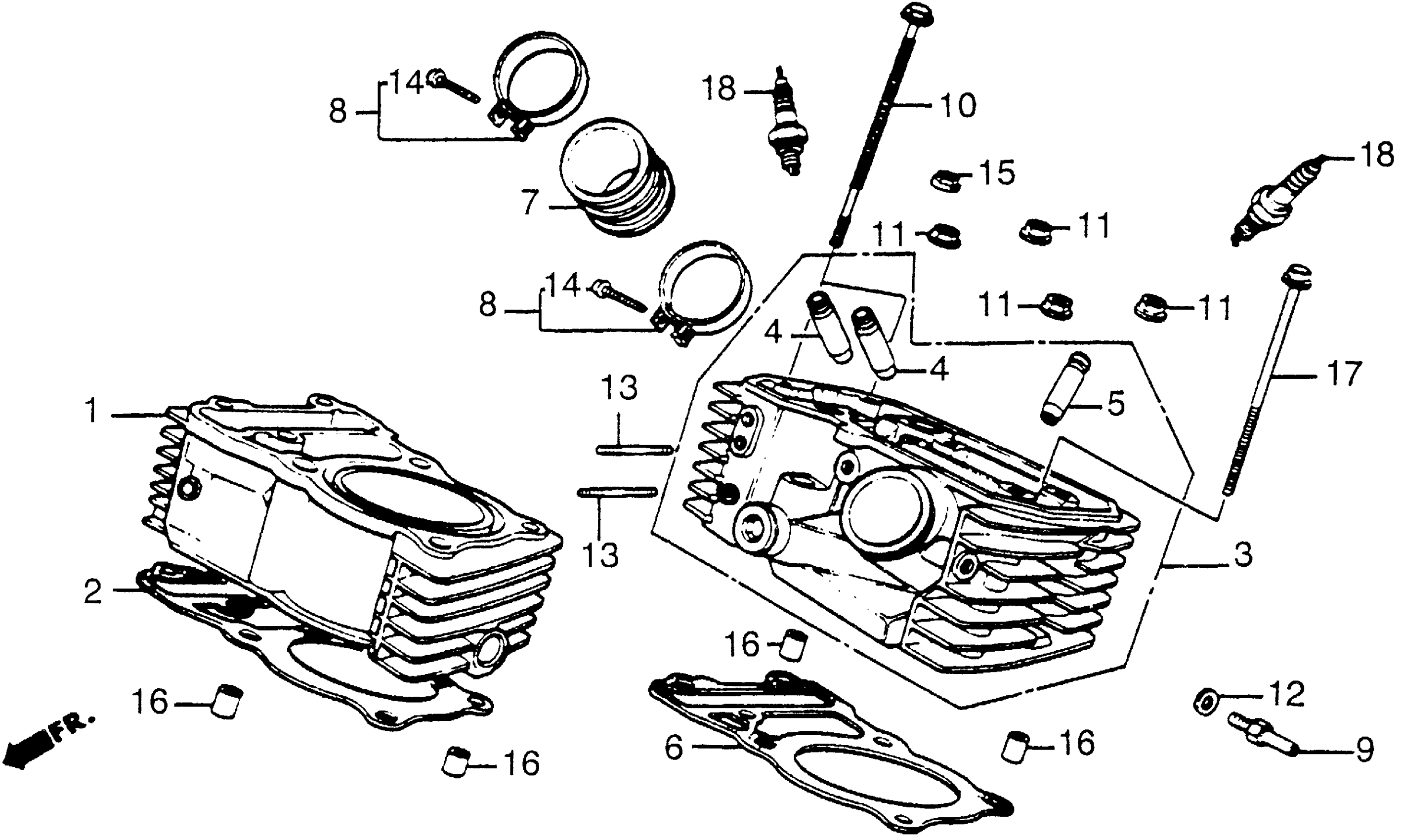

Honda VT500CAC (86) SHADOW 500, JPN, VIN# JH2PC081-GM300004 REAR CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER, RR.

12110-MF5-000

Unavailable

2

GASKET, CYLINDER This part replaces 12191-MF5-000.

12191-MM9-850

Unavailable

2

GASKET, CYLINDER This part replaces 12191-MM9-306.

12191-MM9-850

Unavailable

2

GASKET, CYLINDER

12191-MM9-850

Unavailable

3

CYLINDER HEAD, RR.

12220-MF5-860

Unavailable

4

GUIDE, IN. VALVE (OS)

12231-MF5-305

$22.36

5

GUIDE, EX. VALVE (OVER SIZE) This part replaces 12241-MF5-305.

12241-MF5-315

$20.56

5

GUIDE, EX. VALVE (OS)

12241-MF5-315

$20.56

6

GASKET, CYLINDER HEAD This part replaces 12251-MF5-000.

12251-MF5-405

Unavailable

6

GASKET, CYLINDER HEAD

12251-MF5-405

Unavailable

7

INSULATOR, CARBURETOR

16211-MF5-000

Unavailable

8

BAND, INSULATOR

16219-ME9-000

$10.37

9

JOINT, PB

16221-MA6-000

$13.38

10

BOLT, CYLINDER (8X180)

90081-MF5-003

Unavailable

11

NUT, FLANGE (10MM) This part replaces 90204-634-000.

94050-10000

$1.59

11

NUT, FLANGE (10MM) This part replaces 94030-10000-07.

94050-10000

$1.59

11

NUT, FLANGE (10MM)

94050-10000

$1.59

12

WASHER, SEALING (5MM)

90452-323-000

$1.59

13

BOLT, STUD (6X35)

92900-06035-0E

$1.62

14

SCREW, PAN (5X25)

93500-05025-0G

$1.49

15

NUT, FLANGE (8MM)

94050-08080

$1.49

16

PIN, DOWEL (14X20)

94301-14200

$2.28

17

BOLT, FLANGE (6X70) This part replaces 96000-06070-00.

96001-06070-00

$1.95

17

BOLT, FLANGE (6X70)

96001-06070-00

$1.95

18

SPARK PLUG (DPR7EA-9) (NGK) | (Optional).

98069-57916

$2.62

18

SPARK PLUG (X22EPR-U9) (DENSO) | (Optional).

98069-57926

$2.54

18

SPARK PLUG (DPR8EA-9) (NGK)

98069-58916

$2.62

18

SPARK PLUG (X24EPR-U9) (DENSO)

98069-58926

$2.54

18

SPARK PLUG (DPR9EA-9) (NGK) | (Optional).

98069-59916

$2.62

18

SPARK PLUG (X27EPR-U9) (DENSO) | (Optional).

98069-59926

$2.54
