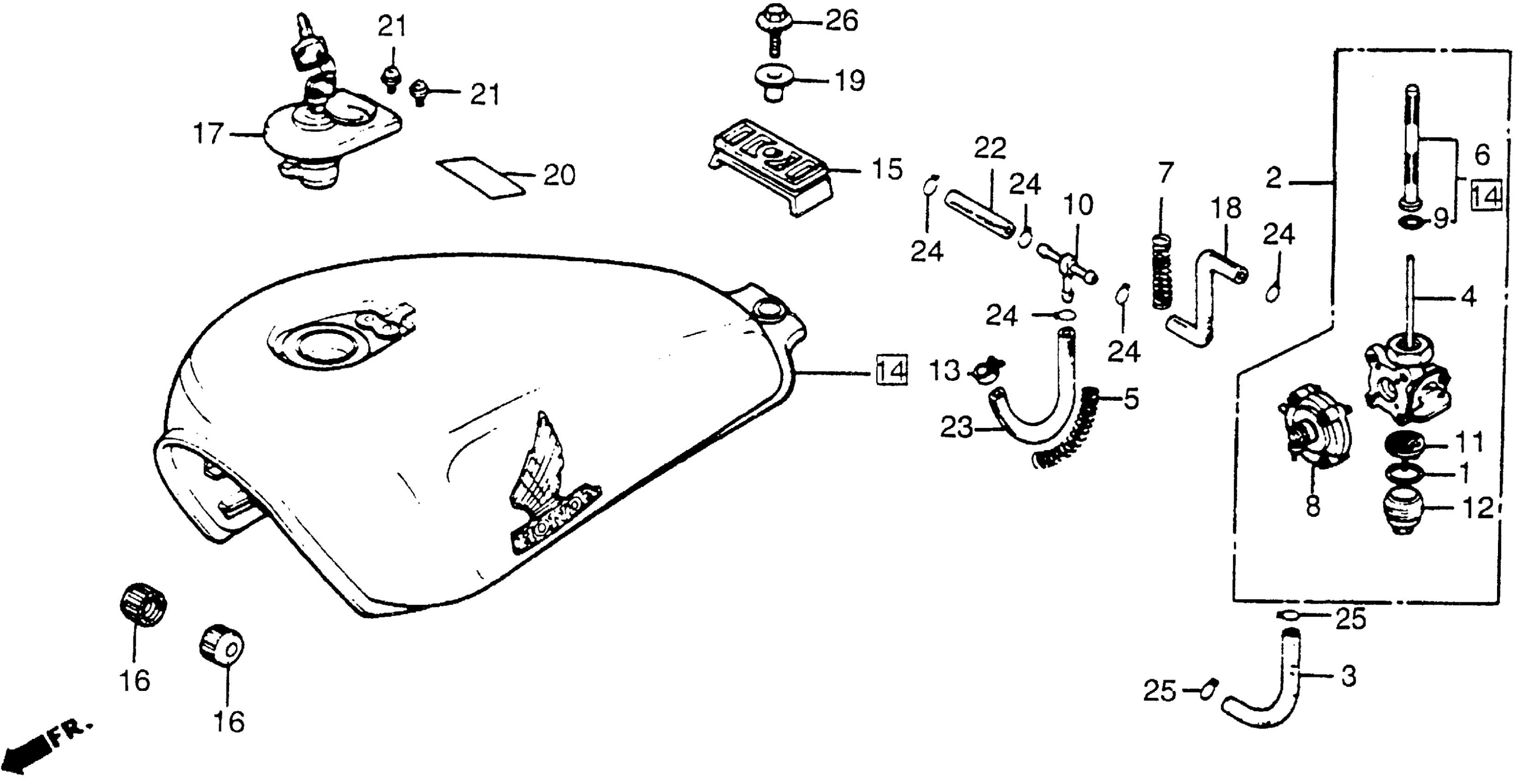

Honda VT500CAC (84) SHADOW 500, JPN, VIN# JH2PC081-EM100013 TO JH2PC081-EM100782 VT500C FUEL TANK Diagram

#

Description
Price

1

O-RING (CONTAINS 1 LARGE & 1 SMALL. USE AS NEEDED)

16080-898-631

$24.34

1

GASKET, FUEL STRAINER CUP

16173-001-004

$5.17

1

O-RING (2.4X18.6) This part replaces 16955-283-000.

16075-GHB-B00

$4.67

1

O-RING (2.4X18.6) This part replaces 16958-011-000.

16075-GHB-B00

$4.67

1

O-RING (2.4X18.6) This part replaces 16958-028-000.

16075-GHB-B00

$4.67

2

PETCOCK ASSY., AUTO (NOT AVAILABLE) This part replaces 16950-MF5-000.

16950-MF5-010

Unavailable

2

PETCOCK ASSY., AUTO (NOT AVAILABLE)

16950-MF5-010

Unavailable

3

TUBE (3.5X75) (NOT AVAILABLE)

16951-MF5-000

Unavailable

4

BODY, PETCOCK (NOT AVAILABLE) This part replaces 16951-MF5-005.

16951-MF5-015

Unavailable

4

BODY, PETCOCK (NOT AVAILABLE)

16951-MF5-015

Unavailable

5

WIRE B, GUARD

16952-MF5-000

$13.34

6

SCREEN SET, FUEL STRAINER

16952-461-771

$47.80

7

WIRE A, GUARD

16953-MF8-770

Unavailable

8

COVER SET, PETCOCK This part replaces 16953-ME5-005.

16953-ME5-025

$44.58

8

COVER SET, PETCOCK This part replaces 16953-449-751.

16953-ME5-025

$44.58

9

O-RING This part replaces 16195-657-300.

16075-GHB-720

$2.93

9

O-RING This part replaces 16958-MA1-731.

16075-GHB-720

$2.93

10

JOINT, FUEL TUBE

16958-MB0-000

$12.10

11

FILTER, CUP

16959-461-751

$17.88

12

CUP, FUEL STRAINER

16967-GA6-671

$23.28

14

TANK SET, FUEL *R130CU* (CANDY SCORPIO RED)

175A1-MF5-790ZA

Unavailable

14

TANK SET, FUEL *NH1Z* (BLACK-Z)

175A1-MF5-790ZB

Unavailable

15

MOUNT, FUEL TANK (NOT AVAILABLE) This part replaces 17511-MF5-000.

17511-MF5-750

Unavailable

16

RUBBER, FR. FUEL TANK

17611-KE8-000

$4.22

16

RUBBER, FR. FUEL TANK This part replaces 17611-286-000.

17611-KE8-000

$4.22

17

CAP, FUEL FILLER

17620-ME5-761

Unavailable

18

TUBE, FUEL (7.3X85)

17681-MF5-000

Unavailable

19

COLLAR, RR. FENDER (NOT AVAILABLE)

61105-428-000

Unavailable

20

MARK, DRIVE CAUTION (TYPEG)

87560-ME9-670ZA

$5.22

21

SCREW-WASHER (4X8)

93892-04008-08

$1.49

22

BULK HOSE, FUEL (7.5X8000) (7.5X40)

95001-75008-60M

$103.82

23

BULK HOSE, FUEL (7.5X8000) (7.3X200)

95001-75008-60M

$103.82

24

CLIP, TUBE (B12)

95002-02120

$2.00

25

CLIP, TUBE (B6.5)

95002-02650

$1.49

26

BOLT, FLANGE (8X28) This part replaces 95700-08028-08.

95701-08028-08

$2.06

26

BOLT, FLANGE (8X28)

95701-08028-08

$2.06
