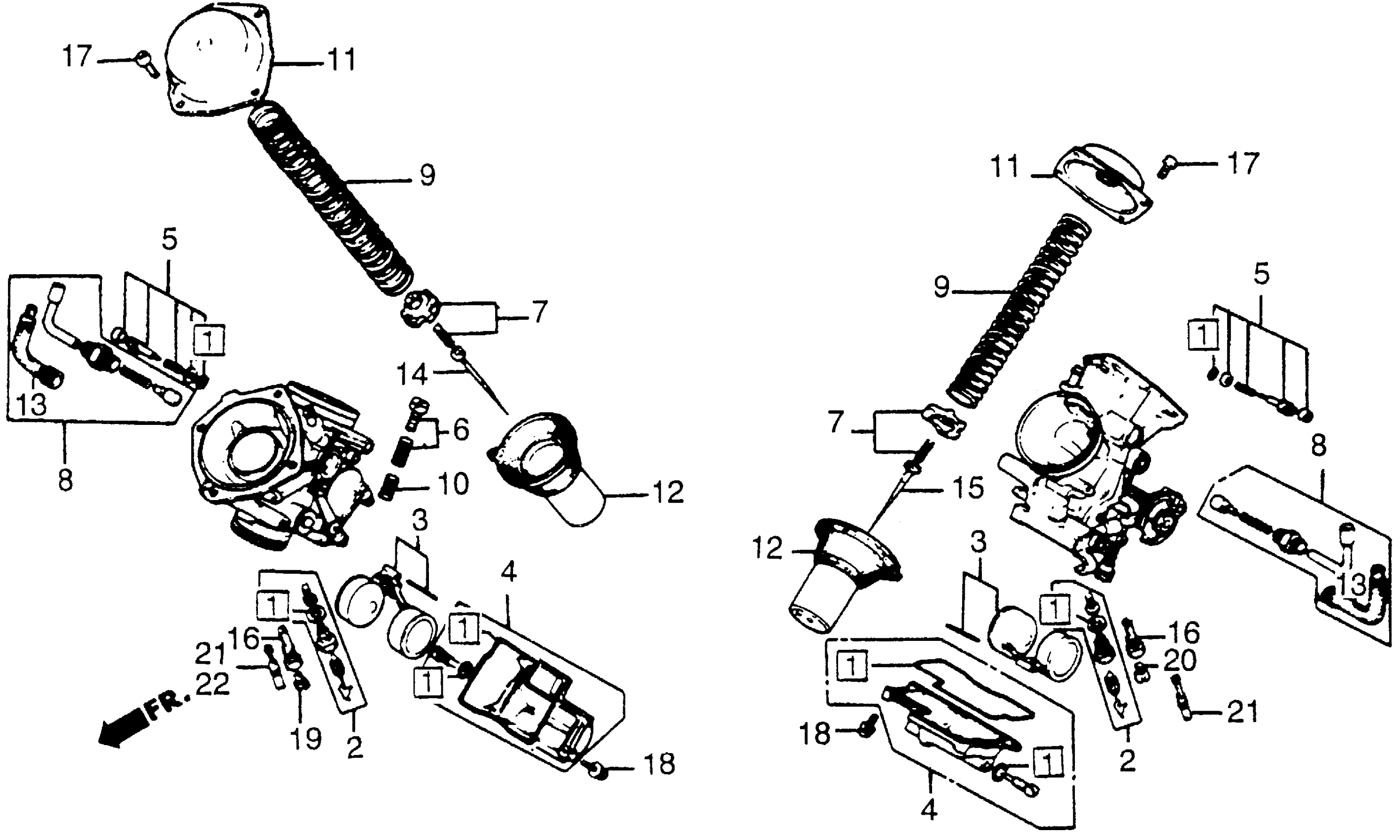

Honda VT500CAC (84) SHADOW 500, JPN, VIN# JH2PC081-EM100013 TO JH2PC081-EM100782 CARBURETOR COMPONENT Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-MF5-611.

16010-MM9-305

Unavailable

1

GASKET SET This part replaces 16010-MF5-671.

16010-MM9-305

Unavailable

1

GASKET SET

16010-MM9-305

Unavailable

2

VALVE SET, FLOAT

16011-MF5-671

Unavailable

3

FLOAT SET

16013-MB0-671

$55.07

4

CHAMBER SET, FLOAT This part replaces 16015-ME9-671.

16023-MR5-671

Unavailable

4

CHAMBER SET, FLOAT This part replaces 16015-MG8-721.

16023-MR5-671

Unavailable

4

CHAMBER SET, FLOAT This part replaces 16015-MG8-771.

16023-MR5-671

Unavailable

4

CHAMBER SET, FLOAT This part replaces 16015-MR5-601.

16023-MR5-671

Unavailable

5

SCREW SET This part replaces 16016-MF5-671.

16016-MAH-670

$26.48

6

SCREW SET C

16029-MB0-671

Unavailable

7

PLATE SET, VALVE

16037-ME5-671

$29.52

8

VALVE SET, STARTER This part replaces 16046-ME9-671.

16046-ME9-672

Unavailable

8

VALVE SET, STARTER

16046-ME9-672

Unavailable

9

SPRING, VACUUM PISTON

16050-MF5-671

Unavailable

10

SPRING

16052-ME9-672

$5.67

11

TOP This part replaces 16107-KE8-004.

16108-MJ1-671

$40.50

11

TOP This part replaces 16107-MB0-671.

16108-MJ1-671

$40.50

11

TOP This part replaces 16108-ME5-671.

16108-MJ1-671

$40.50

11

TOP

16108-MJ1-671

$40.50

12

PISTON, VACUUM

16111-MF5-671

Unavailable

13

CAP, CABLE SEALING

16118-ME9-671

$14.18

14

NEEDLE, JET (NOT AVAILABLE)

16131-MF5-671

Unavailable

15

NEEDLE, JET (NOT AVAILABLE)

16151-MF5-791

Unavailable

16

HOLDER, NEEDLE JET

16165-MF5-671

Unavailable

17

SCREW, PAN (4X10)

93500-04010-0H

$1.49

17

SCREW, PAN (4X10) This part replaces 93500-04010-1H.

93500-04010-0H

$1.49

18

SCREW-WASHER (4X16)

93892-04016-00

$1.49

18

SCREW-WASHER (4X16) This part replaces 93892-04016-10.

93892-04016-00

$1.49

19

JET (#112)

99101-GHB-1120

$7.98

19

JET (#112) This part replaces 99101-393-1120.

99101-GHB-1120

$7.98

20

JET, MAIN (#122) This part replaces 99101-GHB-1220.

99101-HN5-1220

$9.13

20

JET, MAIN (#122) This part replaces 99101-393-1220.

99101-HN5-1220

$9.13

20

JET, MAIN (#122) This part replaces 99102-393-1220.

99101-HN5-1220

$9.13

21

JET, SLOW (#38) This part replaces 99103-427-0380.

99103-MY0-0380

$20.38
