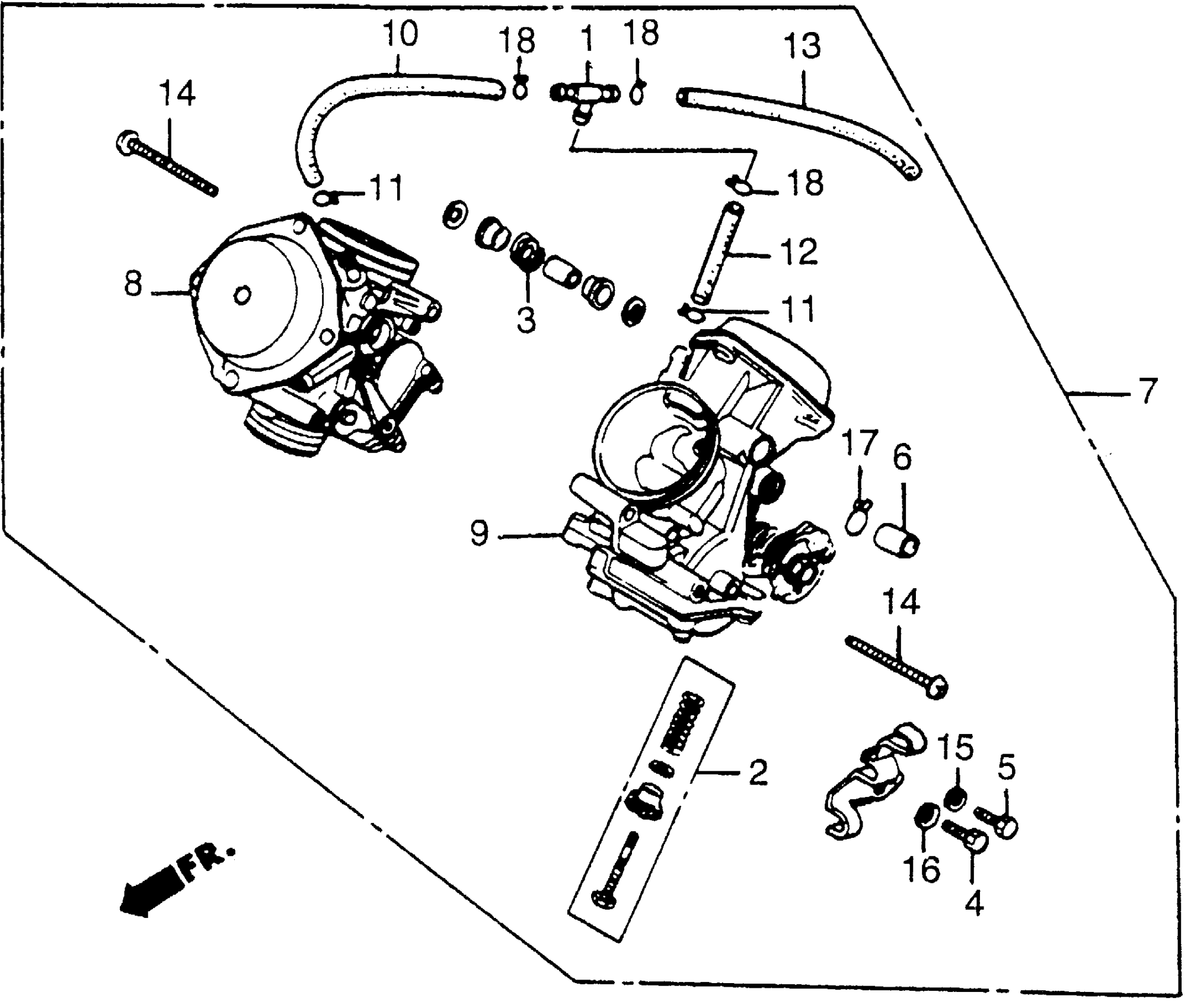

Honda VT500CAC (84) SHADOW 500, JPN, VIN# JH2PC081-EM100013 TO JH2PC081-EM100782 CARBURETOR ASSY. Diagram

T-JOINT This part replaces 16026-MF5-671.

17195-MN5-000

$9.54

T-JOINT

17195-MN5-000

$9.54

SCREW SET This part replaces 16028-KM9-711.

16028-MAH-000

$55.95

SCREW SET

16028-MAH-000

$55.95

SCREW SET This part replaces 16028-ME9-671.

16028-MAH-000

$55.95

SPRING

16053-ME9-672

Unavailable

SCREW, PAN

16080-ME9-671

Unavailable

BOLT, HEX. This part replaces 16081-ME9-671.

16081-MR1-004

Unavailable

BOLT, HEX.

16081-MR1-004

Unavailable

CARBURETOR ASSY.

16100-MF5-791

Unavailable

CARBURETOR ASSY., R.

16101-MF5-791

Unavailable

CARBURETOR ASSY., L.

16102-MF5-791

Unavailable

TUBE

16143-MF5-671

$7.18

TUBE This part replaces 16198-MF5-671.

16143-MN8-014

Unavailable

TUBE This part replaces 16199-MF5-671.

16144-MM8-004

Unavailable

TUBE

16144-MM8-004

Unavailable

TUBE This part replaces 16144-MM8-405.

16144-MM8-004

Unavailable

SCREW, PAN (5X40)

93500-05040-0A

$1.49

WASHER, SPRING (4MM)

94111-04800

$1.49

WASHER, SPRING (5MM)

94111-05000

$1.49

CLIP, TUBE (B7)

95002-02070

$1.80
