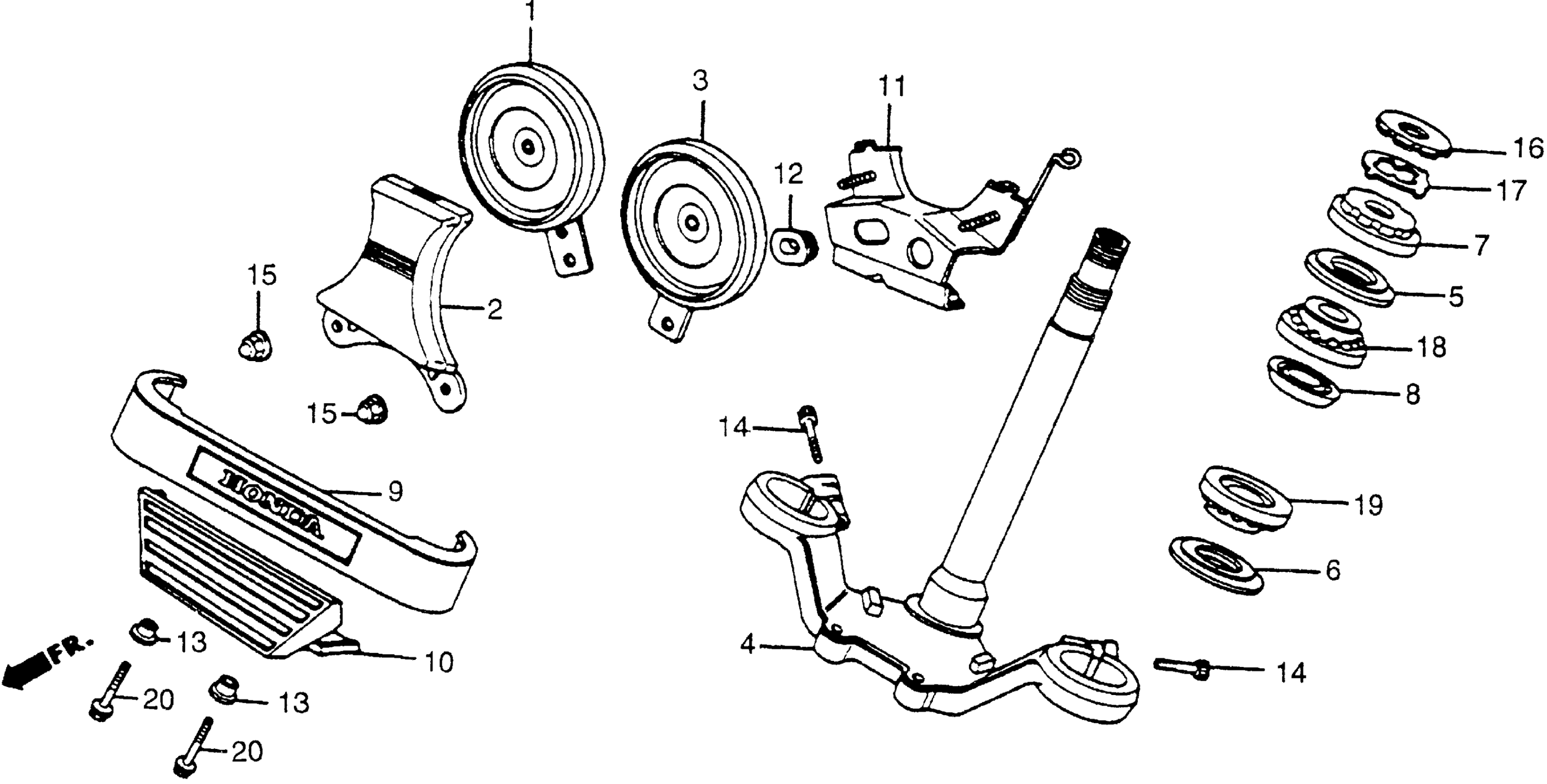

Honda VT500CA (86) SHADOW 500, JPN, VIN# JH2PC080-GM300001 VT500C STEERING STEM 85-86 Diagram

#

Description
Price

1

HORN ASSY. (HIGH) This part replaces 38110-MF5-751.

38110-MF5-752

Unavailable

1

HORN ASSY. (HIGH)

38110-MF5-752

Unavailable

2

EMBLEM, HORN (NOT AVAILABLE)

38111-MF5-750

Unavailable

3

HORN ASSY. (LOW) This part replaces 38120-MF5-751.

38120-MF5-752

Unavailable

4

STEM, STEERING

53200-MF5-751

Unavailable

5

DUST SEAL, STEERING HEAD (ARAI)

53213-MB4-771

$12.13

6

DUST SEAL, STEERING HEAD

53214-371-010

$13.33

7

THREAD, STEERING HEAD TOP

53220-MB2-000

$34.39

8

HOLDER, GREASE

53223-371-010

Unavailable

9

COVER (LOWER)

61401-MF5-000

Unavailable

10

COVER, SUB (LOWER) (NOT AVAILABLE)

61402-MF5-750

Unavailable

11

STAY, HORN & JOINT BOX

61405-MF5-750

Unavailable

12

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

13

COLLAR, COWL SETTING (LOWER)

90122-463-770

$4.40

14

BOLT, SOCKET (10X30)

90152-MB0-000

Unavailable

15

NUT, OPEN STAY (6MM)

90301-693-000

$6.36

15

NUT, FLANGE (6MM)

94050-06000

$1.49

16

THREAD B, STEERING HEAD TOP

90302-425-830

$21.73

17

WASHER, LOCK

90506-425-830

$7.05

18

BEARING, HEAD PIPE (UPPER) (KOYO)

91015-KT8-005

$36.57

18

BEARING, HEAD PIPE (UPPER) This part replaces 91015-MB4-771.

91015-KT8-005

$36.57

19

BEARING, HEAD PIPE (LOWER) (KOYO)

91016-KT8-005

$36.57

19

BEARING, HEAD PIPE (LOWER) This part replaces 91016-MB4-771.

91016-KT8-005

$36.57

20

BOLT, FLANGE (6X35) This part replaces 95700-06035-07.

95701-06035-07

$1.80

20

BOLT, FLANGE (6X35)

95701-06035-07

$1.80
