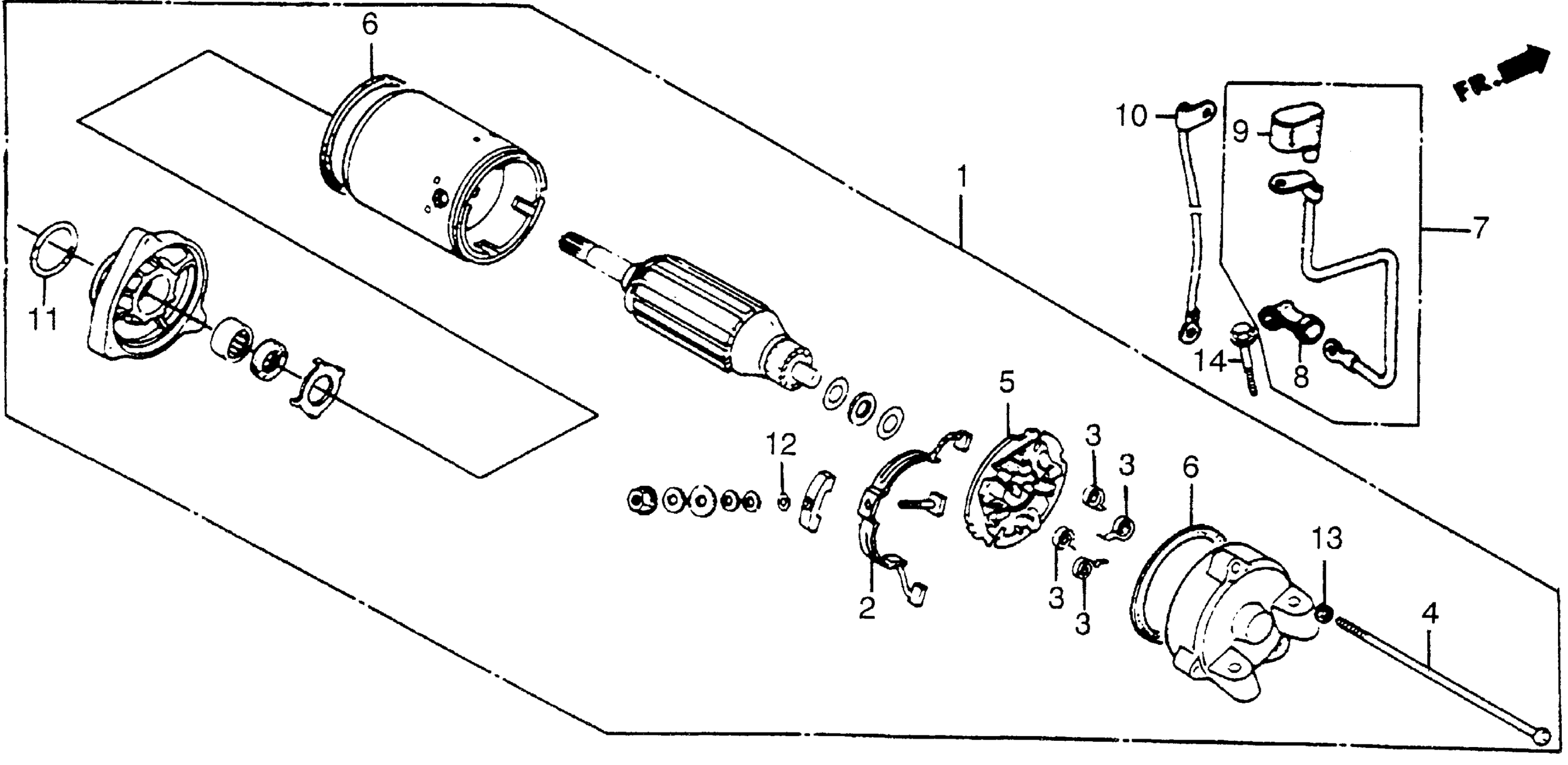

Honda VT500CA (86) SHADOW 500, JPN, VIN# JH2PC080-GM300001 STARTER MOTOR Diagram

#

Description
Price

1

MOTOR ASSY., STARTER This part replaces 31200-MF5-008.

31200-MF5-038

Unavailable

1

MOTOR ASSY., STARTER This part replaces 31200-MF5-018.

31200-MF5-038

Unavailable

1

MOTOR ASSY., STARTER This part replaces 31200-MF5-028.

31200-MF5-038

Unavailable

1

MOTOR ASSY., STARTER

31200-MF5-038

Unavailable

2

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8)

31201-KG7-000

$31.18

2

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8) This part replaces 31201-MA6-000.

31201-KG7-000

$31.18

3

SPRING, CARBON BRUSH

31204-MA6-000

$5.72

4

SCREW, PAN (5X115)

31205-MB0-000

Unavailable

5

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8) This part replaces 31206-KG7-000.

31206-MM5-008

$19.33

5

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8) This part replaces 31206-MA6-000.

31206-MM5-008

$19.33

5

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8)

31206-MM5-008

$19.33

6

RING, SEAL

31207-179-711

$4.22

7

CABLE, STARTER MOTOR

32410-MF5-750

Unavailable

8

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

8

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

9

COVER A, MAGNETIC SWITCH (NOT AVAILABLE)

32412-443-900

Unavailable

10

CABLE, BATTERY GROUND (NOT AVAILABLE)

32601-MF5-750

Unavailable

11

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

11

O-RING (24.4X3.1)

91312-MG7-003

$6.34

12

O-RING

91320-MB0-000

$2.43

13

WASHER, SPRING (5MM)

94111-05000

$1.49

14

BOLT, FLANGE (6X32) This part replaces 96000-06032-00.

96001-06032-00

$1.49

14

BOLT, FLANGE (6X32)

96001-06032-00

$1.49
