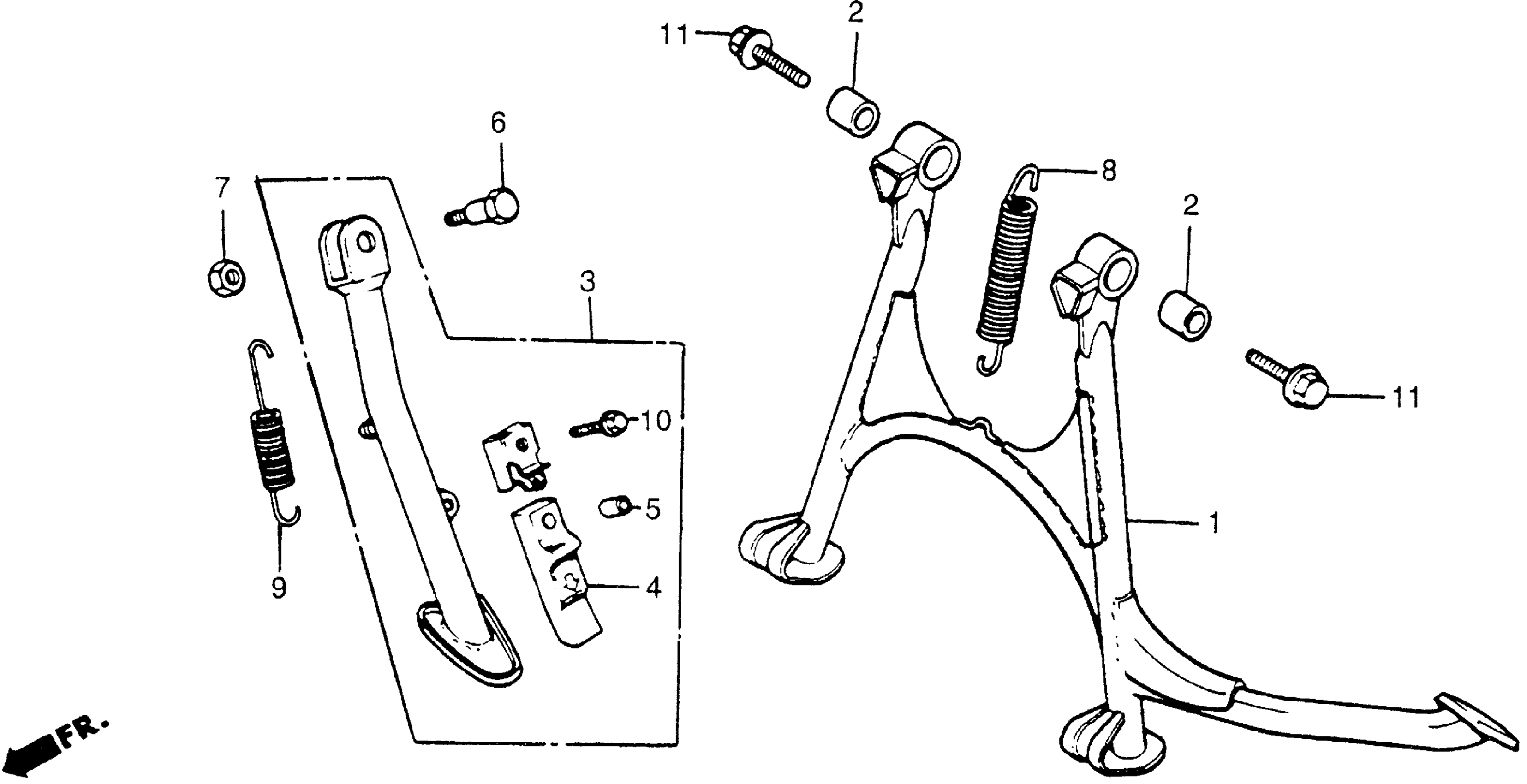

Honda VT500CA (86) SHADOW 500, JPN, VIN# JH2PC080-GM300001 STAND Diagram

STAND, MAIN

50500-MF5-840

Unavailable

COLLAR, MAIN STAND

50526-ME9-000

Unavailable

STAND ASSY., SIDE

50540-MF5-000

Unavailable

RUBBER, STAND

50548-356-700

$10.50

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

BOLT, SIDE STAND PIVOT This part replaces 90108-MF5-000.

90108-223-000

$5.13

BOLT, SIDE STAND PIVOT

90108-223-000

$5.13

NUT, SIDE STAND

90203-MJ4-000

Unavailable

SPRING G, MAIN STAND

95014-71702

$4.08

SPRING D, SIDE STAND

95014-72402

$2.92

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

BOLT, FLANGE (10X35) This part replaces 95800-10035-08.

95801-10035-08

$2.58

BOLT, FLANGE (10X40) This part replaces 95800-10040-08.

95801-10040-08

$2.30

BOLT, FLANGE (10X40)

95801-10040-08

$2.30

BOLT, FLANGE (10X35)

96400-10040-08

Unavailable
