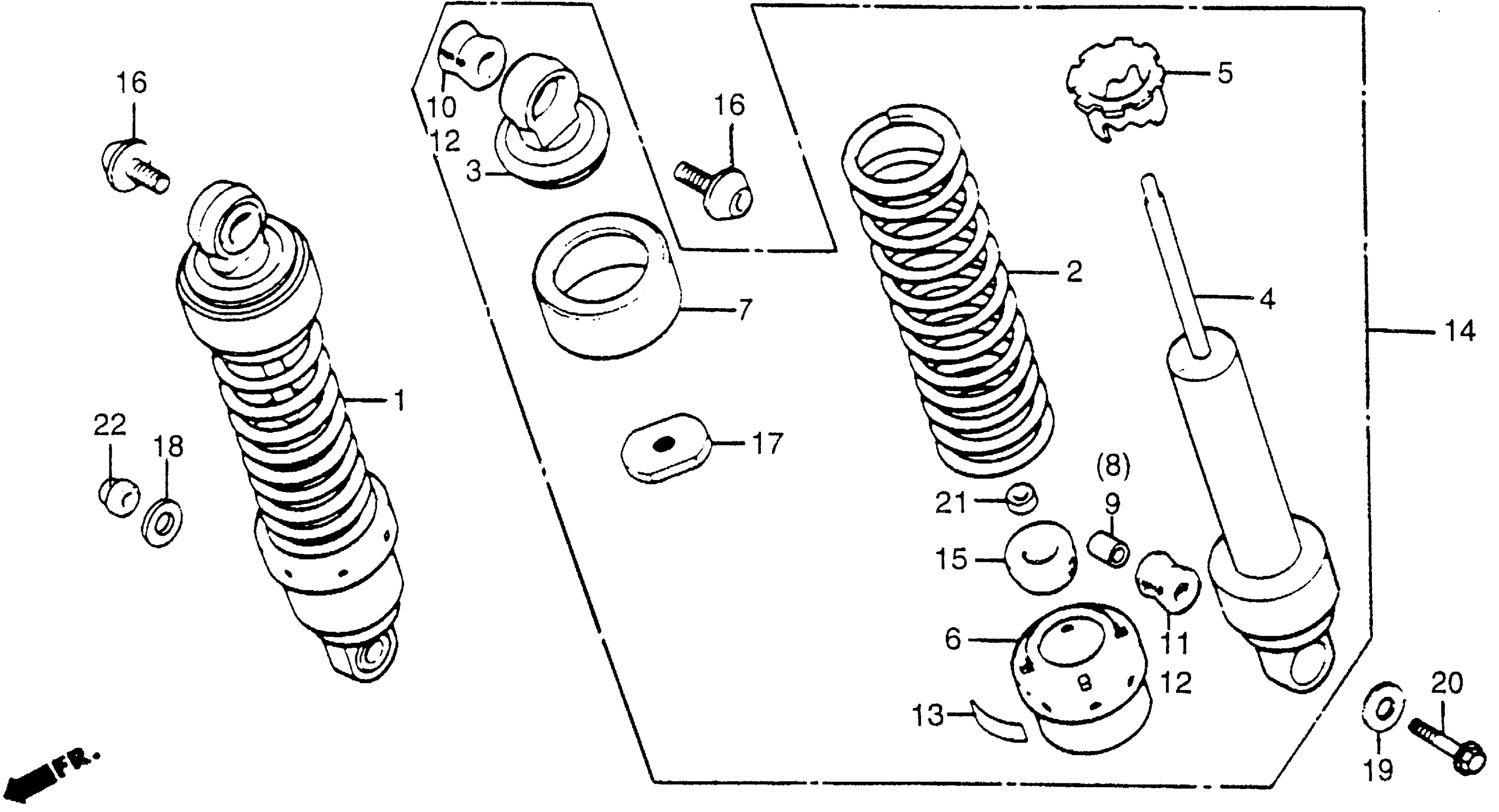

Honda VT500CA (86) SHADOW 500, JPN, VIN# JH2PC080-GM300001 REAR SHOCK ABSORBER Diagram

SHOCK ABSORBER ASSY., R. RR. (KAYABA)

52400-MF5-753

Unavailable

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)

52401-MF5-752

Unavailable

METAL, RR. SHOCK ABSORBER (UPPER)

52403-MF5-752

Unavailable

DAMPER, RR.

52410-MF5-753

Unavailable

SEAT, SPRING

52422-MF5-752

Unavailable

GUIDE, SPRING This part replaces 52458-MF5-752.

52458-MF5-753

Unavailable

COVER (UPPER)

52460-MF5-752

Unavailable

COLLAR, RR. SHOCK ABSORBER

52486-MJ1-004

Unavailable

BUSH, RR. SHOCK ABSORBER RUBBER (UPPER)

52488-MF5-752

$4.78

BUSH, RR. SHOCK ABSORBER RUBBER (LOWER) (NOT AVAILABLE)

52489-MF5-752

Unavailable

SHOCK ABSORBER ASSY., L. RR.

52500-MF5-753

Unavailable

RUBBER, STOPPER

52517-MF5-752

Unavailable

BOLT, SOCKET (8X14)

90116-MF5-000

Unavailable

NUT, LOCK

90310-MF5-752

Unavailable

WASHER, PLAIN (16MM)

90439-463-000

$1.50

WASHER (10.3MM)

90521-292-000

$3.42

BOLT, FLANGE (10X35) This part replaces 90178-MJ8-000.

95801-10035-02

$2.31

BOLT, FLANGE (10X35)

95801-10035-02

$2.31

NUT, CAP (10MM)

94021-10020-0S

$2.08
