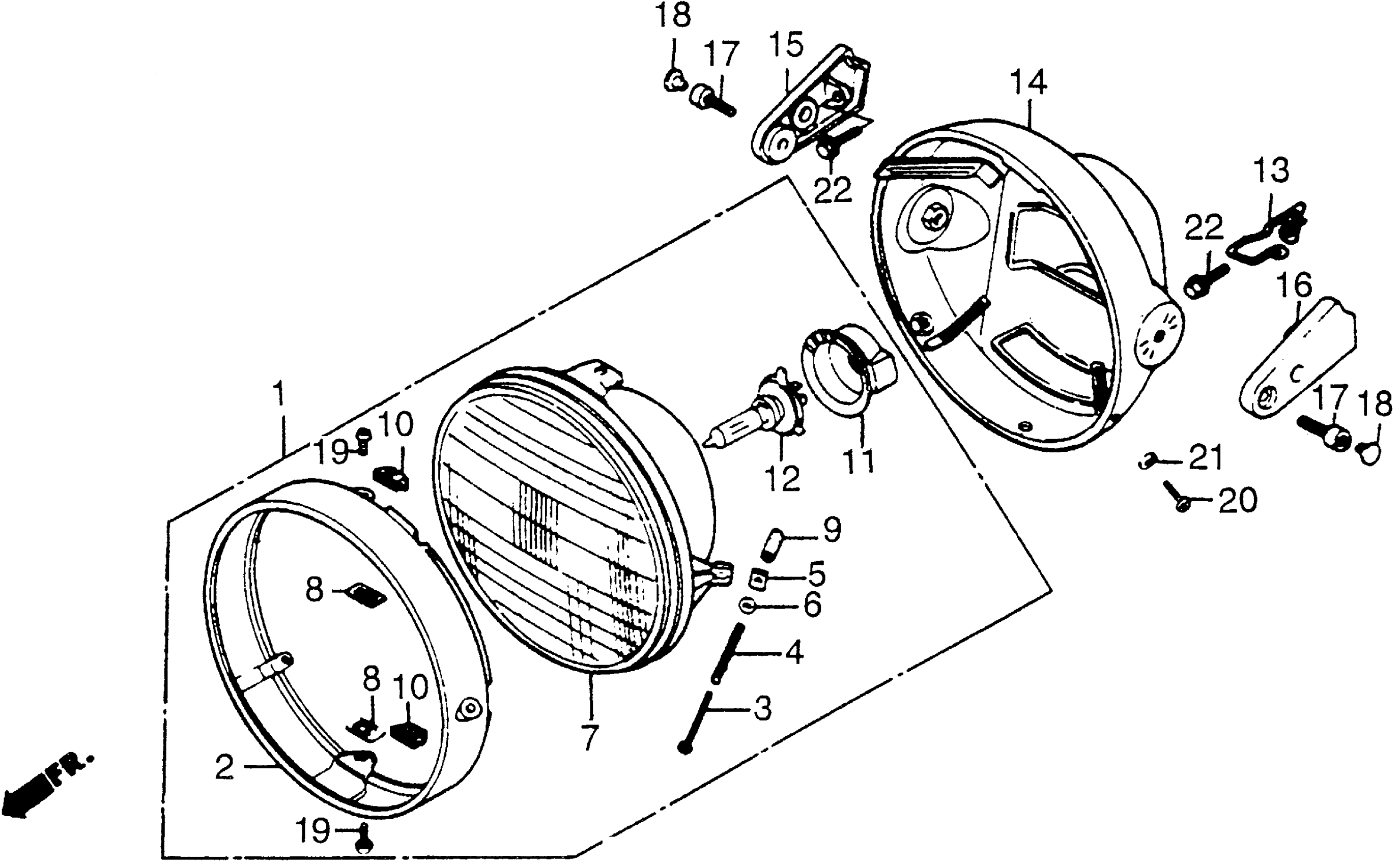

Honda VT500CA (86) SHADOW 500, JPN, VIN# JH2PC080-GM300001 HEADLIGHT 85-86 Diagram

#

Description
Price

1

HEADLIGHT ASSY. (12V 60/55W)

33100-MF5-840

Unavailable

2

RIM, HEADLIGHT

33101-MB1-003

Unavailable

3

SCREW, BEAM ADJUSTING This part replaces 33103-346-670.

33103-MW3-610

$7.90

4

SPRING, HEADLIGHT BEAM ADJUSTING

33107-300-003

$3.01

5

NUT, BEAM ADJUSTING (STANLEY)

33117-415-003

$2.23

6

WASHER, BEAM ADJUSTING

33119-371-003

$2.84

7

HEADLIGHT UNIT

33120-MF5-751

Unavailable

8

NUT, UNIT HOLDER

33128-292-670

$2.94

9

TUBE, SCREW

33136-MF5-751

Unavailable

10

COVER, BEAM ADJUSTING PIVOT

33137-MF5-841

$4.67

11

COVER, RUBBER

33180-422-003

Unavailable

12

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601.

34901-MC7-602

$37.18

12

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601AH.

34901-MC7-602

$37.18

13

GUIDE, CLUTCH CABLE

50249-MF5-750

Unavailable

14

CASE, HEADLIGHT (NOT AVAILABLE)

61301-MF5-840

Unavailable

15

STAY, R. HEADLIGHT

61312-MF5-750

Unavailable

16

STAY, L. HEADLIGHT

61313-MF5-750

$51.15

17

BOLT, SOCKET

90109-MB0-000

Unavailable

17

BOLT, SOCKET This part replaces 90157-MB1-000.

90109-MB0-000

Unavailable

18

CAP, SOCKET BOLT (10MM)

91456-MJ0-000

$4.15

19

SCREW, PAN (5X8)

93500-05008-0H

$1.49

20

SCREW, PAN (5X12)

93500-05012-0B

$1.49

21

WASHER, SPRING (5MM)

94111-05000

$1.49

22

BOLT, FLANGE (8X20) This part replaces 95700-08020-00.

95701-08020-00

$1.78

22

BOLT, FLANGE (8X20)

95701-08020-00

$1.78
