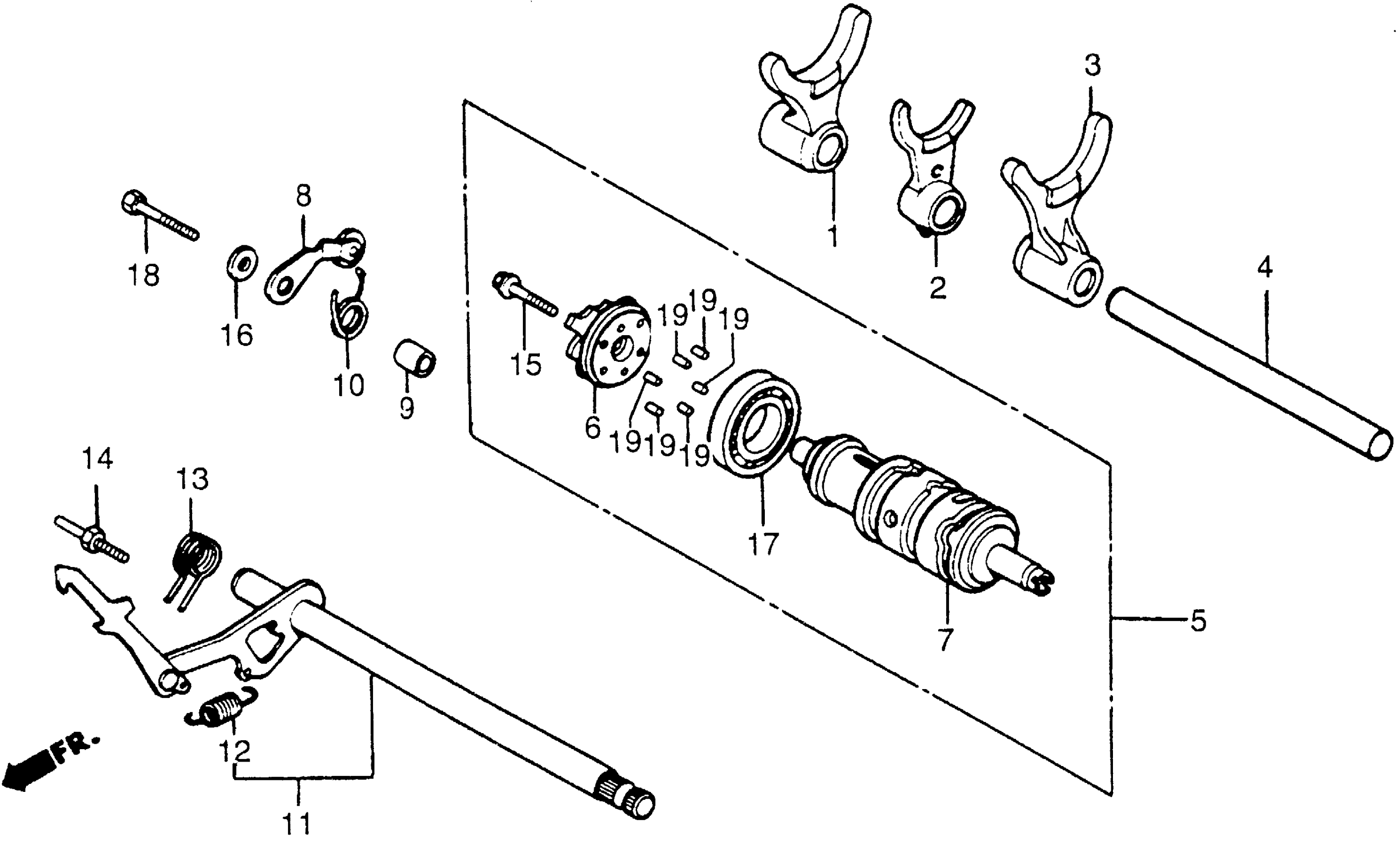

Honda VT500CA (86) SHADOW 500, JPN, VIN# JH2PC080-GM300001 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT

24211-MF5-000

Unavailable

2

FORK, CENTER GEARSHIFT

24212-MF9-700

Unavailable

3

FORK, L. GEARSHIFT

24213-MF5-000

Unavailable

4

GUIDE, GEARSHIFT FORK

24261-MF5-000

Unavailable

5

DRUM, GEARSHIFT FORK

24300-MF5-000

Unavailable

6

PLATE, GEARSHIFT CAM (NOT AVAILABLE)

24301-MF5-300

Unavailable

7

DRUM, GEARSHIFT

24302-MF5-000

Unavailable

8

STOPPER, GEARSHIFT DRUM

24430-MF5-000

$20.99

9

COLLAR, GEARSHIFT DRUM STOPPER

24432-413-000

$7.44

10

SPRING, GEARSHIFT DRUM STOPPER

24435-MF5-000

Unavailable

11

ARM, GEARSHIFT (NOT AVAILABLE)

24610-MF5-000

Unavailable

12

SPRING, GEARSHIFT ARM

24641-216-000

$2.46

13

SPRING, GEARSHIFT RETURN This part replaces 24651-MB0-000.

24651-MB0-010

$6.80

14

PIN, SHIFT RETURN SPRING

24652-259-000

$4.52

15

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable

15

BOLT, FLANGE (6X22) This part replaces 95722-06022-00.

95701-06022-00

Unavailable

16

WASHER, SHIFT DRUM STOPPER

90487-MB0-000

$3.10

17

BEARING, BALL (16005) (NTN)

91008-374-003

$13.49

18

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.48

18

BOLT, HEX. (6X25)

92101-06025-0A

$1.48

19

ROLLER (4X11.8)

96220-40118

$0.48
