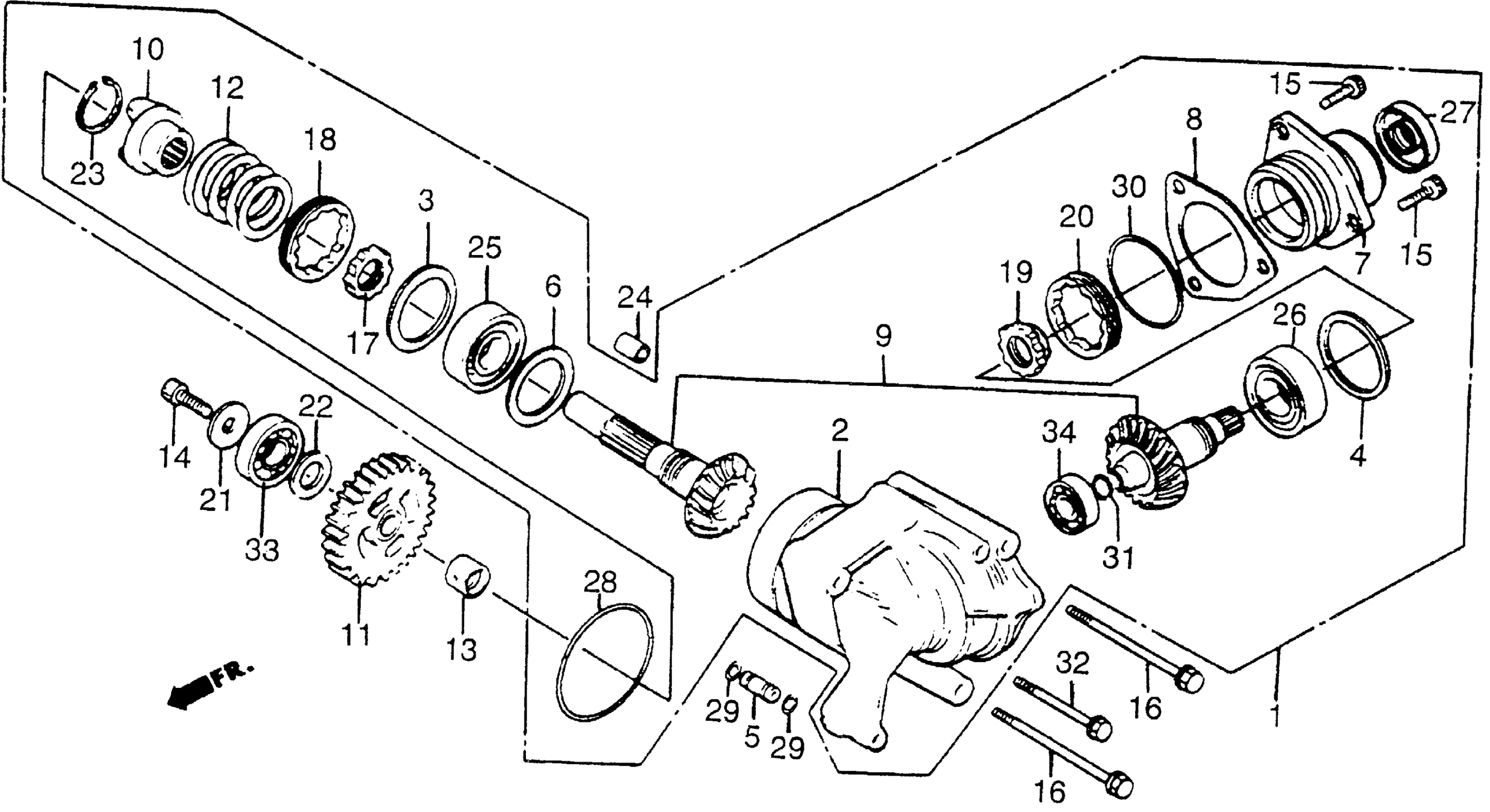

Honda VT500CA (86) SHADOW 500, JPN, VIN# JH2PC080-GM300001 CROSS SHAFT Diagram

#

Description
Price

1

CASE ASSY., SIDE GEAR

21100-MF5-000

Unavailable

2

CASE, SIDE GEAR

21200-MF5-000

Unavailable

3

SPRING A, LOCK NUT

21210-MF5-003

Unavailable

4

SPRING B, LOCK NUT

21211-MF5-003

Unavailable

5

ORIFICE, SIDE GEAR CASE

21215-ME9-000

$8.75

6

SHIM, FINAL DRIVESHAFT (0.80)

21331-MF5-000

Unavailable

6

SHIM, FINAL DRIVESHAFT (0.85)

21332-MF5-000

Unavailable

6

SHIM, FINAL DRIVESHAFT (0.90)

21333-MF5-000

Unavailable

6

SHIM, FINAL DRIVESHAFT (0.95)

21334-MF5-000

Unavailable

6

SHIM, FINAL DRIVESHAFT (1.00)

21335-MF5-000

Unavailable

6

SHIM, FINAL DRIVESHAFT (1.05)

21336-MF5-000

Unavailable

6

SHIM, FINAL DRIVESHAFT (1.10)

21337-MF5-000

Unavailable

7

HOLDER, CROSS SHAFT BEARING

21371-ME5-010

Unavailable

8

SHIM, CROSS SHAFT (0.2)

21381-ME5-000

Unavailable

8

SHIM, CROSS SHAFT (0.25)

21382-ME5-000

Unavailable

8

SHIM, CROSS SHAFT (0.3) (NOT AVAILABLE)

21383-ME5-000

Unavailable

8

SHIM, CROSS SHAFT (0.35)

21384-ME5-000

Unavailable

8

SHIM, CROSS SHAFT (0.4)

21385-ME5-000

Unavailable

9

SHAFT SET, FINAL DRIVE

23200-MF5-000

Unavailable

10

LIFTER, DAMPER

23721-ME9-000

$69.51

11

GEAR, DAMPER SHAFT (31T)

23726-MF5-000

Unavailable

12

SPRING, DAMPER

23732-MF5-000

Unavailable

13

COLLAR (20X24X18.5)

23733-ME9-000

Unavailable

14

BOLT, SPECIAL (10MM)

90037-ME9-000

$6.59

15

BOLT, SOCKET (8X22)

96700-08022-17

$1.84

16

BOLT, FLANGE (8X95)

90067-MC7-000

Unavailable

17

NUT, LOCK (30MM)

90241-MB0-000

$18.94

18

NUT, LOCK (64MM)

90242-MB0-000

$29.19

19

NUT, LOCK (28MM)

90243-ME5-000

Unavailable

20

NUT, LOCK (60MM)

90244-MF5-000

Unavailable

21

WASHER (10MM)

90409-952-000

$2.17

22

WASHER A, THRUST (20MM)

90451-704-000

$2.91

23

CIRCLIP (OUTER) (28MM)

90602-463-000

$3.32

24

PIN, DOWEL (10X26)

90711-MF5-000

Unavailable

25

BEARING, RADIAL BALL (5206) This part replaces 91012-MB0-003.

91012-MG7-003

$86.71

25

BEARING, RADIAL BALL (5206)

91012-MG7-003

$86.71

26

BEARING, RADIAL BALL (6228)

91015-MF5-003

Unavailable

27

OIL SEAL (25X61X8.5) (ARAI)

91205-ME5-003

Unavailable

28

O-RING (72X1.9)

91305-MF5-003

$8.06

29

O-RING (4.8X1.9) (NOK) O-RING (7.7X2.3) (ARAI) This part replaces 91307-422-000.

91313-MA6-005

$2.38

29

O-RING (4.8X1.9) (NOK)

91313-MA6-005

$2.38

30

O-RING (69.5X3) (ARAI)

91314-MG7-003

$8.30

30

O-RING (69.5X3) (ARAI) This part replaces 91314-MJ0-000.

91314-MG7-003

$8.30

30

O-RING (69.5X3) (ARAI) This part replaces 91314-300-000.

91314-MG7-003

$8.30

31

CLIP, PISTON PIN (13MM)

94601-13000

$0.49

32

BOLT, FLANGE (8X55) This part replaces 95700-08055-00.

95701-08055-00

$2.23

32

BOLT, FLANGE (8X55)

95701-08055-00

$2.23

33

BEARING, RADIAL BALL (6204)

96100-62040-00

$10.98

34

BEARING, RADIAL BALL (6302)

96100-63020-00

$8.00
