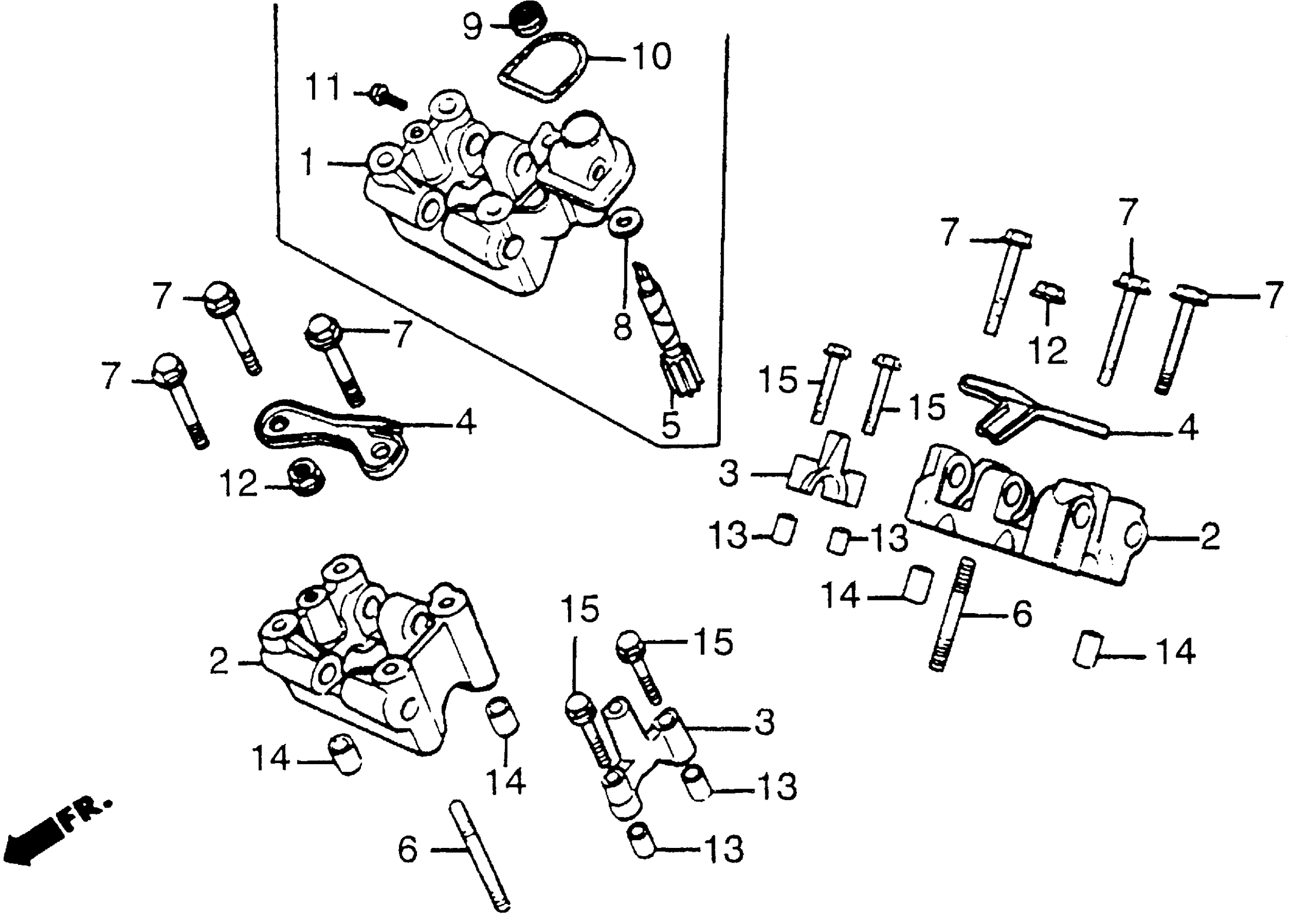

Honda VT500CA (86) SHADOW 500, JPN, VIN# JH2PC080-GM300001 CAMSHAFT HOLDER Diagram

#

Description

Price

2

HOLDER, RR. CAMSHAFT This part replaces 12223-MF5-010.

12223-MF5-030

Unavailable

2

HOLDER, RR. CAMSHAFT This part replaces 12223-MF5-020.

12223-MF5-030

Unavailable

2

HOLDER, RR. CAMSHAFT

12223-MF5-030

Unavailable

3

HOLDER, SIDE CAMSHAFT

12225-MF5-000

$53.10

4

PLATE, VALVE OIL GUIDE

12226-MF5-000

$20.05

6

BOLT, STUD (8X50)

90013-MF5-000

$4.97

7

BOLT, FLANGE (8X68)

90066-MC7-000

$4.05

12

NUT, FLANGE (8MM)

94050-08080

$1.49

13

PIN, DOWEL (8X14)

94301-08140

$2.25

14

PIN, DOWEL (10X16)

94301-10160

$2.28

15

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

15

BOLT, FLANGE (6X40)

96001-06040-00

$2.16
