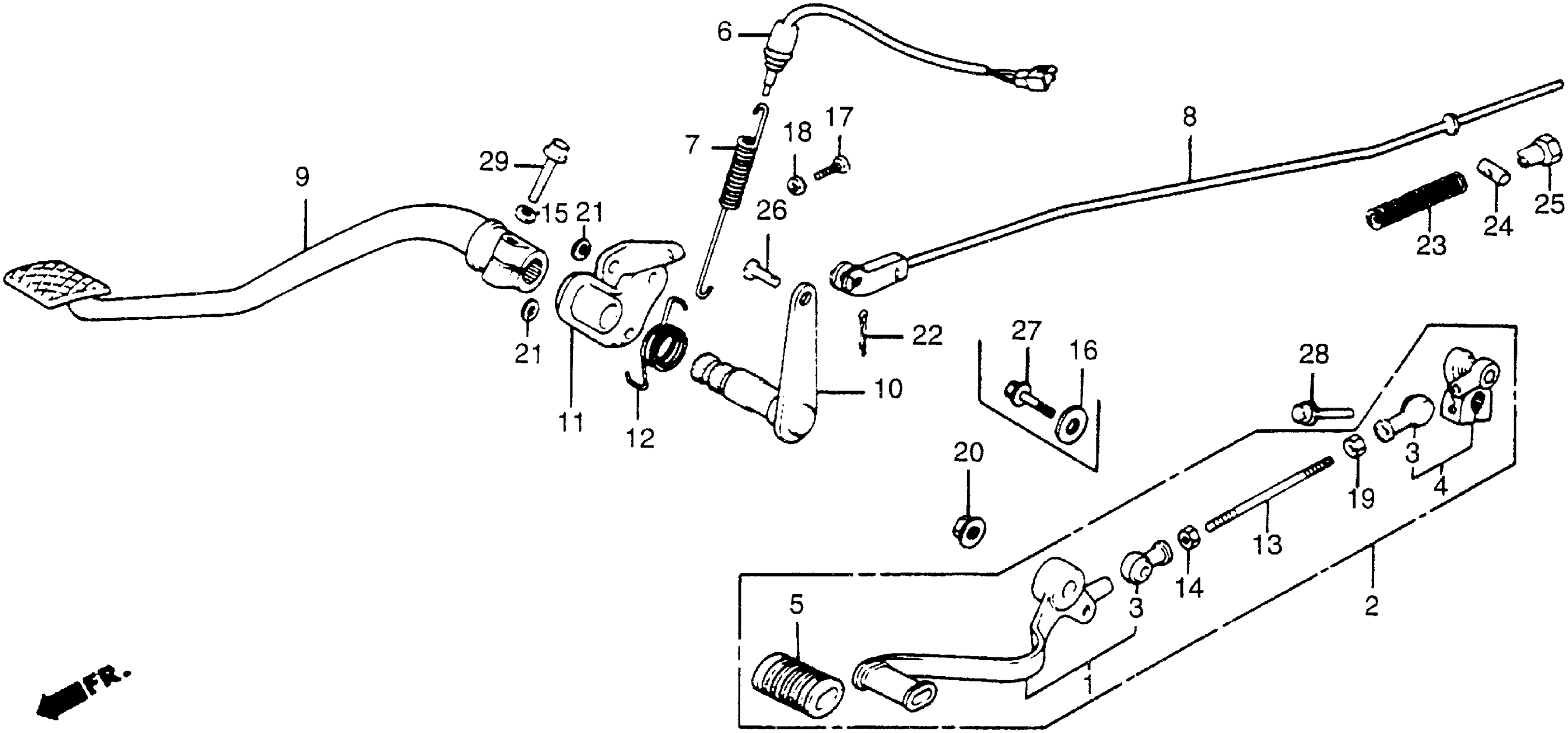

Honda VT500CA (84) SHADOW 500, JPN, VIN# JH2PC080-EM100006 TO JH2PC080-EM108402 VT500C BRAKE PEDAL + GEARSHIFT PEDAL Diagram

#

Description
Price

1

PEDAL, GEARSHIFT (NOT AVAILABLE)

24715-MF5-000

Unavailable

2

PEDAL ASSY., GEARSHIFT

24720-MF5-000

Unavailable

3

COVER, DUST

24724-422-000

$6.68

4

ARM, CHANGE

24725-MF5-000

Unavailable

5

RUBBER, CHANGE PEDAL

24781-371-000

$5.13

6

SWITCH ASSY., RR. STOP

35350-ME9-405

Unavailable

6

SWITCH ASSY., RR. STOP This part replaces 35350-MF5-770.

35350-ME9-405

Unavailable

7

SPRING, STOP SWITCH

35357-167-000

Unavailable

8

ROD, RR. BRAKE

43451-MF5-000

Unavailable

9

PEDAL, RR. BRAKE

46500-MF5-000

Unavailable

10

SPINDLE, RR. BRAKE

46511-MF5-000

Unavailable

11

HOLDER, BRAKE PEDAL

46512-MF5-000

Unavailable

12

SPRING, BRAKE RETURN (NOT AVAILABLE)

46514-MF5-000

Unavailable

13

BOLT, TIE ROD This part replaces 90065-MF5-000.

90065-MN0-000

Unavailable

14

NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)

90201-700-000

$1.49

15

WASHER (8MM)

90471-435-770

Unavailable

16

WASHER, CHAIN CASE SETTING

90504-124-000

Unavailable

17

BOLT, HEX. (6X20) This part replaces 92020-06020-08.

92220-06020-0H

Unavailable

17

BOLT, HEX. (6X20)

92220-06020-0H

Unavailable

18

NUT, HEX. (6MM)

94002-06000-0S

$1.49

19

NUT, HEX. (6MM)

94002-06020-0S

$1.49

21

WASHER, PLAIN (8MM)

94101-08700

$1.49

22

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

22

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

22

PIN, SPLIT (2.0X22)

94201-20220

$1.49

22

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

22

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

22

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

22

PIN, SPLIT (2.0X35)

94201-20350

$1.49

22

PIN, COTTER (2.0X22)

94201-29220

$1.49

23

SPRING A, BRAKE ROD

95014-73100

$1.49

24

JOINT B, BRAKE ARM

95015-32001

$1.49

25

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

26

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

27

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

27

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

28

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

28

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

29

BOLT, FLANGE (8X25) This part replaces 95700-08025-00.

95701-08025-00

$1.79

29

BOLT, FLANGE (8X25)

95701-08025-00

$1.79
