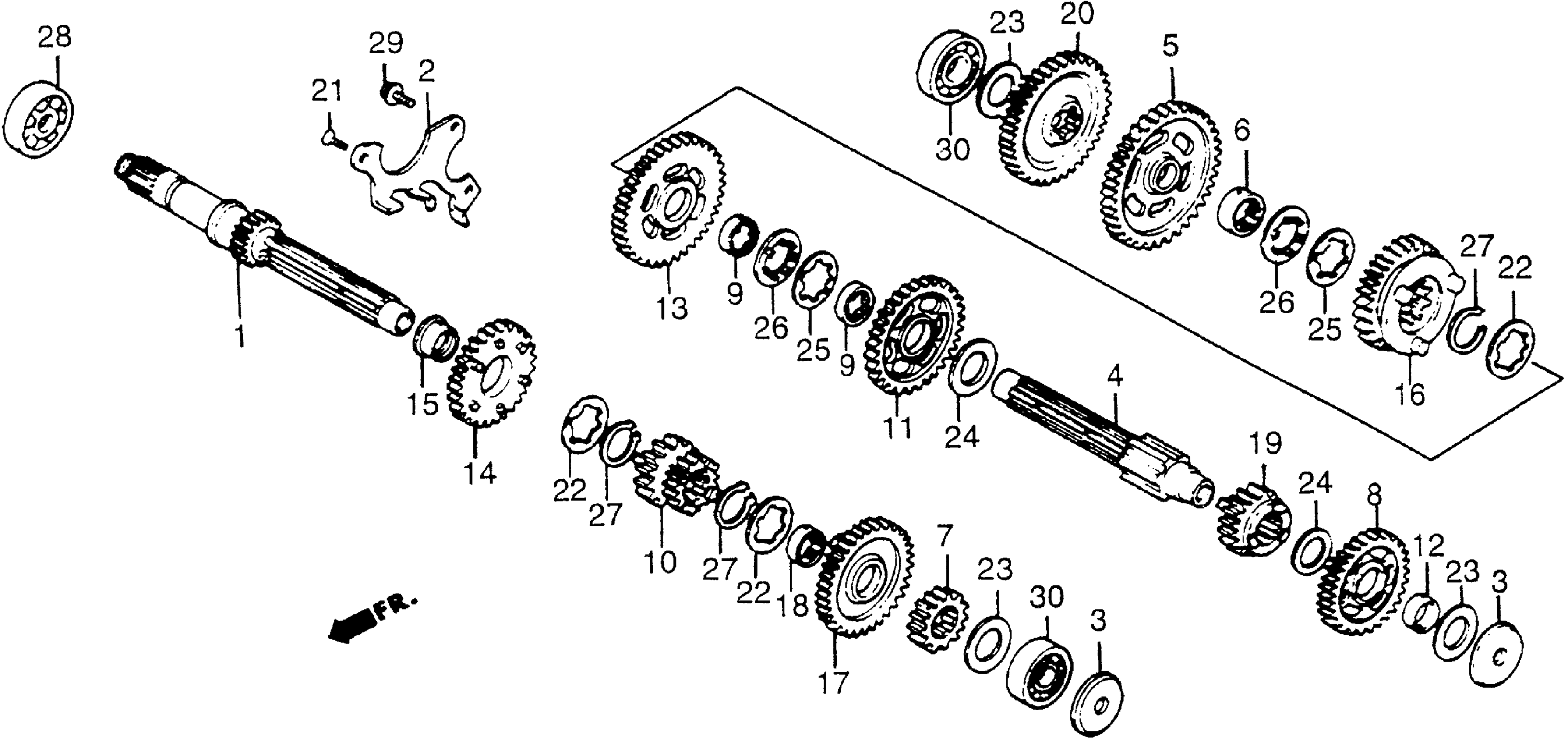

Honda VT500CA (84) SHADOW 500, JPN, VIN# JH2PC080-EM100006 TO JH2PC080-EM108402 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION

23211-MF5-000

Unavailable

2

PLATE, BEARING SETTING

23212-MF5-000

Unavailable

3

PLATE, OIL GUIDE

23219-MF5-000

$4.87

4

COUNTERSHAFT, TRANSMISSION

23220-MF5-000

Unavailable

5

GEAR, COUNTERSHAFT FIRST (40T)

23421-MF5-000

Unavailable

6

COLLAR, SPLINE (25X28X10.8)

23422-ME9-000

Unavailable

7

GEAR, MAINSHAFT SECOND (19T) (NOT AVAILABLE)

23431-MC0-000

Unavailable

8

GEAR, COUNTERSHAFT SECOND (37T)

23441-MF5-000

Unavailable

9

BUSH (25MM)

23442-MF5-000

Unavailable

10

GEAR, MAINSHAFT THIRD & FOURTH (22T,25T)

23451-MF5-000

Unavailable

11

GEAR, COUNTERSHAFT THIRD (34T)

23461-MF5-000

Unavailable

12

COLLAR, SPLINE (25X8)

23462-KE8-000

Unavailable

13

GEAR, COUNTERSHAFT FOURTH (32T)

23481-MF5-000

Unavailable

14

GEAR, MAINSHAFT FIFTH (27T)

23491-MF5-000

Unavailable

15

BUSH (25MM)

23492-MF5-000

Unavailable

16

GEAR, COUNTERSHAFT FIFTH (29T)

23501-MF5-000

Unavailable

17

GEAR, MAINSHAFT TOP (30T)

23511-MF5-000

Unavailable

18

BUSH, SPLINE (28MM)

23512-MF5-000

Unavailable

19

GEAR, COUNTERSHAFT TOP (26T) This part replaces 23521-MF5-000.

23521-MF5-010

Unavailable

19

GEAR, COUNTERSHAFT TOP (26T)

23521-MF5-010

Unavailable

20

GEAR, FINAL DRIVE (34T)

23725-MF5-000

Unavailable

21

SCREW, FLAT (6X16)

90022-ME9-000

$2.30

22

WASHER, THRUST (25MM)

90451-413-000

$3.26

23

WASHER A, THRUST (20MM)

90451-704-000

$3.20

24

WASHER, THRUST (25MM)

90456-MA6-000

$2.53

25

WASHER B, THRUST (25MM)

90461-286-000

Unavailable

26

WASHER, LOCK (25MM)

90462-323-000

$3.77

27

CIRCLIP (OUTER) (25MM)

90601-300-000

$3.83

28

BEARING, RADIAL BALL (63/22) (NOT AVAILABLE) This part replaces 91007-393-003.

91007-438-003

Unavailable

29

BOLT, FLANGE (6X14) This part replaces 95700-06014-00.

95701-06014-00

$1.49

29

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

30

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22
