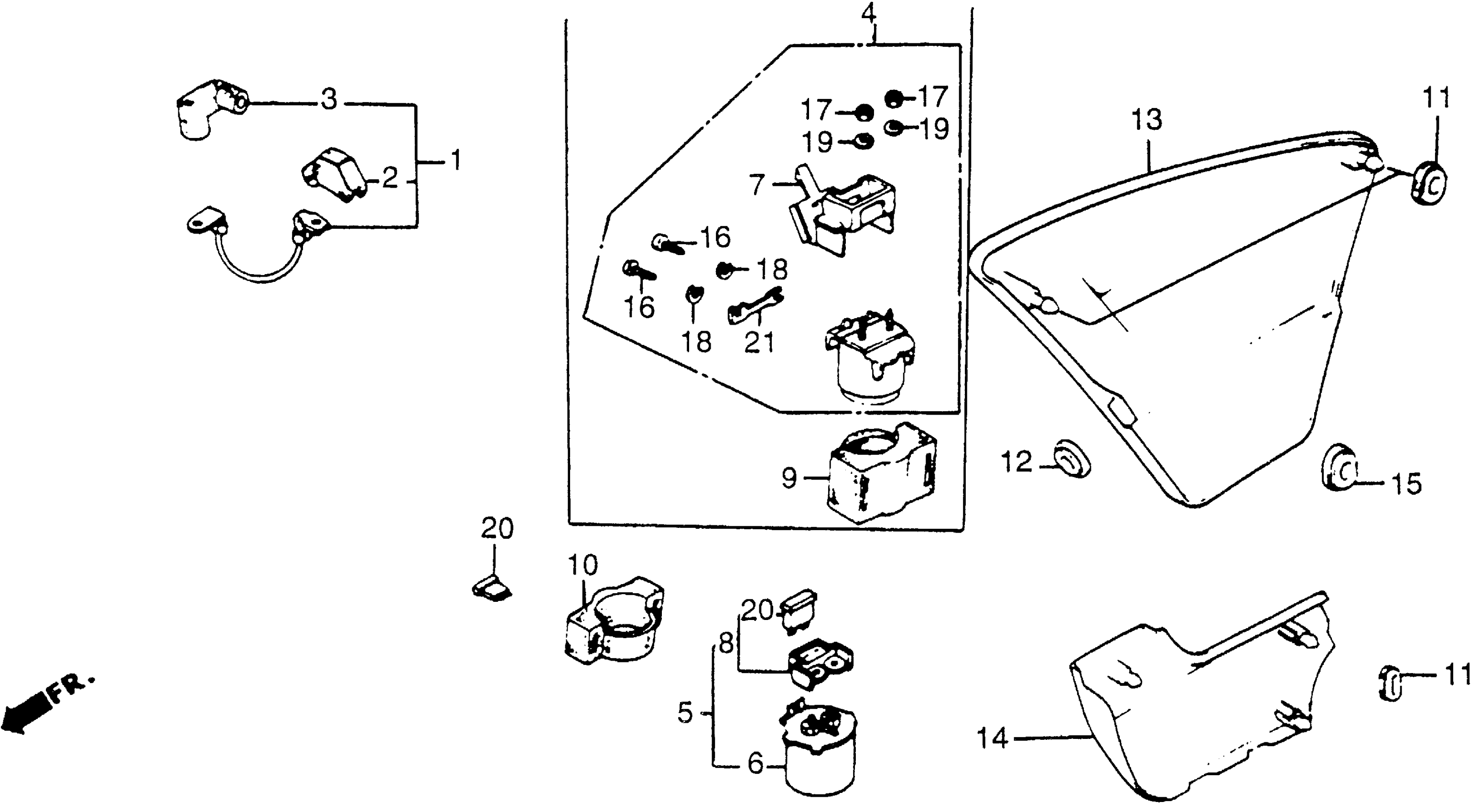

Honda VT500CA (84) SHADOW 500, JPN, VIN# JH2PC080-EM100006 TO JH2PC080-EM108402 RIGHT SIDE COVER Diagram

CABLE, STARTER BATTERY (NOT AVAILABLE)

32401-MF5-000

Unavailable

COVER A, BATTERY

32412-MF5-000

Unavailable

COVER A, MAGNETIC SWITCH

32415-MF5-000

Unavailable

SWITCH ASSY., STARTER MAGNETIC

35850-MB0-007

$131.64

COVER, FUSE

35852-MB0-007

Unavailable

RUBBER, SHOCK ABSORBER

35856-MB0-007

Unavailable

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

GROMMET, SIDE COVER

83551-376-000

$2.97

COVER SET, R. SIDE *R130CU* (CANDY SCORPIO RED)

836A0-MF5-770ZA

Unavailable

COVER SET, R. SIDE *NH1Z* (BLACK-Z)

836A0-MF5-770ZB

Unavailable

RUBBER, SIDE COVER

83601-MF5-000

Unavailable

SCREW, PAN (4X6)

93500-04006-0H

$1.49

SCREW, PAN (4X6) This part replaces 93500-04006-1H.

93500-04006-0H

$1.49

NUT, HEX. (6MM)

94002-06080-0S

$1.49

NUT, HEX. (6MM) This part replaces 94002-06080-00.

94002-06080-0S

$1.49

WASHER, SPRING (4MM)

94111-04800

$1.49

WASHER, SPRING (6MM)

94111-06800

$1.49

FUSE F (30A)

98200-53000

$1.49
