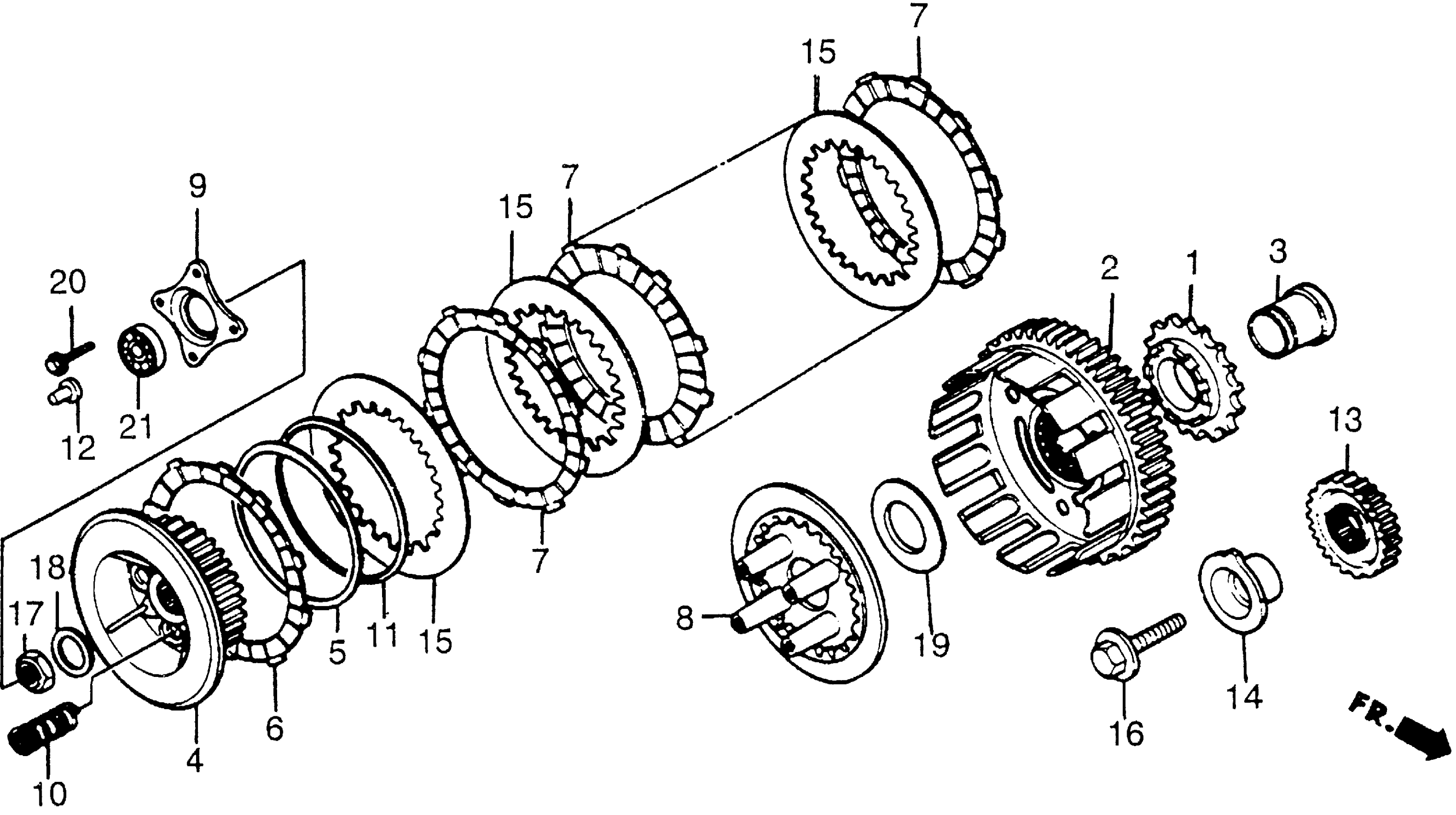

Honda VT500CA (84) SHADOW 500, JPN, VIN# JH2PC080-EM100006 TO JH2PC080-EM108402 CLUTCH Diagram

#

Description
Price

1

SPROCKET, OIL PUMP DRIVE

15131-MF5-000

Unavailable

2

CLUTCH (OUTER) (NOT AVAILABLE)

22100-MF5-000

Unavailable

3

COLLAR, PRIMARY DRIVEN

22116-MF5-000

$49.72

4

CENTER, CLUTCH This part replaces 22120-MF5-000.

22120-MF5-010

Unavailable

4

CENTER, CLUTCH

22120-MF5-010

Unavailable

5

SEAT, JUDDER SPRING

22125-435-000

$9.15

6

DISK B, CLUTCH FRICTION This part replaces 22201-302-000.

22202-ML4-611

$18.13

6

DISK B, CLUTCH FRICTION This part replaces 22202-ML4-610.

22202-ML4-611

$18.13

6

DISK B, CLUTCH FRICTION

22202-ML4-611

$18.13

7

DISK, CLUTCH FRICTION

22201-ML4-610

$16.40

7

DISK, CLUTCH FRICTION This part replaces 22201-377-000.

22201-ML4-610

$16.40

8

PLATE, CLUTCH PRESSURE

22350-KW0-000

Unavailable

8

PLATE, CLUTCH PRESSURE This part replaces 22350-MC4-000.

22350-KW0-000

Unavailable

9

PLATE, CLUTCH LIFTER This part replaces 22361-MF5-000.

22361-MR1-000

$21.17

9

PLATE, CLUTCH LIFTER

22361-MR1-000

$21.17

10

SPRING, CLUTCH

22401-414-000

Unavailable

11

SPRING, JUDDER

22402-435-000

$34.37

12

ROD, CLUTCH LIFTER

22847-415-000

$7.18

13

GEAR, PRIMARY DRIVE

23103-MF5-000

Unavailable

14

PLATE, PULSER

23105-MF5-000

Unavailable

15

PLATE A, CLUTCH

23311-413-000

$11.30

16

BOLT, UBS (12X28)

90013-415-000

$11.49

17

NUT, LOCK (18MM)

90235-429-000

Unavailable

18

WASHER, LOCK

90432-428-000

$7.57

19

WASHER, THRUST (22MM)

90452-471-000

$4.76

20

BOLT, FLANGE (6X25)

95725-06025-00

Unavailable

20

BOLT, FLANGE (6X25) This part replaces 95923-06025-00.

95725-06025-00

Unavailable

21

BEARING, RADIAL BALL (6001)

96100-60010-00

$17.13
