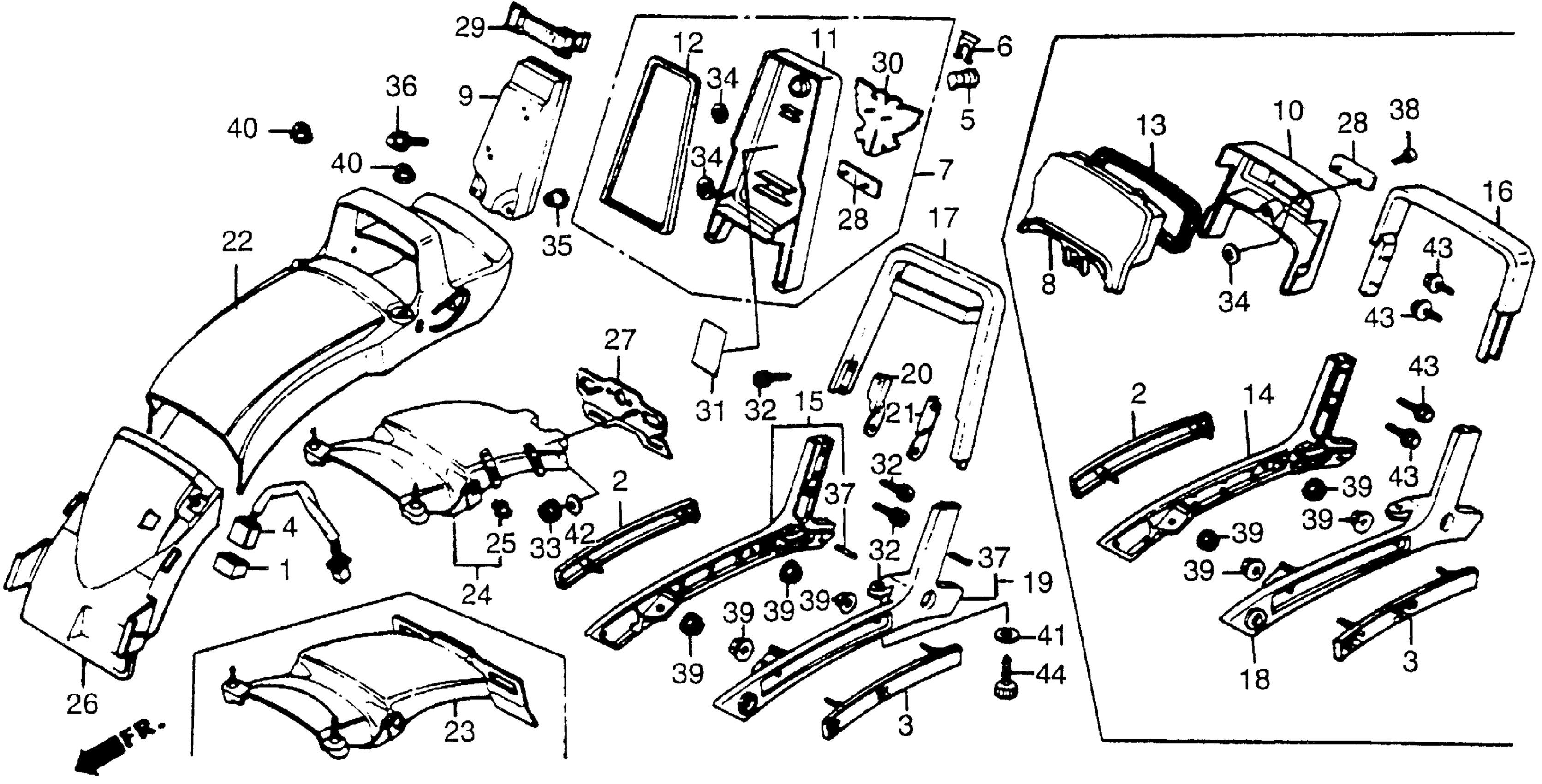

Honda VT500CA (83) SHADOW 500, JPN, VIN# JH2PC080-DM000047 TO JH2PC080-DM017849 VT500C REAR FENDER Diagram

SUSPENSION, STOP & TAIL SENSOR

17235-MF5-000

Unavailable

REFLECTOR, R. RR. REFLEX

33742-MB1-671

Unavailable

REFLECTOR, L. RR. REFLEX (NOT AVAILABLE)

33743-MB1-671

Unavailable

SENSOR, STOP & TAIL

35550-MF5-670

Unavailable

COVER B, RR.

77211-MF5-000

Unavailable

COVER A, RR.

77212-MF5-000

Unavailable

RUBBER, RR. COVER

77221-MF5-300

Unavailable

GRAB RAIL, R.

77341-MF5-000

Unavailable

GRAB RAIL B

77342-MF5-000

Unavailable

GRAB RAIL, L.

77343-MF5-000

Unavailable

FENDER A, RR. *R114CU* (CANDY WINE BERRY RED-U)

80100-MF5-000ZA

Unavailable

FENDER A, RR. *NH1Z* (BLACK-Z) (NOT AVAILABLE)

80100-MF5-000ZB

Unavailable

PATCH, RR. FENDER This part replaces 80101-MF5-670.

80101-MF5-671

Unavailable

PATCH, RR. FENDER

80101-MF5-671

Unavailable

FENDER B, RR.

80105-MF5-000

Unavailable

NUT, FLANGE (6MM)

94050-06000

$1.49

NUT, FLANGE (8MM)

94050-08080

$1.49

BOLT, FLANGE (6X16) This part replaces 95700-06016-08.

95701-06016-08

$1.49

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

BOLT, FLANGE (6X16) This part replaces 95900-06016-08.

95701-06016-08

$1.49
